TRANSMISSION ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

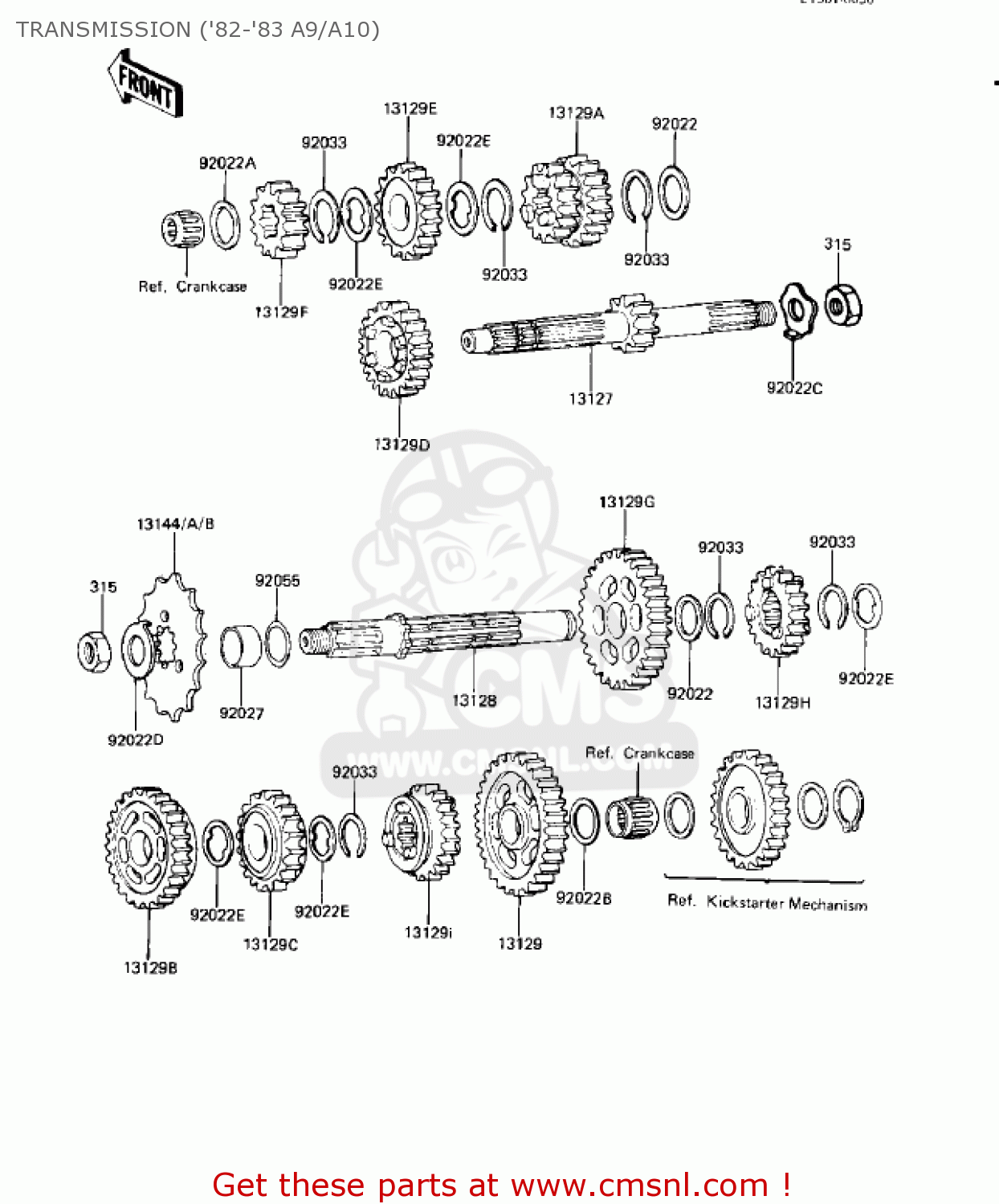

Transmission ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
TRANSMISSION ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
13127045
ref: 13127
SHAFT,DRIVE,10T
€ 97.00
13128
13128040
ref: 13128
SHAFT-TRANSMISSION OU
€ 108.50
13129
13129050
ref: 13129
GEAR,OUTPUT LOW,26T
€ 38.00
13129A
131291010
ref: 13129A
GEAR,INPUT 3RD&4TH,16
€ 86.50
13129B
131291011
ref: 13129B
GEAR,OUTPUT 3RD,20T
€ 26.00
13129C
131291015
ref: 13129C
GEAR,OUTPUT 4TH,23T
€ 72.50
13129D
131291018
ref: 13129D
5TH GEAR, DRIVE SHAFT
€ 50.50
13129E
131291021
ref: 13129E
GEAR,INPUT TOP,20T
€ 57.00
13129F
13130036
ref: 13129F
2ND GEAR,DRIVE SHAFT
€ 25.00
13129G
13131043
ref: 13129G
2ND GEAR,OUTPUT SHFT
€ 47.00
13129H
13137043
ref: 13129H
GEAR,OUTPUT TOP,16T
€ 54.50
13129I
13248003
ref: 13129I
5TH GEAR, OUTPUT
€ 42.00
13144
13144053
ref: 13144
(OPTION)
SPROCKET-OUTPUT,13T
€ 30.00
13144A
13144054
ref: 13144A
(OPTION)
SPROCKET-OUTPUT,15T
€ 30.00
13144B
131441058
ref: 13144B
SPROCKET-OUTPUT,14T
€ 20.00
92022
92022271
ref: 92022
WASHER,PLAIN
€ 3.50
92022A
92022272
ref: 92022A
WASHER,PLAIN
€ 6.00
92022B
92022273
ref: 92022B
WASHER,14.3X24X1
€ 6.00
92022C
92024046
ref: 92022C
WASHER,LOCK,14MM
€ 2.00
92022D
92024052
ref: 92022D
WASHER,CLAW,14.3X32X1
€ 3.50
92022E
92024055
ref: 92022E
WASHER,TOOTHED,18.5X2
€ 2.50
92027
920271077
ref: 92027
COLLAR,20X25X12.5
€ 14.00
92033
92033028
ref: 92033
CIRCLIP
€ 6.00
92055
92055022
ref: 92055
'O' RING
€ 4.00
315
315B1400
ref: 315
NUT,14MM
€ 1.00
