FRONT FORK (KE125-A9)
KE125-A7 KE125 1980 USA CANADA

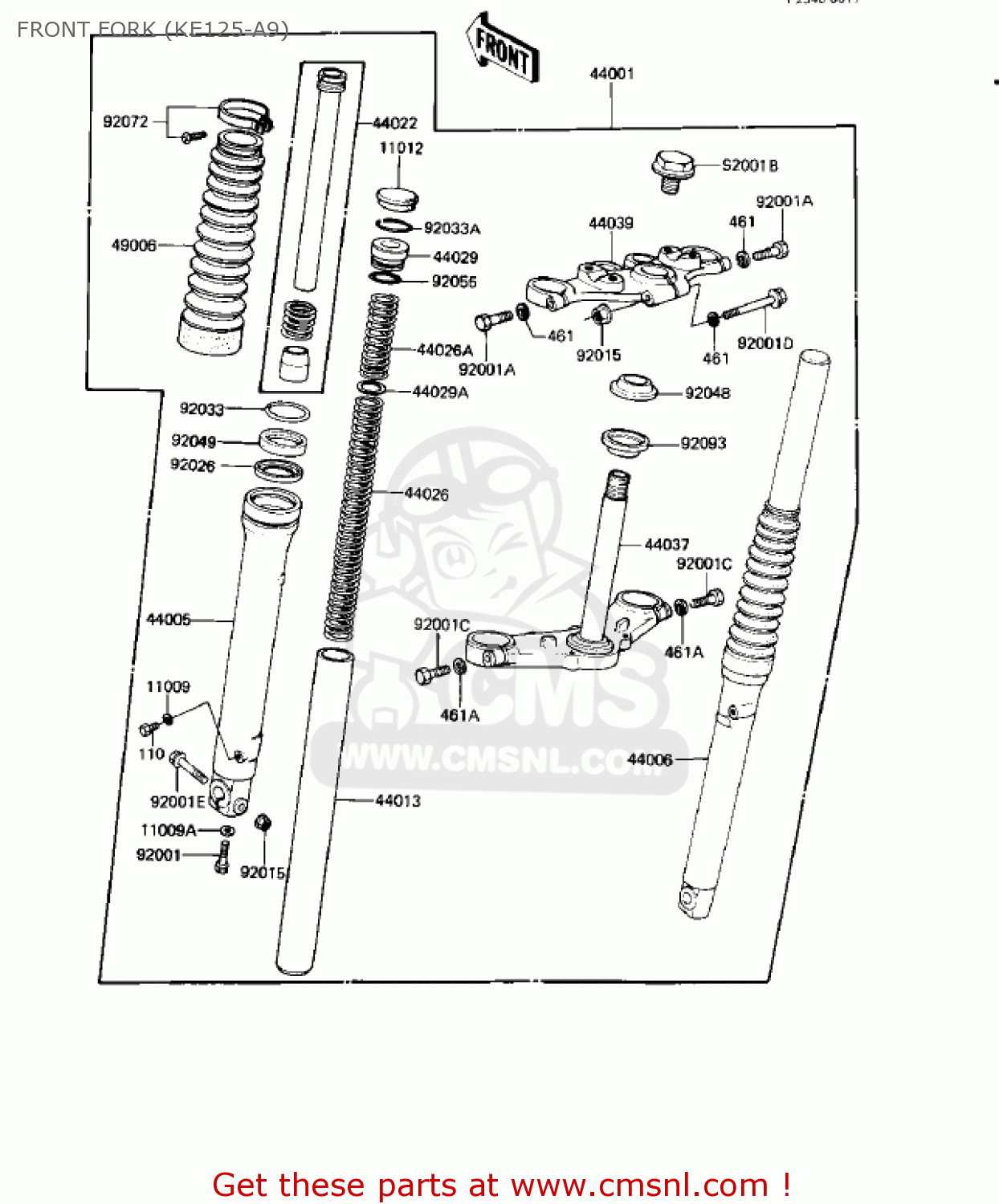

Front fork (ke125-a9) diagram KE125-A7 KE125 1980 USA CANADA
FRONT FORK (KE125-A9) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045047
ref: 11009
GASKET,DRAIN PLUG (NAS)
€ 6.00
11009A
44045051
ref: 11009A
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121124
ref: 11012
CAP,FORK
€ 6.00
44001
4400112976Z
ref: 44001
FORK-FRONT,BLACK
€ 631.00
44005
440051074
ref: 44005
PIPE-LEFT FORK OUTER
€ 110.50
44006
440061074
ref: 44006
PIPE-RIGHT FORK OUTER
€ 110.50
44013
440131069
ref: 44013
PIPE-FORK INNER
€ 100.50
44022
440221065
ref: 44022
CYLINDER-FORK
€ 46.50
44026
440261119
ref: 44026
SPRING-FRONT FORK
€ 24.50
44026A
440261137
ref: 44026A
SPRING-FRONT FORK,UPP
€ 8.50
44029
44029022
ref: 44029
GUIDE, FORK SPRING
€ 8.00
44029A
440291033
ref: 44029A
SEAT-FORK SPRING
€ 6.50
44037
440371078
ref: 44037
HOLDER-FORK UNDER
€ 148.00
44039
440391048
ref: 44039
HOLDER-FORK UPPER
€ 90.50
49006
4900610476Z
ref: 49006
BOOT,FR FORK,BLACK
€ 29.00
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011063
ref: 92001A
BOLT,HEX HEAD,8X40
€ 6.50
92001B
920011741
ref: 92001B
BOLT,STEERING STEM HD
€ 6.50
92001C
920011252
ref: 92001C
BOLT,HEX HEAD,10X35
€ 3.50
92001E
920011486
ref: 92001E
BOLT,FLANGED,8X50
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92026
920261099
ref: 92026
SPACER,FORK OUTER
€ 7.00
92033
44044020
ref: 92033
CIRCLIP,45MM
€ 9.50
92033A
44044023
ref: 92033A
CIRCLIP
€ 3.50
92048
92047010
ref: 92048
CONE-STERNG BERG LOW
€ 10.00
92049
920491080
ref: 92049
SEAL-OIL FORK OUTER
€ 14.00
92055
44046025
ref: 92055
'O' RING, FORK
€ 4.00
92072
920721038
ref: 92072
BAND,BOOT
€ 8.50
92093
44010027
ref: 92093
SEAL,STEERING STEM
€ 7.50
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
€ 0.50
