FRONT FORK ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

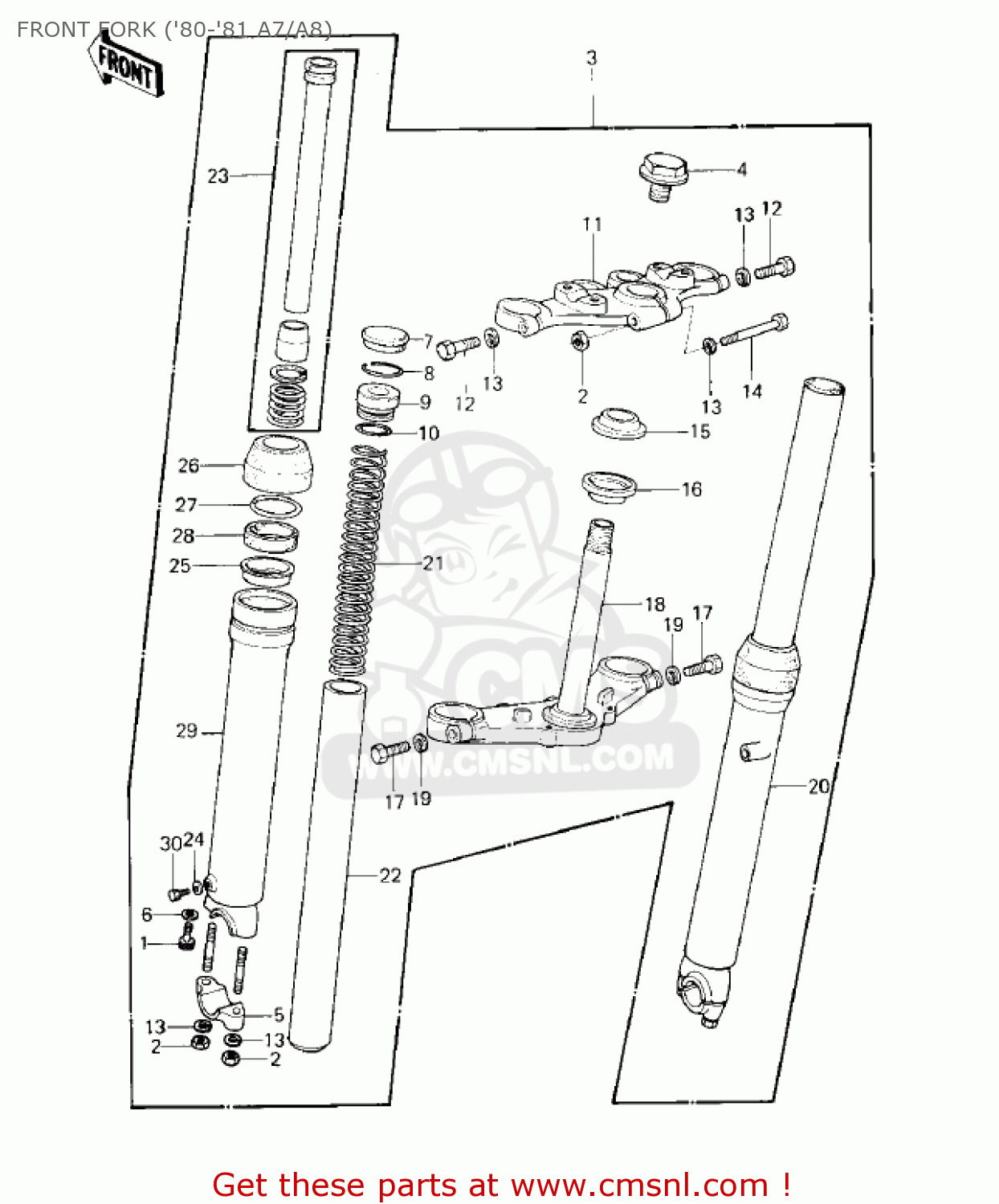

Front fork ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
FRONT FORK ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
44041078
ref: 1
BOLT, FORK CYLINDER
€ 6.50
2
920151124
ref: 2
NUT,LOCK,8MM
€ 3.50
3
440011230
ref: 3
FRONT FORK
€ 539.50
4
920011741
ref: 4
BOLT,STEERING STEM HD
€ 6.50
5
44063009
ref: 5
HOLDER-FRONT AXLE
€ 21.00
6
44045051
ref: 6
GASKET,FORK CYLINDER (NAS)
€ 4.00
7
110121119
ref: 7
CAP,RUBBER,FORK TOP
€ 4.00
8
44044023
ref: 8
CIRCLIP
€ 3.50
9
44029022
ref: 9
GUIDE, FORK SPRING
€ 8.00
10
44046025
ref: 10
'O' RING, FORK
€ 4.00
11
440391030
ref: 11
HOLDER-FORK UPPER
€ 160.00
12
920011063
ref: 12
BOLT,HEX HEAD,8X40
€ 6.50
13
461F0800
ref: 13
WASHER-SPRING,8MM
€ 0.50
14
920011064
ref: 14
BOLT,HEX HEAD,8X55
€ 6.00
15
92047010
ref: 15
CONE-STERNG BERG LOW
€ 10.00
16
44010027
ref: 16
SEAL,STEERING STEM
€ 7.50
17
920011252
ref: 17
BOLT,HEX HEAD,10X35
€ 3.50
18
440371042
ref: 18
STEM,STEERING
€ 164.50
19
461F1000
ref: 19
WASHER-SPRING,10MM
€ 0.50
20
440061045
ref: 20
TUBE,R.H FORK OUTER
€ 143.00
21
440261049
ref: 21
SPRING,FORK
€ 31.00
22
440131033
ref: 22
TUBE,FRONT,INNER
€ 223.50
23
440221037
ref: 23
CYLINDER,FORK
€ 44.50
24
44045047
ref: 24
GASKET,DRAIN PLUG (NAS)
€ 6.00
25
920261073
ref: 25
SPACER,OUTER PIPE
€ 6.00
26
44010026
ref: 26
DUST SHIELD,FORK
€ 9.50
27
44044020
ref: 27
CIRCLIP,45MM
€ 9.50
28
44009018
ref: 28
OIL SEAL,FORK
€ 20.50
29
440051045
ref: 29
TUBE,L.H FORK OUTER
€ 143.00
30
110B0608
ref: 30
BOLT-HEX HEAD,6X8
€ 0.50
