HANDLEBAR ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

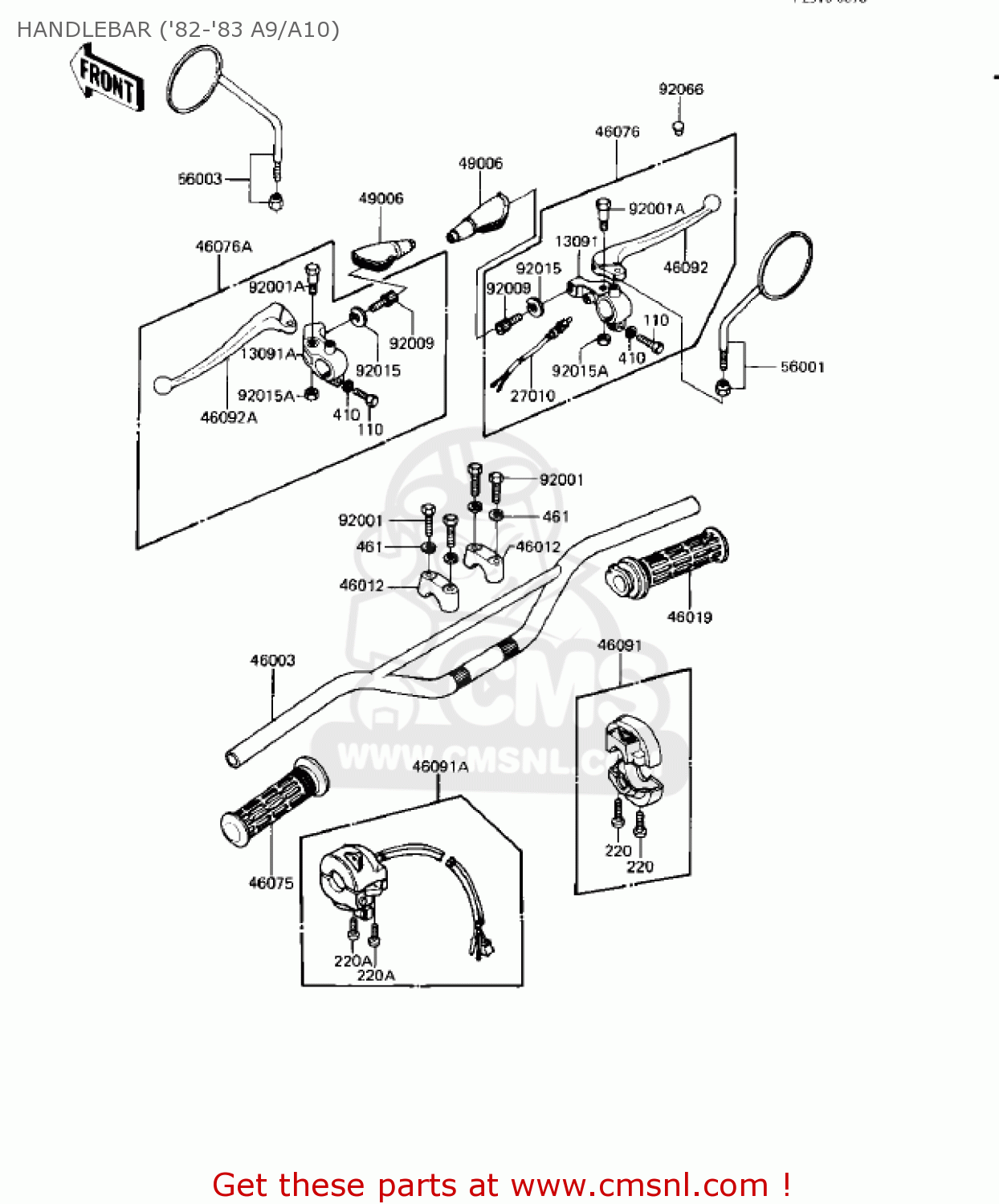

Handlebar ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
HANDLEBAR ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13091
4606000921
ref: 13091
HOLDER,BRAKE LEVER,FR
€ 27.00
13091A
4609401121
ref: 13091A
HOLDER-CLUTCH LEV,BLK
€ 23.00
27010
27021004
ref: 27010
SWITCH,FR BRAKE LAMP
€ 23.00
46003
46004033
ref: 46003
HANDLE
€ 130.00
46012
46012014
ref: 46012
HOLDER-HANDLE
€ 15.50
46019
460191005
ref: 46019
GRIP-ASSY,THROTTLE
€ 26.00
46075
460751004
ref: 46075
GRIP,L.H.
€ 8.00
46076
46021031
ref: 46076
LEVER-ASSY-GRIP,BRAKE
€ 41.50
46076A
46076044
ref: 46076A
LEVER-ASSY-GRIP,CLUTC
€ 48.00
46091
460911041
ref: 46091
HOUSING-ASSY-CONTROL,
€ 41.50
46091A
460911097
ref: 46091A
CONTROLLER HOUSING ASSEMBLY
€ 68.00
46092
46058004
ref: 46092
LEVER-GRIP,FRONT BRAK
€ 24.00
46092A
46092015
ref: 46092A
LEVER-GRIP,CLUTCH
€ 11.50
49006
490061017
ref: 49006
BOOTS,LEVER HOLDER
€ 13.00
56001
56002020
ref: 56001
(OPTION)
MIRROR-ASSY,RH
€ 47.50
56003
56003009
ref: 56003
MIRROR-ASSY,LH
€ 50.00
92001
920011405
ref: 92001
BOLT,8X38
€ 10.00
92001A
92007046
ref: 92001A
BOLT,HEX HEAD,5X22
€ 4.50
92009
46055003
ref: 92009
SCREW-CABLE ADJUST
€ 11.50
92015
46056005
ref: 92015
NUT-LOCK
€ 6.00
92015A
92019014
ref: 92015A
NUT-LOCK,5M/M
€ 2.50
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
110
110N0625
ref: 110
BOLT-HEX HEAD,6X25
€ 3.50
220
220B0518
ref: 220
SCREW-PAN HEAD,5X18
€ 2.50
220A
220B0522
ref: 220A
SCREW-PAN-CROS
€ 0.50
410
410D0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
