CRANKCASE ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

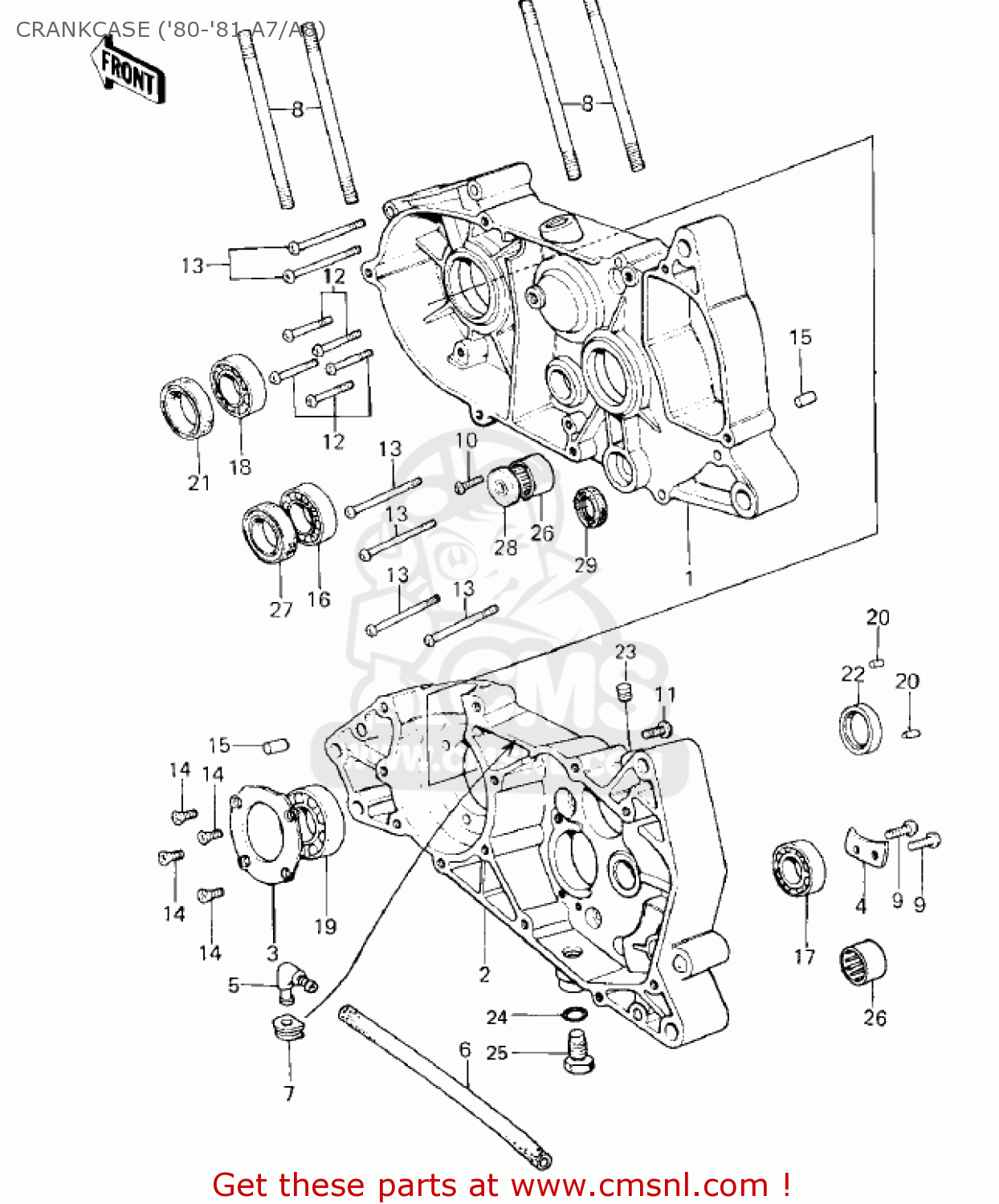

Crankcase ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
CRANKCASE ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
140015138
ref: 1
SET-CRANKCASE,F.BLACK
€ 514.50
2
140015138
ref: 2
SET-CRANKCASE,F.BLACK
€ 514.50
3
14014028
ref: 3
PLATE,CRANK BEARING
€ 4.50
4
14014029
ref: 4
PLATE,MISSION BEARNG
€ 2.00
5
140691001
ref: 5
BREATHER
€ 17.50
6
140691001
ref: 6
BREATHER
€ 17.50
7
92071042
ref: 7
GROMMET
€ 2.50
8
172G0870
ref: 8
STUD,8X70
€ 3.50
9
220B0612
ref: 9
SCREW-PAN HEAD,6X12
€ 1.00
10
220B0620
ref: 10
SCREW-PAN HEAD,6X20
€ 2.50
11
220B0625
ref: 11
SCREW-PAN HEAD,6X25
€ 1.50
12
220B0640
ref: 12
SCREW-PAN HEAD,6X40
€ 2.00
13
220B0660
ref: 13
SCREW-PAN HEAD,6X60
€ 2.50
14
221B0616
ref: 14
SCREW-CNTSNK HD,6X16
€ 0.50
15
920431037
ref: 15
PIN,DOWEL,10X8.2X14
€ 0.50
16
601B6004
ref: 16
BEARING-BALL,#6004C3
€ 10.50
17
601B6203
ref: 17
BEARING-BALL,#6203C3
€ 10.50
18
601B6204
ref: 18
BEARING-BALL,#6204C3
€ 8.00
19
601B6304
ref: 19
BEARING-BALL,#6304C3
€ 31.00
20
610A0512
ref: 20
ROLLER,5X12
€ 3.00
21
920491240
ref: 21
SEAL-OIL
€ 10.50
22
920491250
ref: 22
SEAL-OIL
€ 12.00
23
92074035
ref: 23
PLUG,15X19
€ 4.50
24
92065073
ref: 24
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
25
920661240
ref: 25
PLUG,DRAIN
€ 4.50
26
92045037
ref: 26
BEARING-BALL,#6306
€ 40.00
27
92050013
ref: 27
OIL SEAL SC25376
€ 9.50
28
92050058
ref: 28
OIL SEAL,PUSH ROD
€ 5.50
29
920491271
ref: 29
SEAL, OIL
€ 7.00
