OIL PUMP ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

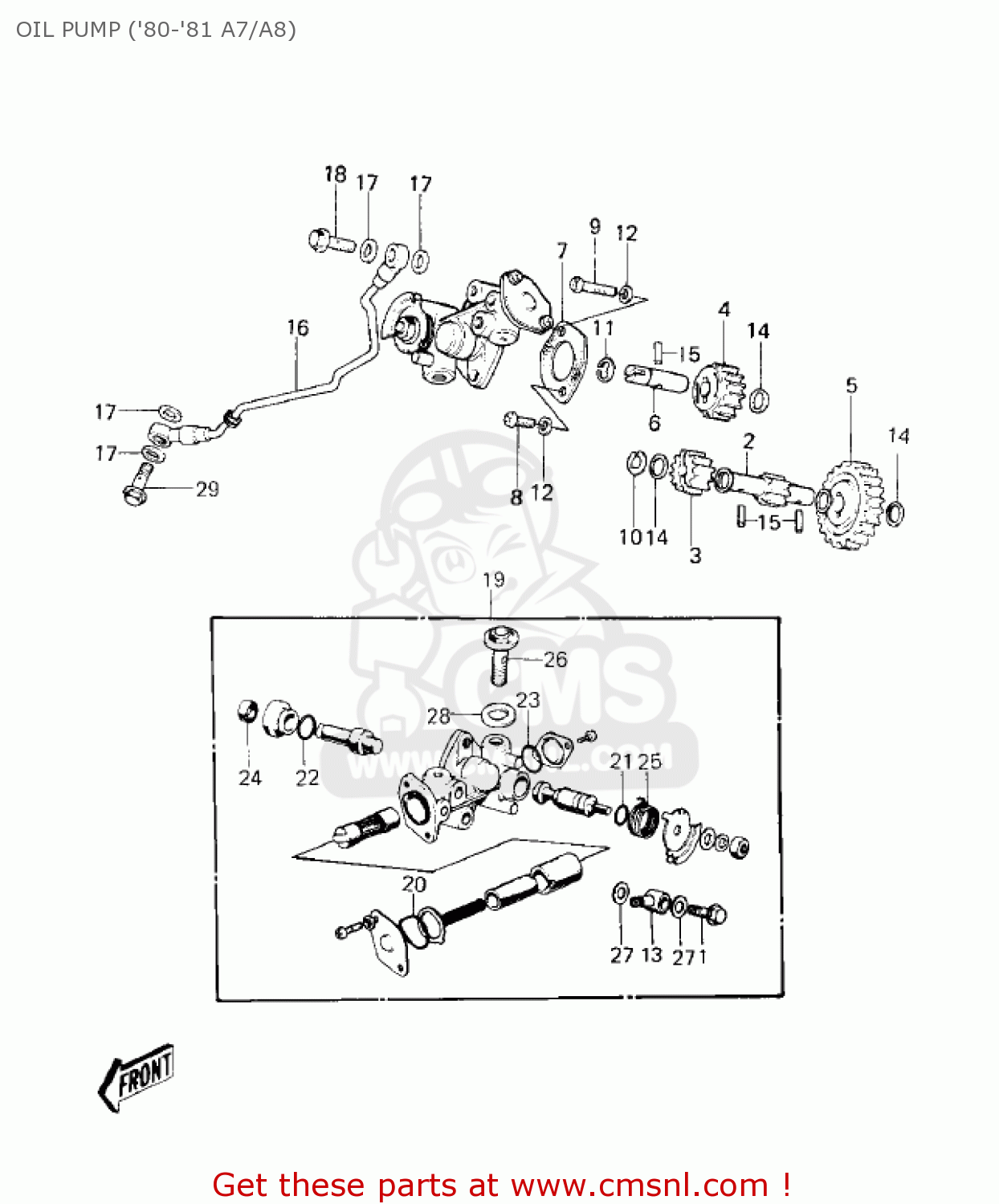

Oil pump ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
OIL PUMP ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92060013
ref: 1
BOLT-BANJO,6MM
€ 4.00
2
13224010
ref: 2
PINION,TACHOMETER
€ 30.00
3
16085020
ref: 3
GEAR,OIL PUMP,10T
€ 12.00
4
16085021
ref: 4
GEAR,OIL PUMP,12T
€ 13.00
5
16085022
ref: 5
GEAR,OIL PUMP,20T
€ 10.50
6
16086003
ref: 6
SHAFT,OIL PUMP GEAR
€ 7.50
7
110601160
ref: 7
GASKET,OIL PUMP (NAS)
€ 3.00
8
220B0514
ref: 8
ACREW-PAN HEAD,5X14
€ 2.50
9
220B0528
ref: 9
SCREW-PAN-CROS
€ 0.50
10
482J7000
ref: 10
CIRCLIP-TYPE-E,7MM
€ 0.50
11
482J7000
ref: 11
CIRCLIP-TYPE-E,7MM
€ 0.50
12
92022037
ref: 12
WASHER,5.5X10.5X0.8
€ 2.50
13
92061009
ref: 13
FITTING,BANJO
€ 8.50
14
92026095
ref: 14
SPACER,8.3X13X1.0
€ 5.50
15
92042035
ref: 15
PIN,DOWEL,2.5X12.8
€ 2.50
16
16134022
ref: 16
TUBE,OIL
€ 24.00
17
92022077
ref: 17
WASHER,6.1X12X1
€ 0.50
18
92060013
ref: 18
BOLT-BANJO,6MM
€ 4.00
19
160821014
ref: 19
PUMP-ASSY-OIL
€ 165.00
20
16088002
ref: 20
RING-O,CAP,BANJO SIDE
€ 6.50
21
920491294
ref: 21
SEAL-OIL,CAMSHAFT,"X"
€ 7.50
22
16090002
ref: 22
RING-O,OIL PUMP SHAFT
€ 4.50
23
16090004
ref: 23
RING-O,CAP,CAMSHAFT S
€ 6.00
24
16091001
ref: 24
OIL SEAL-OIL PUMP SHT
€ 4.50
25
16093007
ref: 25
SPRING,OIL PUMP LEVER
€ 6.00
26
920091010
ref: 26
BOLT,AIR VENT
€ 9.00
27
92022077
ref: 27
WASHER,6.1X12X1
€ 0.50
28
920221006
ref: 28
WASHER
€ 3.50
29
92060008
ref: 29
BOLT-BANJO
€ 11.50
