OIL TANK ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

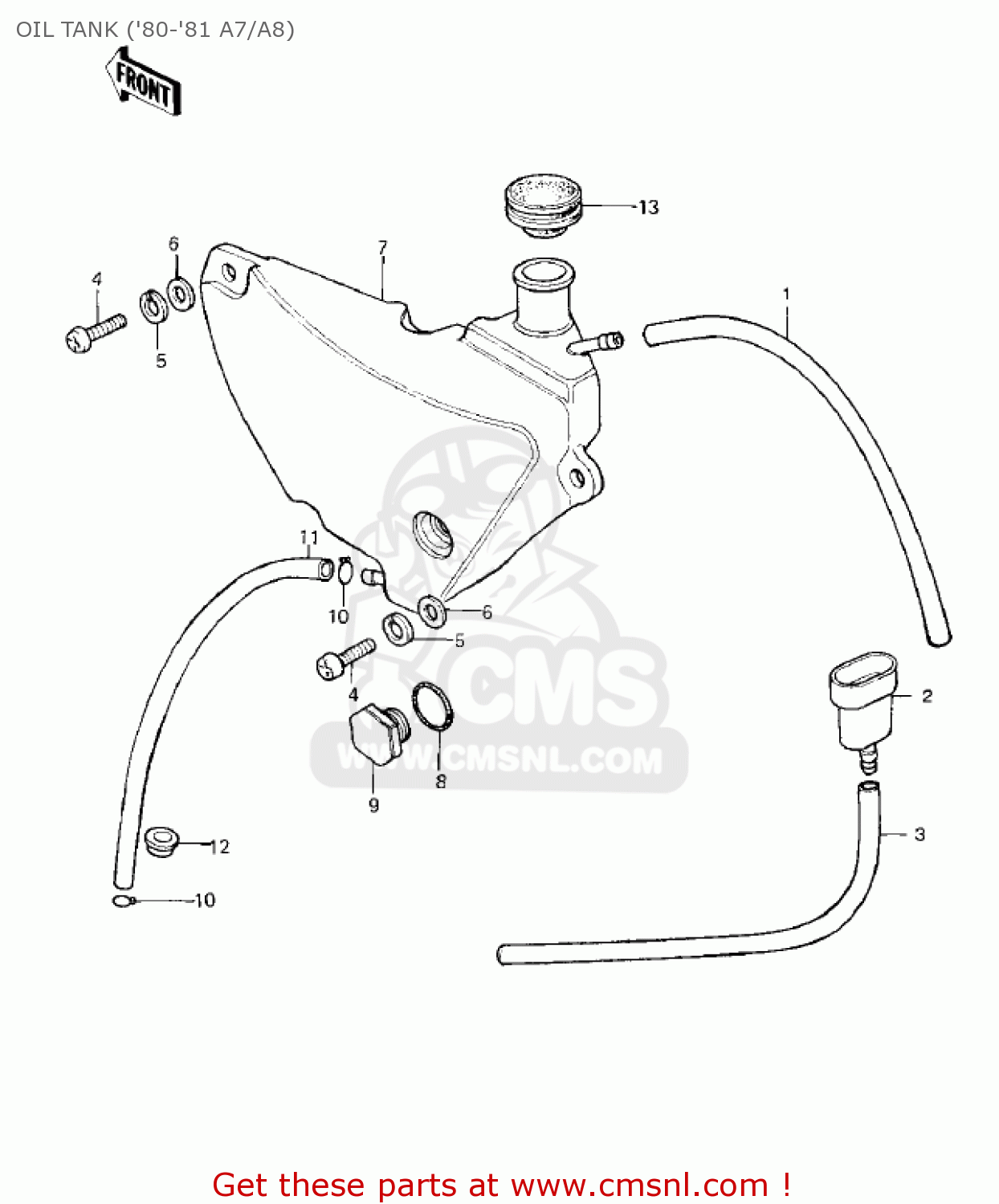

Oil tank ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
OIL TANK ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
700Q05400
ref: 1
TUBE-VINYL,5X400
€ 1.50
2
92059101
ref: 2
TUBE,CONNECTOR
€ 6.00
3
700Q07550
ref: 3
TUBE,VINYL,7X550
€ 2.50
4
220B0614
ref: 4
SCREW-PAN HEAD,6X14
€ 2.00
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
92022125
ref: 6
WASHER,6.5X20X1.6
€ 1.00
7
52001041
ref: 7
TANK-OIL
€ 41.00
8
92055051
ref: 8
RING-O,20MM
€ 3.00
9
52015002
ref: 9
GAUGE,OIL LEVEL
€ 3.50
10
92037010
ref: 10
CLAMP-FUEL PIPE
€ 2.50
11
92059106
ref: 11
PIPE,OIL
€ 4.00
12
92071085
ref: 12
GROMMET,OIL TUBE
€ 2.50
13
510491004
ref: 13
CAP-OIL,TANK
€ 10.00
