MUFFLER ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

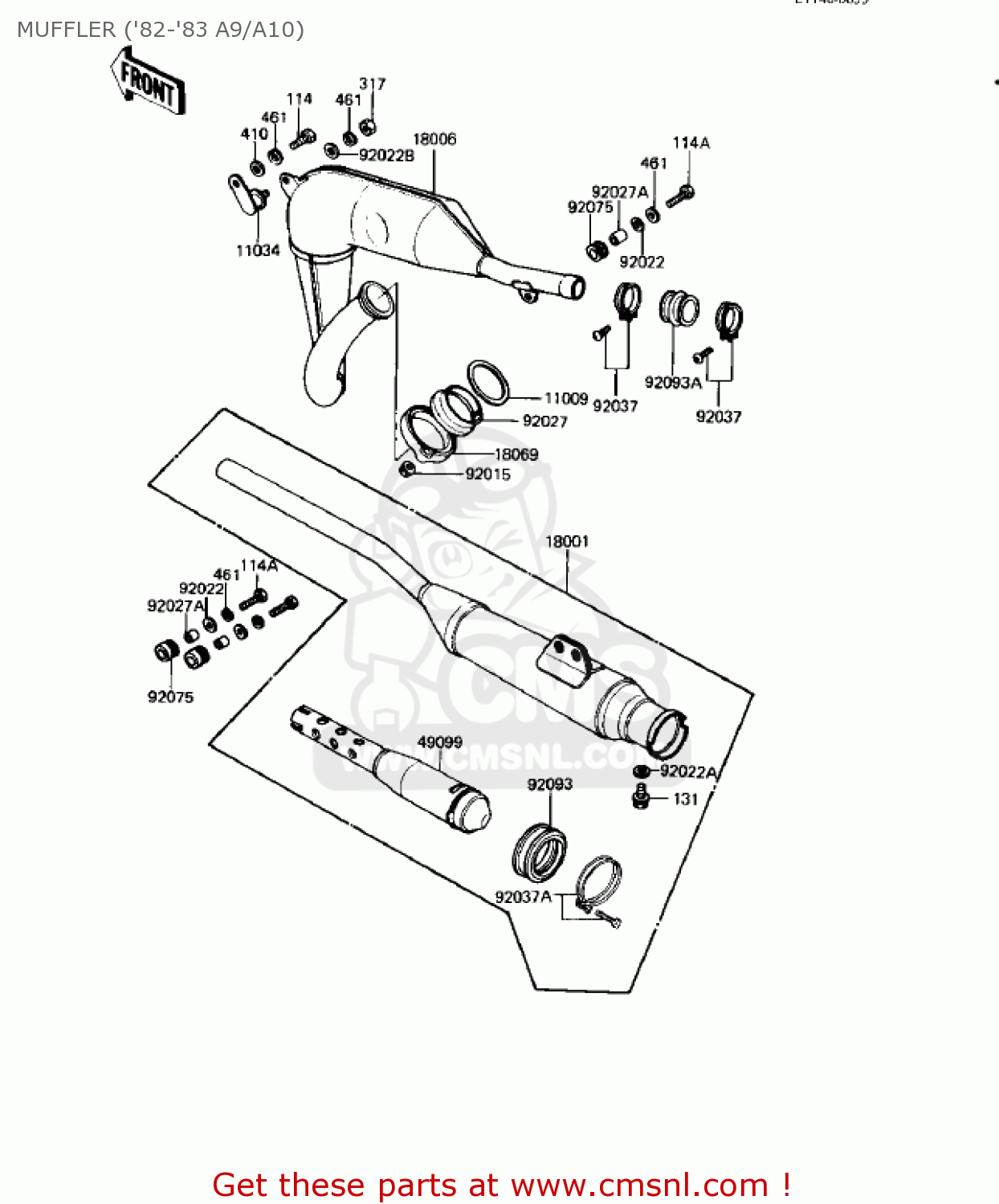

Muffler ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
MUFFLER ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
18067008
ref: 11009
GASKET-EXHAUST PIPE (NAS)
€ 10.50
11034
18061060
ref: 11034
BRACKET,MUFFLER
€ 16.50
18001
180011279
ref: 18001
MUFFLER
€ 153.50
18006
180061135
ref: 18006
BODY-MUFFLER
€ 194.00
18069
18069057
ref: 18069
HOLDER-EXHAUST PIPE
€ 25.50
49099
490991028
ref: 49099
MUFFLER PIPE BAFFLE
€ 56.00
92015
92017013
ref: 92015
NUT,LOCK,8MM
€ 5.50
92022
920221564
ref: 92022
WASHER
€ 2.50
92022A
92022077
ref: 92022A
WASHER,6.1X12X1
€ 0.50
92022B
920221561
ref: 92022B
WASHER,8.5X20X1.6
€ 2.50
92027
18070007
ref: 92027
COLLAR,EXHAUST PIPE H
€ 6.50
92027A
92027102
ref: 92027A
COLLAR
€ 1.00
92037
920371127
ref: 92037
CLAMP,CONNECTOR
€ 7.00
92037A
920371190
ref: 92037A
CLAMP,MUFFLER
€ 5.50
92075
18063005
ref: 92075
DAMPER,MUFFLER
€ 3.00
92093
920931013
ref: 92093
SEAL,MUFFLER
€ 7.50
92093A
920931020
ref: 92093A
SEAL,MUFFLER CONNECTI
€ 17.50
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
114A
114G0828
ref: 114A
BOLT-SMALL,8X28
€ 2.50
131
130B0608
ref: 131
BOLT,FLANGED,6X8
€ 0.50
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
