GEAR CHANGE MECHANISM ('80-'81 A

KE125-A7 KE125 1980 USA CANADA

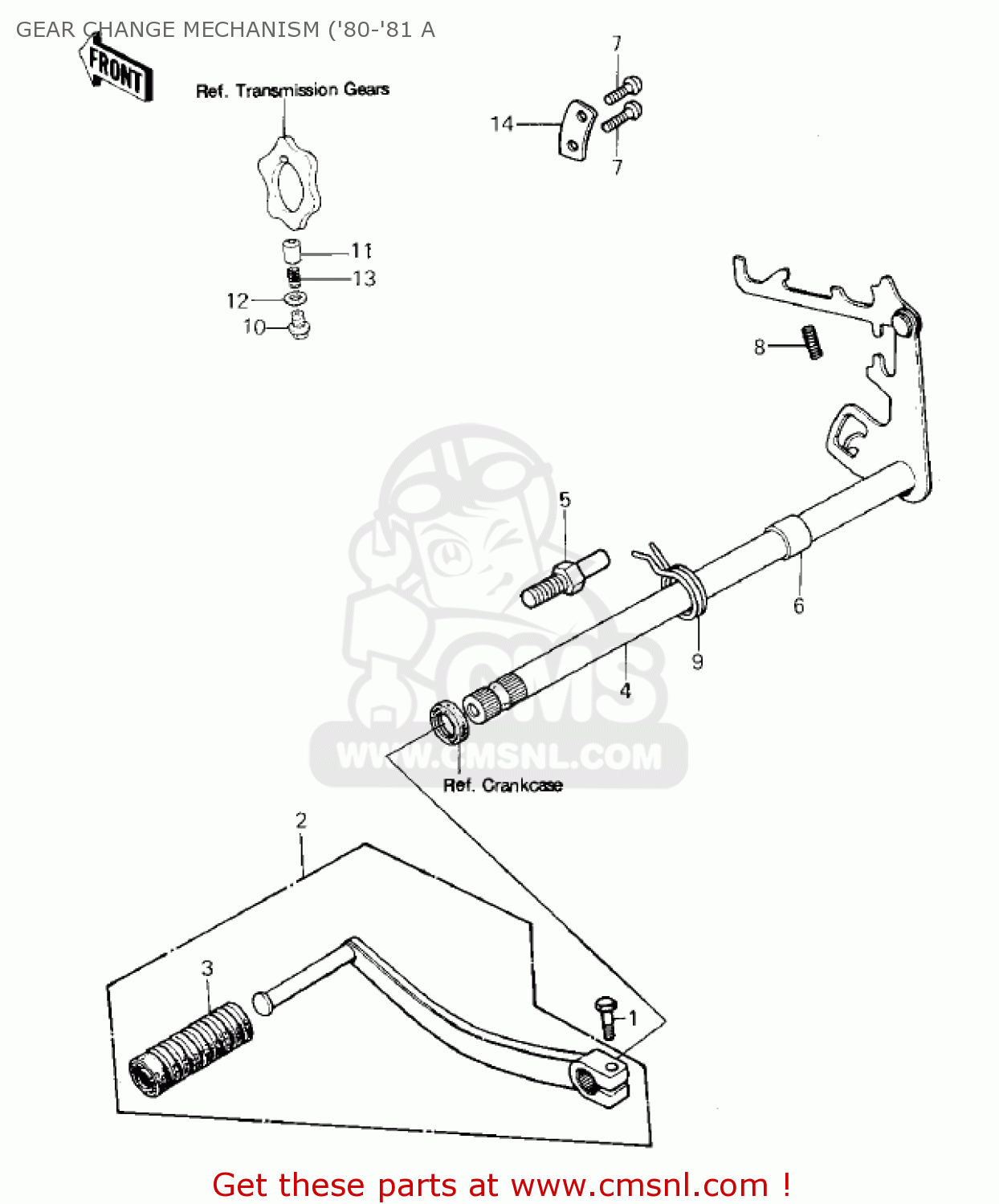

Gear change mechanism ('80-'81 a diagram KE125-A7 KE125 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

132421272
ref: 2

LEVER-ASSY-CHANGE,PED

€ 25.50

13157004
ref: 3

RUBBER-CHANGE PEDAL

€ 4.00

13161040
ref: 4

LEVER-COMP-CHANGE SHA

€ 51.50

920011401
ref: 5

BOLT,RETURN SPRING

€ 3.00

92027205
ref: 6

COLLAR,GEAR CHNG LEV

€ 4.00

220B0614
ref: 7

SCREW-PAN HEAD,6X14

€ 2.00

92081124
ref: 8

SPRING,GEAR CHANGE

€ 3.00

920811129
ref: 9

SPRING,TENTION

€ 6.50

92001131
ref: 10

BOLT,10MM

€ 14.00

92043076
ref: 11

PIN-NEUTRAL PISTON

€ 8.00

92065090
ref: 12

GASKET (NAS)

€ 2.00

92081112
ref: 13

SPRING

€ 4.00

13169002
ref: 14

PLATE,CHANGE DRUM POS

€ 3.00
