CLUTCH ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

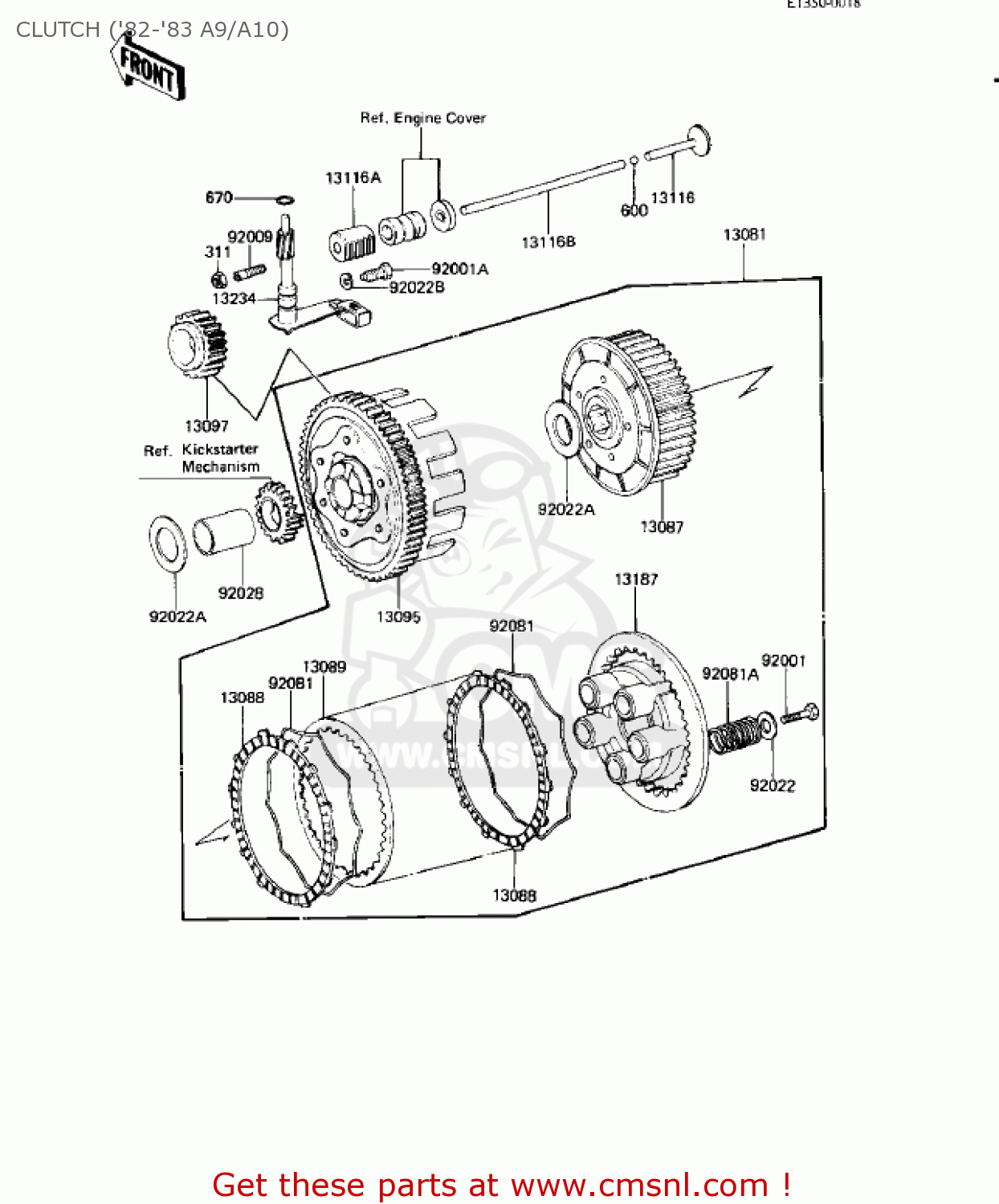

Clutch ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
CLUTCH ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13081
130811053
ref: 13081
CLUTCH ASSY
€ 187.50
13087
13087038
ref: 13087
HUB-CLUTCH
€ 52.00
13088
130881015
ref: 13088
PLATE-FRICTION (NAS)
€ 11.50
13089
13089003
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
13095
130951034
ref: 13095
HOUSING-COMP-CLUTCH
€ 271.00
13097
130971040
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 86.00
13116
13116016
ref: 13116
ROD-PUSH,CLUTCH SPRIN
€ 11.50
13116A
13116026
ref: 13116A
ROD-PUSH,CLUTCH RELEA
€ 19.50
13116B
13116027
ref: 13116B
ROD-PUSH,CLUTCH
€ 10.50
13187
13187004
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
13234
13234003
ref: 13234
SHAFT-COMP,CLUTCH REL
€ 59.00
92001
92003078
ref: 92001
BOLT,5X18
€ 2.00
92001A
92003130
ref: 92001A
BOLT,CLUTCH RELEASE
€ 3.50
92009
92014015
ref: 92009
SCREW,SET,6X26
€ 6.50
92022
92022167
ref: 92022
WASHER-PLAIN,5MM
€ 1.50
92022A
92022270
ref: 92022A
WASHER,PLAIN
€ 7.00
92022B
92031009
ref: 92022B
WASHER,LOCK
€ 2.00
92028
92028138
ref: 92028
BUSHING,17X22X33.5
€ 23.50
92081
13229002
ref: 92081
SPRING,CLUTCH STEEL
€ 7.50
92081A
92081123
ref: 92081A
SPRING,CLUTCH
€ 4.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
600
600A0700
ref: 600
BALL-STEEL,7/32
€ 2.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
