FRAME FITTINGS ('82-'83 A9/A10)

KE125-A7 KE125 1980 USA CANADA

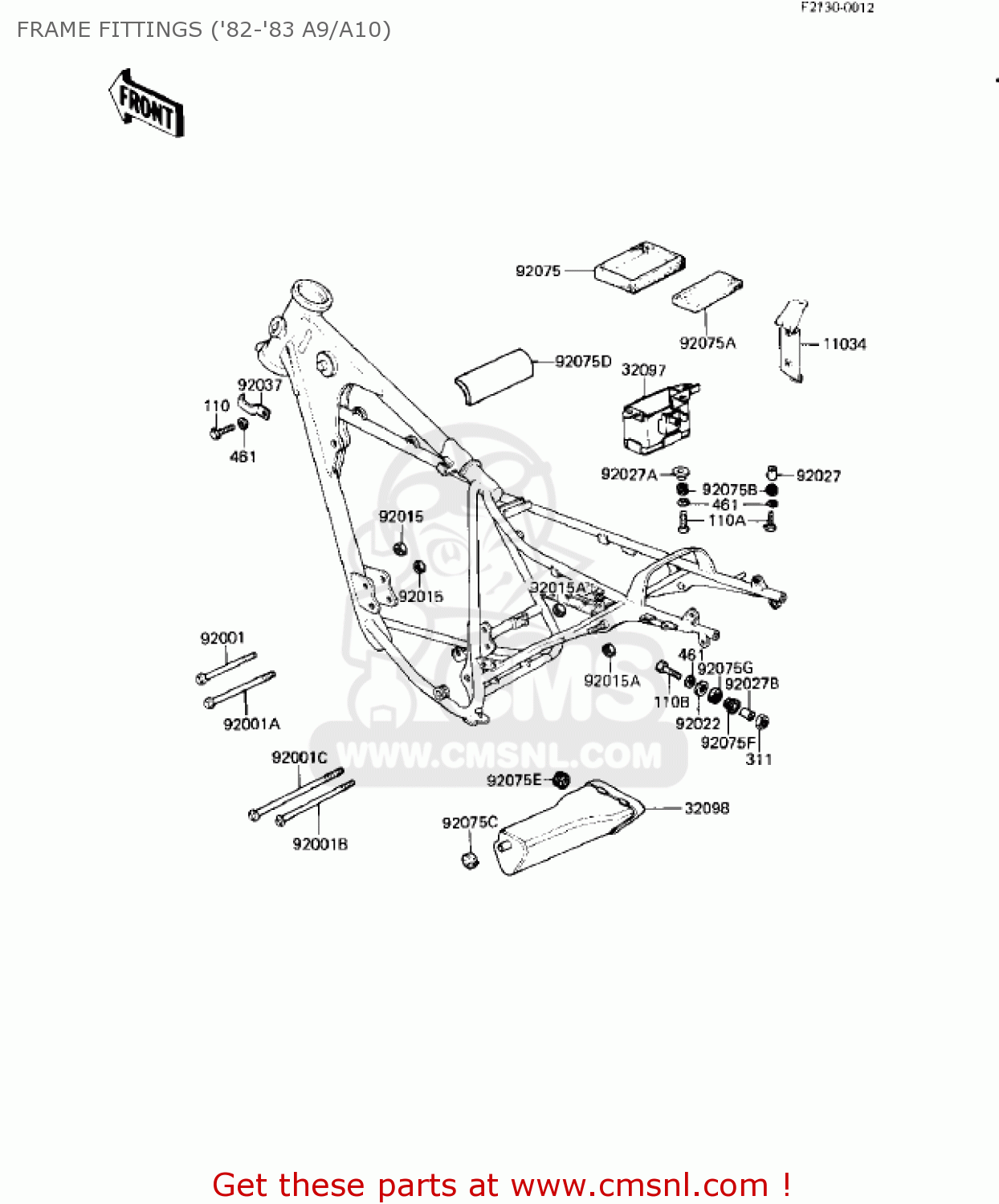

Frame fittings ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA

FRAME FITTINGS ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA

FRAME FITTINGS ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

11034

110341798
ref: 11034

REGULATOR BRACKET

€ 8.00

32097

32097030
ref: 32097

CASE-BATTERY

€ 18.00

32098

32098022
ref: 32098

CASE,TOOL

€ 26.00

92001

920011582
ref: 92001

BOLT,FLANGED,8X65

€ 3.50

92001A

920011583
ref: 92001A

BOLT,FLANGED,8X70

€ 6.00

92001B

920011603
ref: 92001B

BOLT,FLANGED,10X115

€ 7.00

92001C

920011604
ref: 92001C

BOLT,FLANGED,10X130

€ 6.00

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92015A

920151429
ref: 92015A

NUT,10MM

€ 4.50

92022

92022228
ref: 92022

WASHER-PLAIN,7MM

€ 2.50

92027

92027103
ref: 92027

COLLAR

€ 2.50

92027A

92027153
ref: 92027A

COLLAR

€ 4.00

92027B

92027162
ref: 92027B

COLLAR-REAR FENDER

€ 4.50

92037

92037150
ref: 92037

CLAMP,WIRE HARNESS

€ 4.00

92075

32103023
ref: 92075

DAMPER,BATTERY BOTTOM

€ 2.50

92075A

32103027
ref: 92075A

DAMPER,BATTERY

€ 7.50

92075B

92075051
ref: 92075B

DAMPER RUBBER

€ 2.50

92075C

92075107
ref: 92075C

DAMPER

€ 2.00

92075D

920751085
ref: 92075D

DAMPER,AIR FILTER

€ 3.00

92075E

92075150
ref: 92075E

DAMPER,OIL TANK

€ 2.50

92075F

92075174
ref: 92075F

DAMPER,MALE

€ 3.00

92075G

92075175
ref: 92075G

DAMPER,FEMALE

€ 2.50

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

110B

112G0625
ref: 110B

BOLT-UPSET,6X25

€ 4.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
