CARBURETOR ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

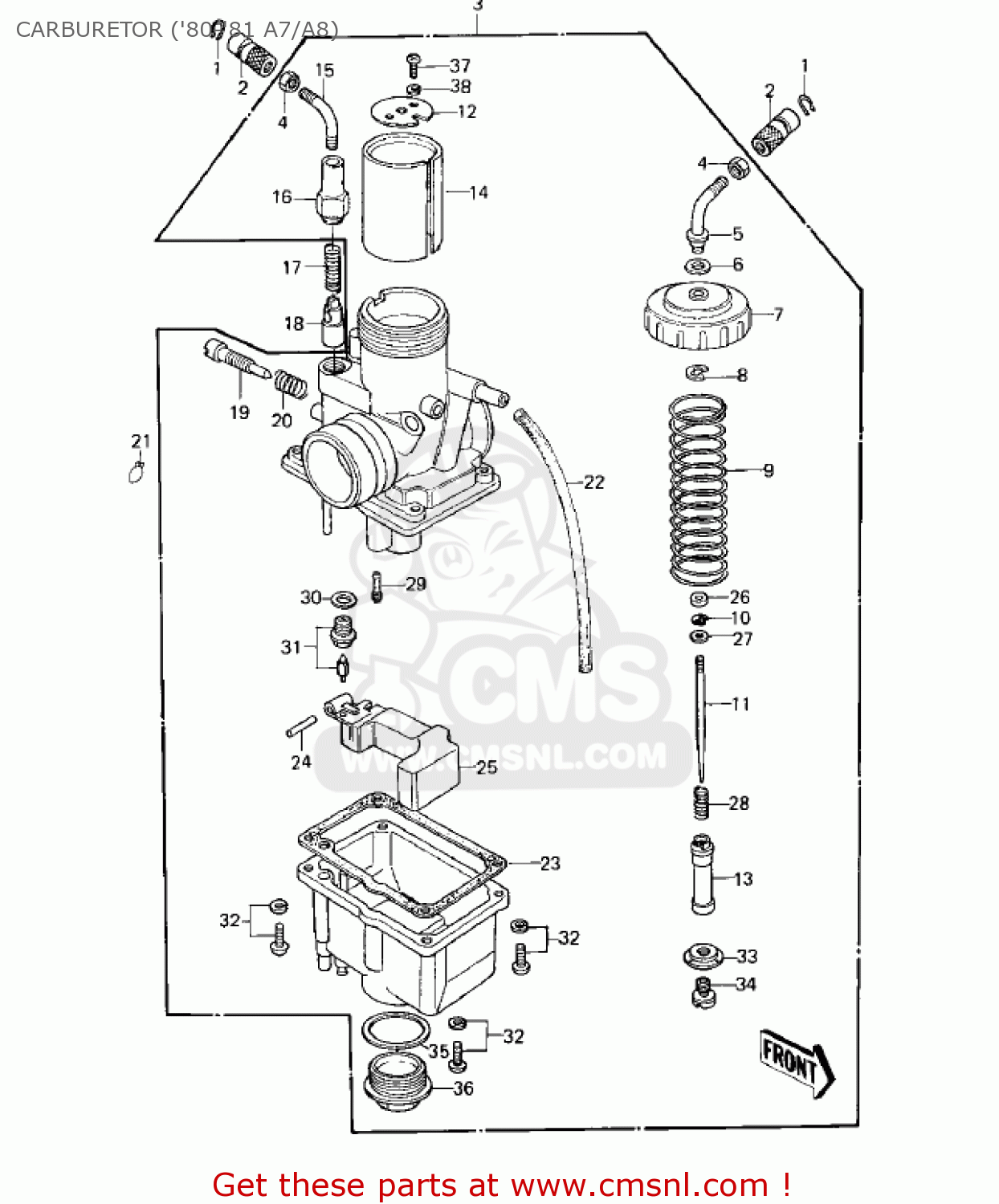

Carburetor ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
CARBURETOR ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92036018
ref: 1
CIRCLIP
€ 2.50
2
16002007
ref: 2
ADJUSTER-CABLE,THROTT
€ 7.50
3
160011243
ref: 3
CARBURETOR ASSEMBLY
€ 209.00
4
16003004
ref: 4
NUT-CABLE ADJUST LOCK
€ 4.50
5
16077011
ref: 5
GUIDE,CABLE
€ 13.50
6
16029007
ref: 6
GASKET,CABLE GUIDE (NAS)
€ 5.50
7
16004024
ref: 7
CAP,MIXING CHAMBER
€ 13.50
8
16008011
ref: 8
CLAMP,CABLE GUIDE
€ 4.50
9
16006024
ref: 9
SPRING,THROTTLE VALV
€ 7.50
10
16008010
ref: 10
CLAMP,E-TYPE
€ 5.00
11
160091066
ref: 11
JET,NEEDLE,5EL24
€ 21.00
12
131691123
ref: 12
THROTTLE VALVE PLATE
€ 5.50
13
160171062
ref: 13
JET,NEEDLE,#AO-0
€ 24.00
14
160251018
ref: 14
THROTTLE VALVE,CA2.5
€ 49.00
15
16077010
ref: 15
GUIDE,CABLE
€ 13.00
16
16012017
ref: 16
CAP-STARTER PLUNGER
€ 11.50
17
16013003
ref: 17
SPRING-STARTER PLUNG
€ 4.00
18
16016002
ref: 18
PLUNGER,STARTER
€ 20.00
19
16021023
ref: 19
SCREW-THROTTLE STOP
€ 12.50
20
16022005
ref: 20
SPRING-THR STOP SCREW
€ 5.50
21
92037010
ref: 21
CLAMP-FUEL PIPE
€ 2.50
22
920591011
ref: 22
TUBE, CARB. BREATHER
€ 6.50
23
16019023
ref: 23
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
24
16032006
ref: 24
PIN,FLOAT
€ 4.00
25
16031026
ref: 25
FLOAT
€ 40.00
26
920271403
ref: 26
COLLAR,25.2X29.8X10.4
€ 7.50
27
920221024
ref: 27
WASHER,THROTTLE VALVE
€ 4.50
28
920811072
ref: 28
NEEDLE JET SPRING
€ 2.50
29
920641020
ref: 29
JET-PILOT,#A25
€ 12.50
30
16029004
ref: 30
WASHER-FLOAT VLV SEAT
€ 2.50
31
16030024
ref: 31
VALVE-FLOAT
€ 30.50
32
223B0414
ref: 32
SCREW PAN-WS-CROS
€ 2.50
33
16008012
ref: 33
RING,MAIN JET HOLD
€ 13.50
34
920631085
ref: 34
JET,MAIN,#A92.5R
€ 8.00
35
16034008
ref: 35
WASHER,MAIN JET COVER (NAS)
€ 4.00
36
92001146
ref: 36
BOLT,BANJO
€ 12.50
37
220B0308
ref: 37
SCREW-PAN-CROS
€ 0.50
38
461F0300
ref: 38
WASHER-SPRING,3MM
€ 0.50
