SEAT ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

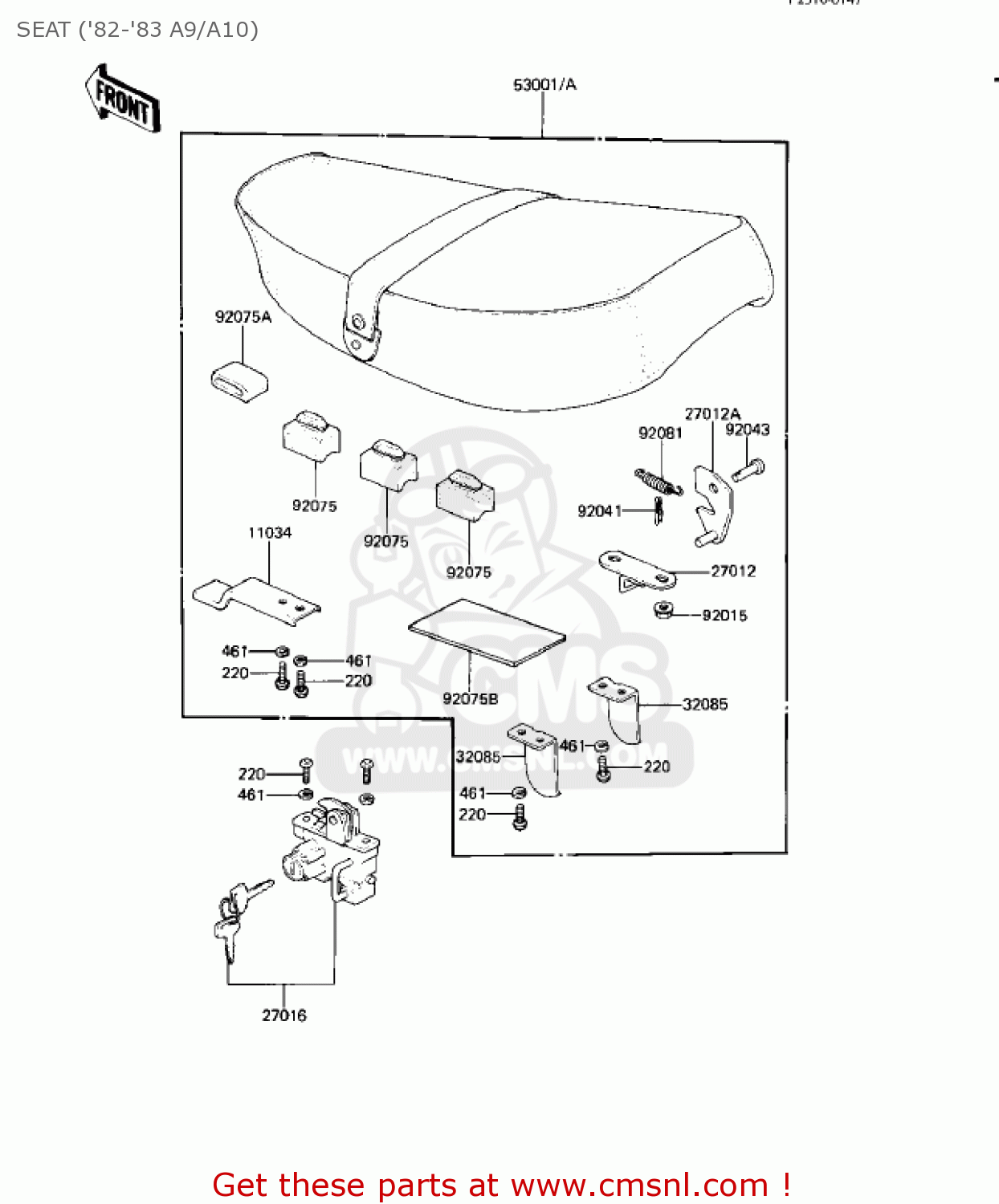

Seat ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
SEAT ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
53032005
ref: 11034
BRACKET,DUAL SEAT
€ 7.50
27012
270121021
ref: 27012
HOOK,SEAT,LH
€ 6.00
27012A
53008029
ref: 27012A
HOOK SEAT,R.H
€ 3.50
27016
270165044
ref: 27016
LOCK-ASSY,SEAT
€ 51.00
32085
53059001
ref: 32085
STOPPER,SEAT
€ 7.50
53001
530011168
ref: 53001
SEAT ASSEMBLY
€ 216.00
53001A
530011247
ref: 53001A
53001-1374 (Canada)
€ 0.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92041
92041003
ref: 92041
COTTER
€ 0.50
92043
53011001
ref: 92043
PIN,6X12
€ 2.50
92075
92075216
ref: 92075
DAMPER,SEAT
€ 3.00
92075A
92075219
ref: 92075A
DAMPER,SEAT
€ 4.50
92075B
92075224
ref: 92075B
DAMPER,RUBBER
€ 4.50
92081
53012013
ref: 92081
SPRING,HOOK
€ 10.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
