HEADLIGHT ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

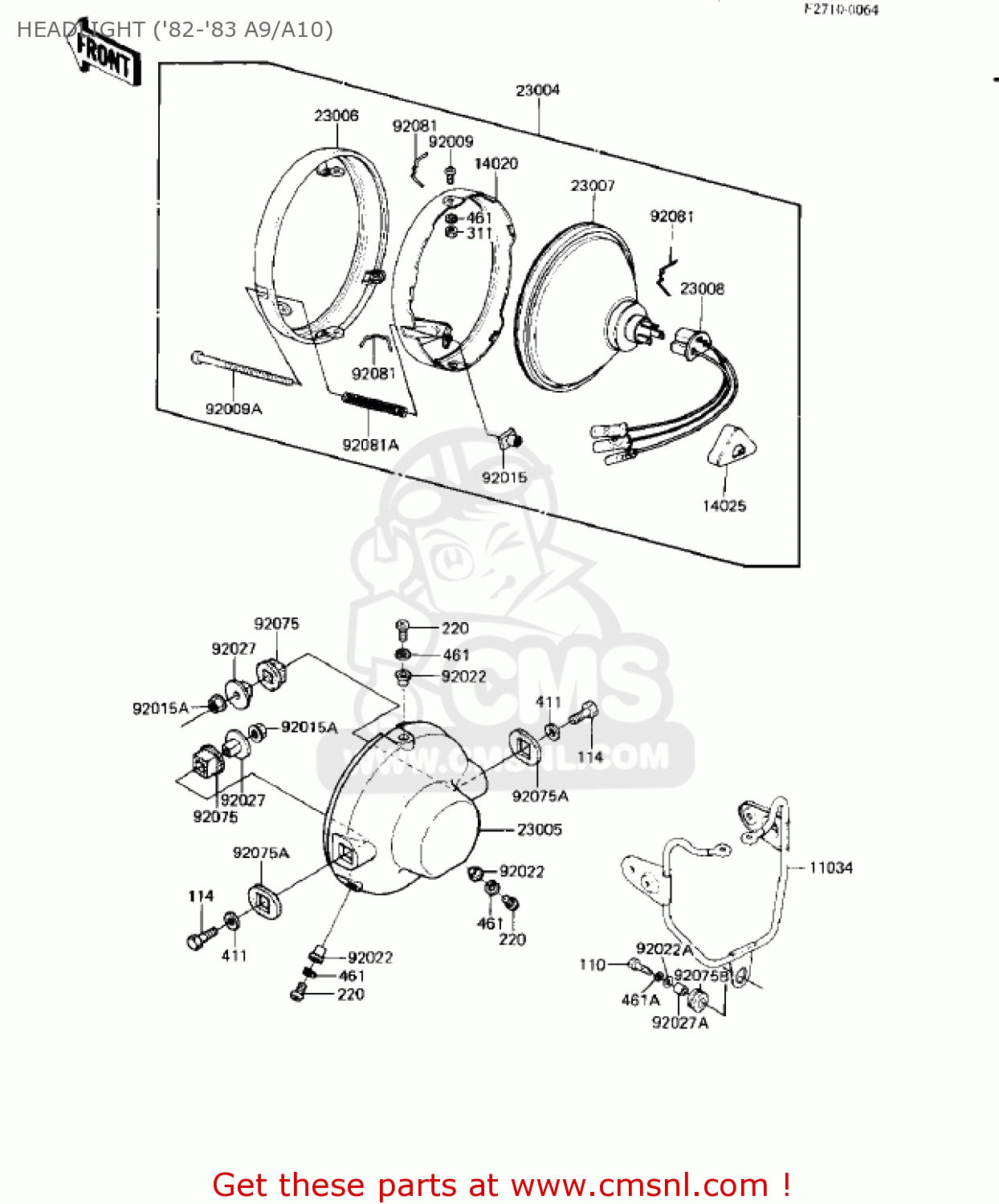

Headlight ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
HEADLIGHT ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341701
ref: 11034
HEADLAMP BODY BRACKET
€ 52.50
14020
23072002
ref: 14020
RETAINER,SEALED BEAM
€ 29.50
14025
23081001
ref: 14025
COVER,HD LAMP SOCKET
€ 6.50
23004
230041030
ref: 23004
LAMP-HEAD
€ 221.50
23005
2300510076Z
ref: 23005
BODY-COMP-HEAD LAMP,B
€ 71.50
23006
230061004
ref: 23006
RIM-LAMP
€ 56.00
23007
23007055
ref: 23007
LENS-COMP,4020 MARK
€ 60.00
23008
23008044
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 15.00
92009
23019026
ref: 92009
SCREW,LENS FITTING
€ 3.00
92009A
23019027
ref: 92009A
SCREW,FOCUS ADJUSTING
€ 3.00
92015
23020012
ref: 92015
NUT,ADJUSTING
€ 2.50
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92022
23021010
ref: 92022
WASHER
€ 2.50
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92027
920271105
ref: 92027
COLLAR,L=15.6
€ 4.50
92072A
92027162
ref: 92072A
COLLAR-REAR FENDER
€ 4.50
92075
920751077
ref: 92075
DAMPER,HEAD LAMP
€ 3.00
92075A
920751076
ref: 92075A
DAMPER,BATTERY BASE
€ 6.00
92075B
92075209
ref: 92075B
DAMPER RUBBER
€ 3.00
92081
23009015
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.50
92081A
23014012
ref: 92081A
SPRING,FOCUS ADJUST
€ 3.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
114
114N0830
ref: 114
BOLT-SMALL,8X30
€ 2.50
220
220B0512
ref: 220
SCREW-PAN-CROS
€ 0.50
311
311B0400
ref: 311
NUT-HEX,4MM
€ 0.50
411
411D0800
ref: 411
WASHER,PLAIN,8MM
€ 2.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
