FUEL TANK ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

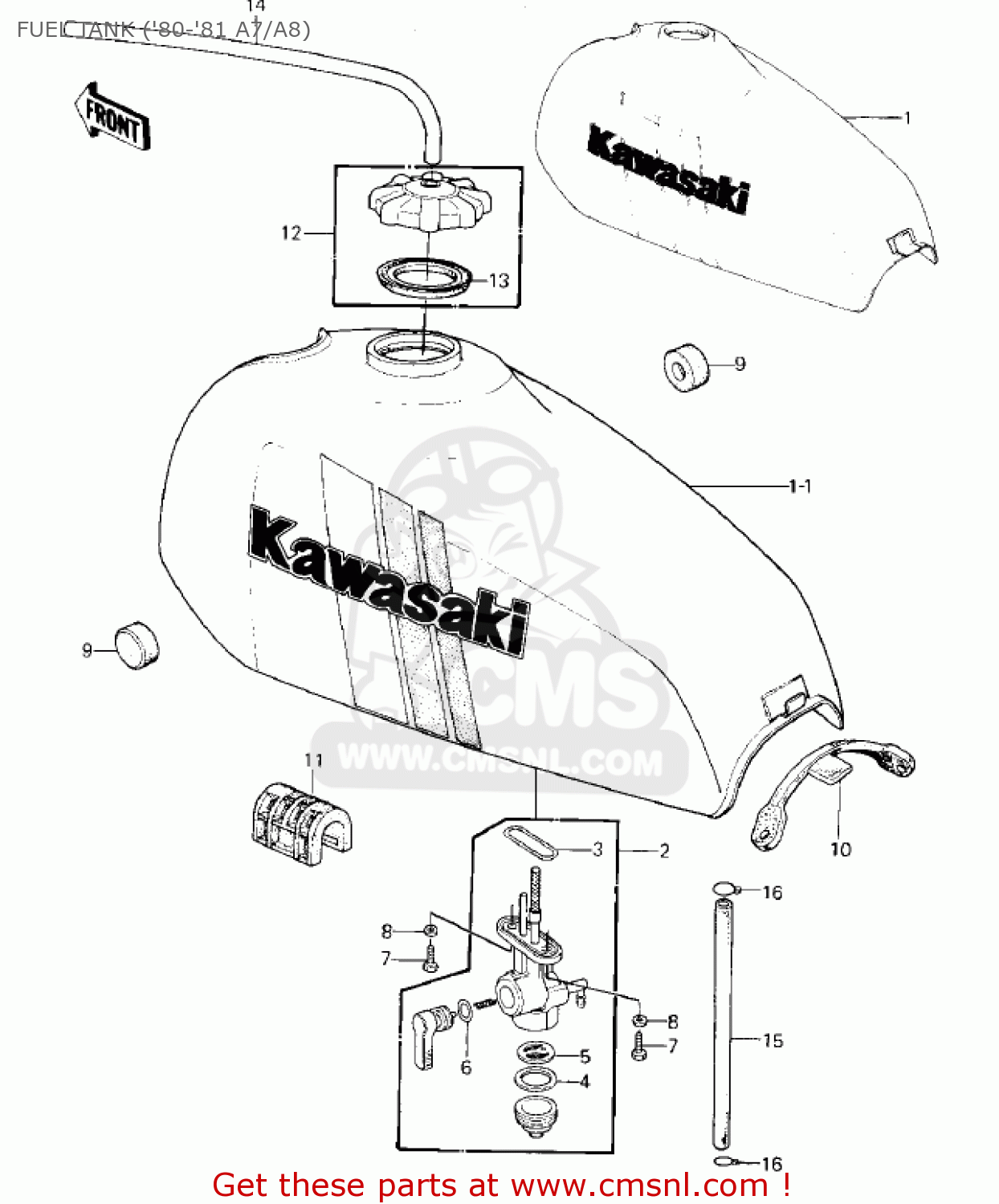

Fuel tank ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
FUEL TANK ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
510011028B1
ref: 1
KE125-A7
TANK,FUEL,F.RED
€ 270.50
1-1
510015085B1
ref: 1-1
KE125-A8
TANK-COMP-FUEL,F.RED
€ 200.50
2
510231001
ref: 2
TAP-ASSY,FUEL
€ 43.50
3
51039003
ref: 3
'O' RING
€ 4.00
4
110091013
ref: 4
GASKET,FUEL TAP CUP (NAS)
€ 3.50
5
140431002
ref: 5
FILTER,FUEL TAP
€ 3.00
6
670B2010
ref: 6
O RING,10MM
€ 1.00
7
920011091
ref: 7
BOLT,6X20,FUEL TAP
€ 2.50
8
92022183
ref: 8
WASHER,6.2X11X1.5
€ 2.50
9
92075101
ref: 9
DAMPER RUBBER-FL TANK
€ 4.00
10
92072049
ref: 10
BAND,FUEL TANK
€ 6.50
11
92075284
ref: 11
DAMPER,FUEL TANK
€ 12.50
12
510481004
ref: 12
CAP-ASSY-TANK,FUEL
€ 24.00
13
51059006
ref: 13
GASKET,FUEL TANK CAP (NAS)
€ 6.00
14
702A05400
ref: 14
TUBE,RUBBER,5X400
€ 7.50
15
92059129
ref: 15
TUBE,BREATHER
€ 22.00
16
92037010
ref: 16
CLAMP-FUEL PIPE
€ 2.50
