FRAME ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

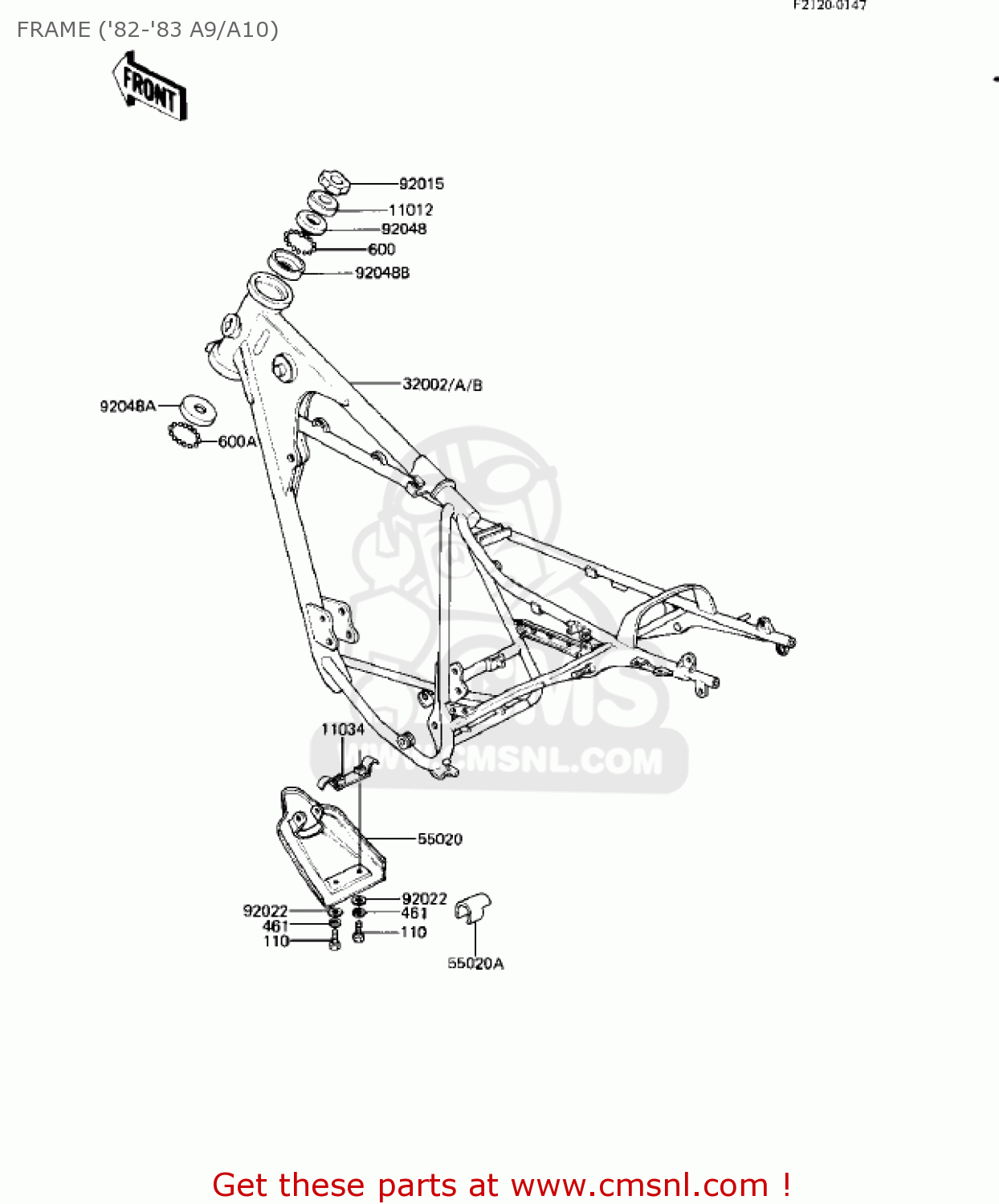

Frame ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
FRAME ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
46098018
ref: 11012
CAP,STEERING STEM
€ 4.00
11034
55016008
ref: 11034
BRACKET,ENGINE GUARD
€ 5.50
32002
320021307
ref: 32002
JKAKERA1 CA102649
FRAME-COMP,
€ 528.50
32002A
320021487
ref: 32002A
FRAME-COMP,US
€ 559.00
32002B
320021487
ref: 32002B
JKAKERA1 CA102650
FRAME-COMP,US
€ 559.00
55020
55011020
ref: 55020
GUARD,ENGINE
€ 30.50
55020A
550201045
ref: 55020A
GUARD,CHAIN
€ 6.50
92015
92090022
ref: 92015
NUT,STEERING LOCK,25M
€ 18.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92048
92047014
ref: 92048
RACE,STEERING STEM BE
€ 12.50
92048A
92048005
ref: 92048A
RACE-STEERING BEARING
€ 11.50
92048B
92048009
ref: 92048B
RACE,STRG STM
€ 14.00
110
112G0616
ref: 110
BOLT UPSET,6X16
€ 1.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
600A
600A0800
ref: 600A
BALL-STEEL,1/4
€ 0.50
