FRAME FITTINGS ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

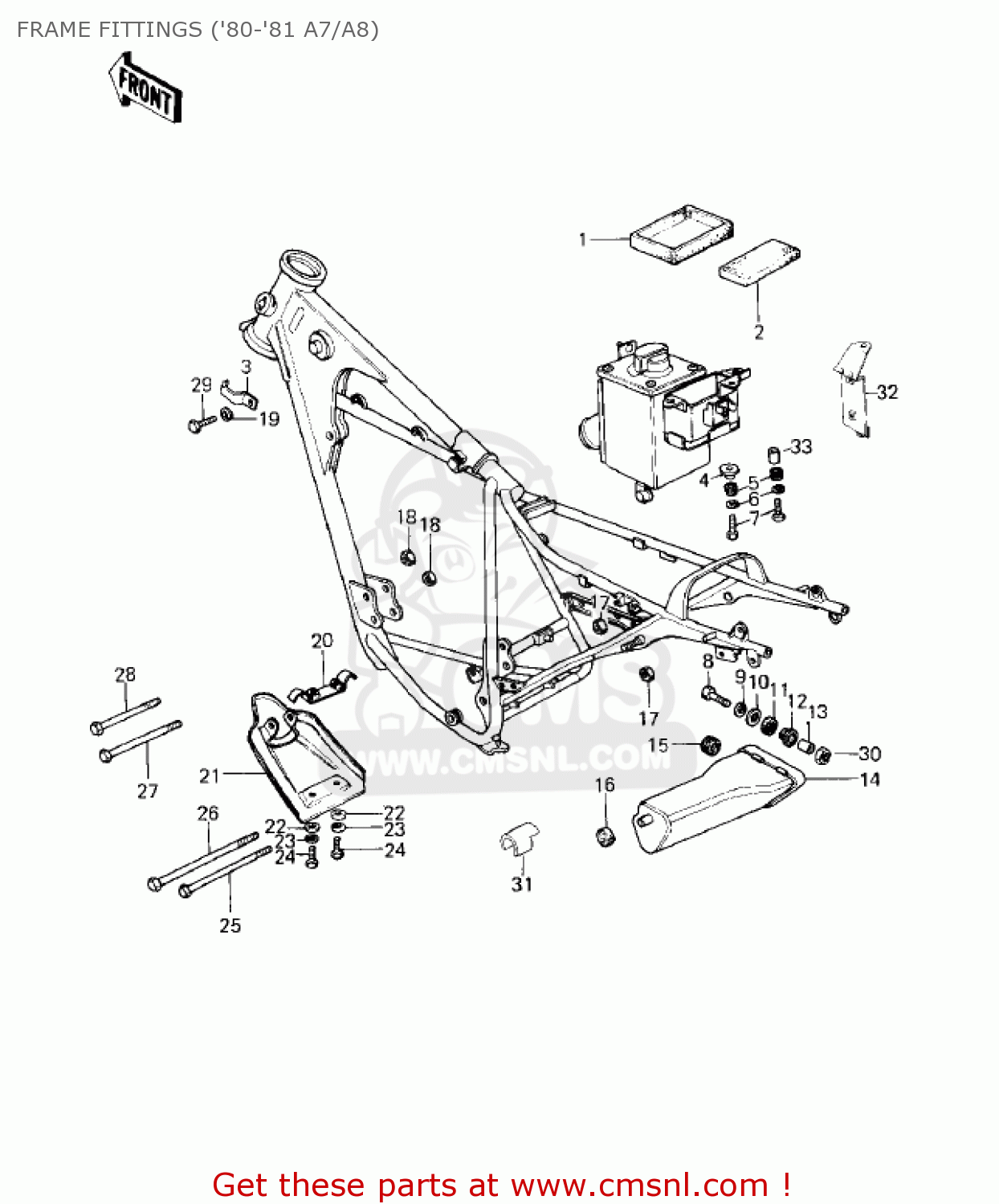

Frame fittings ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
FRAME FITTINGS ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
32103023
ref: 1
DAMPER,BATTERY BOTTOM
€ 2.50
2
32103027
ref: 2
DAMPER,BATTERY
€ 7.50
3
92037150
ref: 3
CLAMP,WIRE HARNESS
€ 4.00
4
92027153
ref: 4
COLLAR
€ 4.00
5
92075051
ref: 5
DAMPER RUBBER
€ 2.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
112G0616
ref: 7
BOLT UPSET,6X16
€ 1.00
8
112G0625
ref: 8
BOLT-UPSET,6X25
€ 4.00
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
92022228
ref: 10
WASHER-PLAIN,7MM
€ 2.50
11
92075175
ref: 11
DAMPER,FEMALE
€ 2.50
12
92075174
ref: 12
DAMPER,MALE
€ 3.00
13
92027162
ref: 13
COLLAR-REAR FENDER
€ 4.50
14
32098022
ref: 14
CASE,TOOL
€ 26.00
15
92075150
ref: 15
DAMPER,OIL TANK
€ 2.50
16
92075107
ref: 16
DAMPER
€ 2.00
17
920151429
ref: 17
NUT,10MM
€ 4.50
18
920151124
ref: 18
NUT,LOCK,8MM
€ 3.50
19
461F0600
ref: 19
WASHER-SPRING,6MM
€ 0.50
20
55016008
ref: 20
BRACKET,ENGINE GUARD
€ 5.50
21
55011020
ref: 21
GUARD,ENGINE
€ 30.50
22
92022125
ref: 22
WASHER,6.5X20X1.6
€ 1.00
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
112G0616
ref: 24
BOLT UPSET,6X16
€ 1.00
25
920011603
ref: 25
BOLT,FLANGED,10X115
€ 7.00
26
920011604
ref: 26
BOLT,FLANGED,10X130
€ 6.00
27
920011583
ref: 27
BOLT,FLANGED,8X70
€ 6.00
28
920011582
ref: 28
BOLT,FLANGED,8X65
€ 3.50
29
112B0614
ref: 29
BOLT-UPSET 6X14
€ 2.50
30
311B0600
ref: 30
NUT,6MM
€ 0.50
31
550201045
ref: 31
GUARD,CHAIN
€ 6.50
32
110341798
ref: 32
REGULATOR BRACKET
€ 8.00
33
92027103
ref: 33
COLLAR
€ 2.50
