METER ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

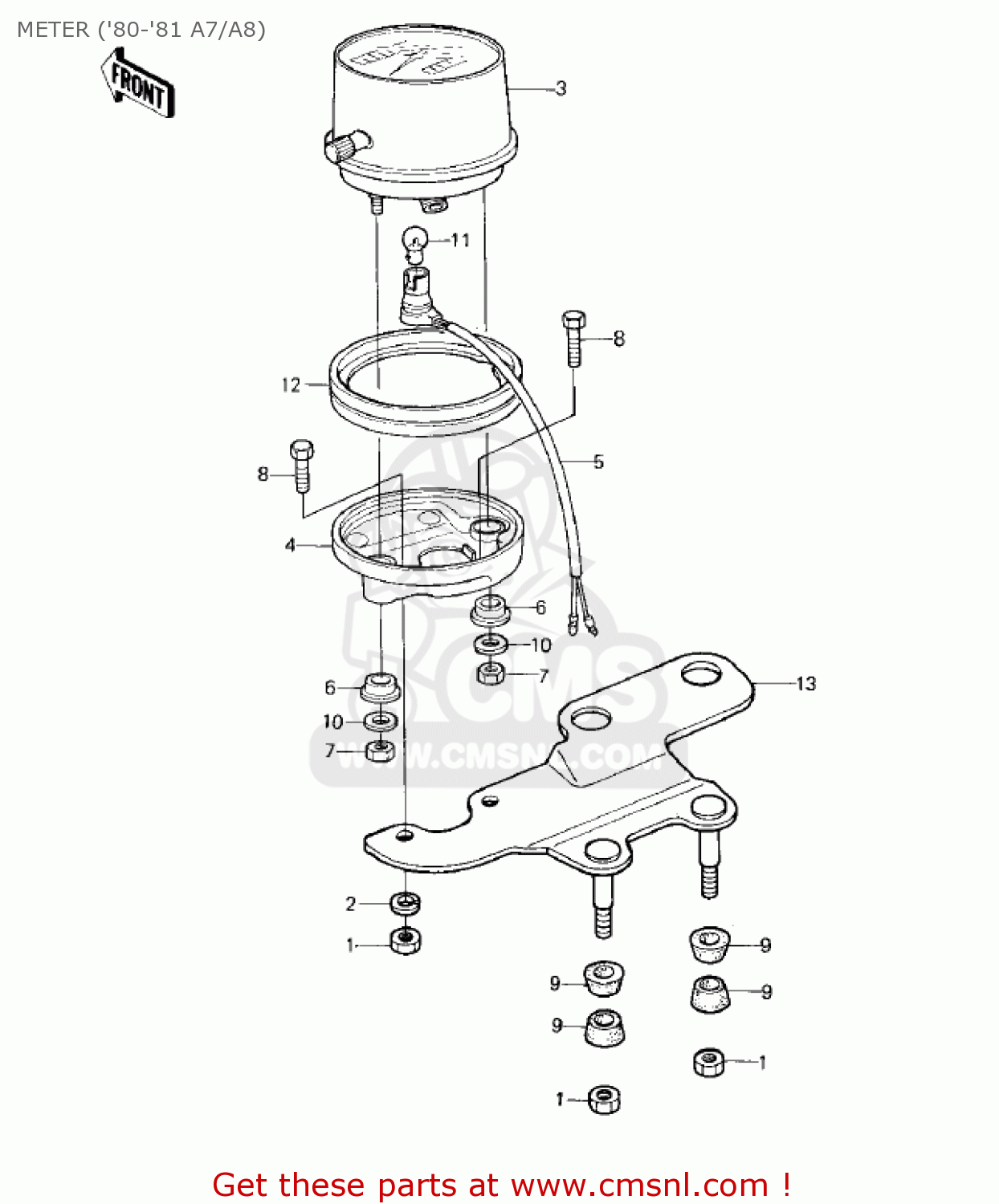

Meter ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
METER ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
311B0600
ref: 1
NUT,6MM
€ 0.50
2
461F0600
ref: 2
WASHER-SPRING,6MM
€ 0.50
3
250051049
ref: 3
SPEEDOMETER,MPH
€ 221.50
3
250051074
ref: 3
SPEEDOMETER,KM/H (Canada)
€ 0.00
4
140251075
ref: 4
COVER,METER
€ 18.50
5
25010021
ref: 5
SOCKET-ASSY,SPEEDOMET
€ 12.00
6
25019023
ref: 6
DAMPER RUBBER,METER
€ 2.50
7
311B0500
ref: 7
NUT-HEX
€ 0.50
8
92003204
ref: 8
BOLT
€ 3.00
9
92075248
ref: 9
DAMPER,METER BRACKET
€ 3.50
10
92022263
ref: 10
WASHER,PLAIN,6MM
€ 1.50
11
92069053
ref: 11
BULB 6V 3W
€ 3.00
12
920751102
ref: 12
DAMPER,METER
€ 13.00
13
250081025
ref: 13
METER BRACKET
€ 37.50
