FENDERS ('82-'83 A9/A10)

KE125-A7 KE125 1980 USA CANADA

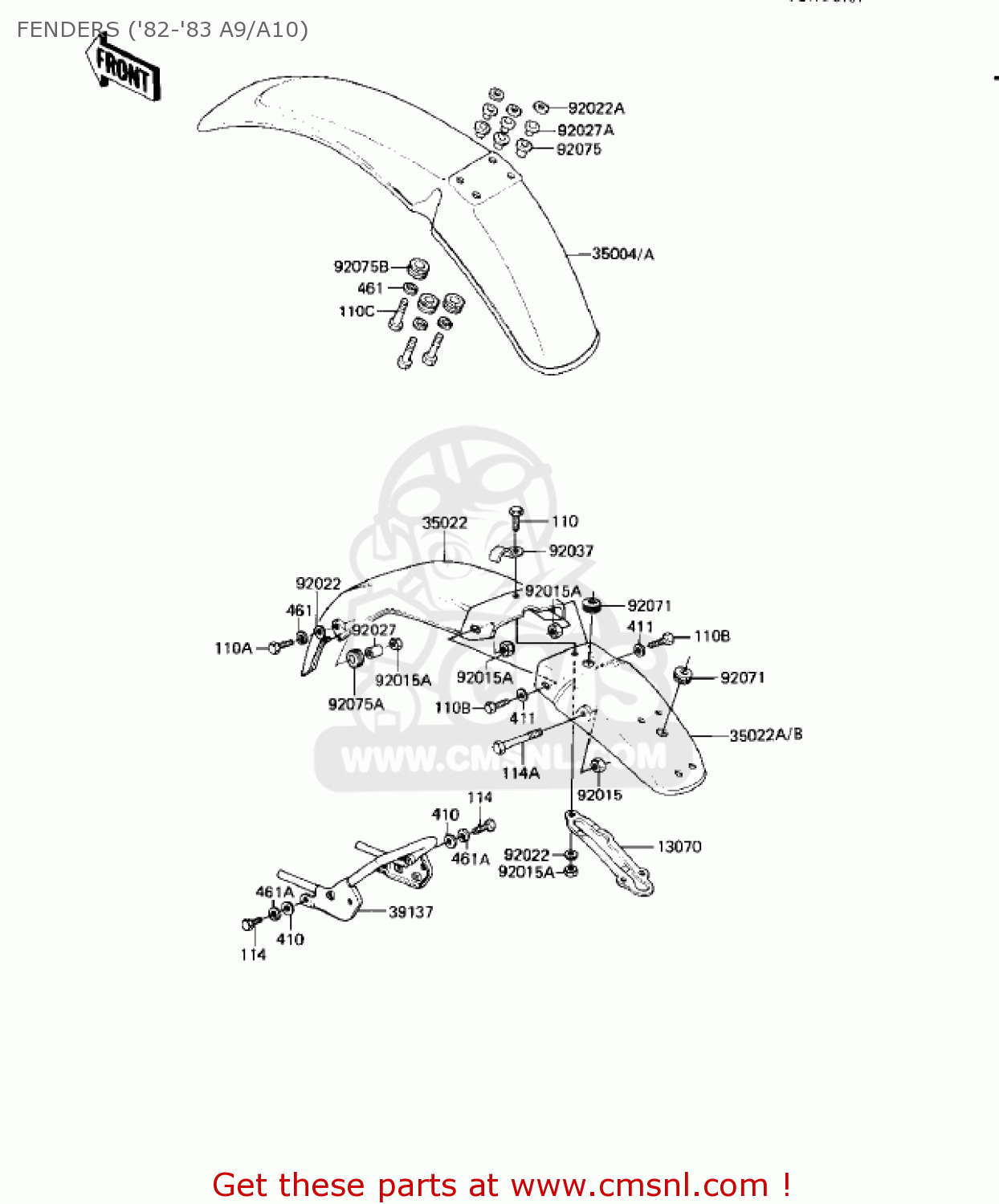

Fenders ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA

FENDERS ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA

FENDERS ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

13070

35021005
ref: 13070

GUSSET,REAR FENDER

€ 6.50

35004

3500410306C
ref: 35004

FENDER-FRONT,EBONY (Canada)

€ 0.00

35004A

3500410306L
ref: 35004A

FENDER,FRONT,F.RED

€ 58.00

35022

35022100
ref: 35022

FENDER-COMP-REAR,FR

€ 33.50

35022A

350221083B1
ref: 35022A

REAR FENDER,FIRECRACKER RED

€ 58.00

35022B

350221083H8
ref: 35022B

FENDER-COMP-REAR,EBONY (Canada

€ 0.00

39137

391371011
ref: 39137

STAY,COMPLETE,REAR

€ 70.00

92015

920151124
ref: 92015

NUT,LOCK,8MM

€ 3.50

92015A

92019008
ref: 92015A

NUT-LOCK,6MM

€ 3.00

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92022A

92022228
ref: 92022A

WASHER-PLAIN,7MM

€ 2.50

92027

92027103
ref: 92027

COLLAR

€ 2.50

92027A

92027194
ref: 92027A

COLLAR

€ 3.50

92037

35024002
ref: 92037

CLAMP,WIRING HARNESS

€ 2.00

92071

92071079
ref: 92071

GROMMET,TL LMP WIRE

€ 1.50

92075

92075103
ref: 92075

DAMPER

€ 2.50

92075A

92075105
ref: 92075A

DAMPER

€ 2.50

92075B

92075121
ref: 92075B

DAMPER,FENDER

€ 2.50

110

112B0614
ref: 110

BOLT-UPSET 6X14

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

110B

112G0618
ref: 110B

BOLT-UPSET

€ 0.50

110C

112G0625
ref: 110C

BOLT-UPSET,6X25

€ 4.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

114A

115G0845
ref: 114A

BOLT-SMALL-UPSET

€ 3.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50
