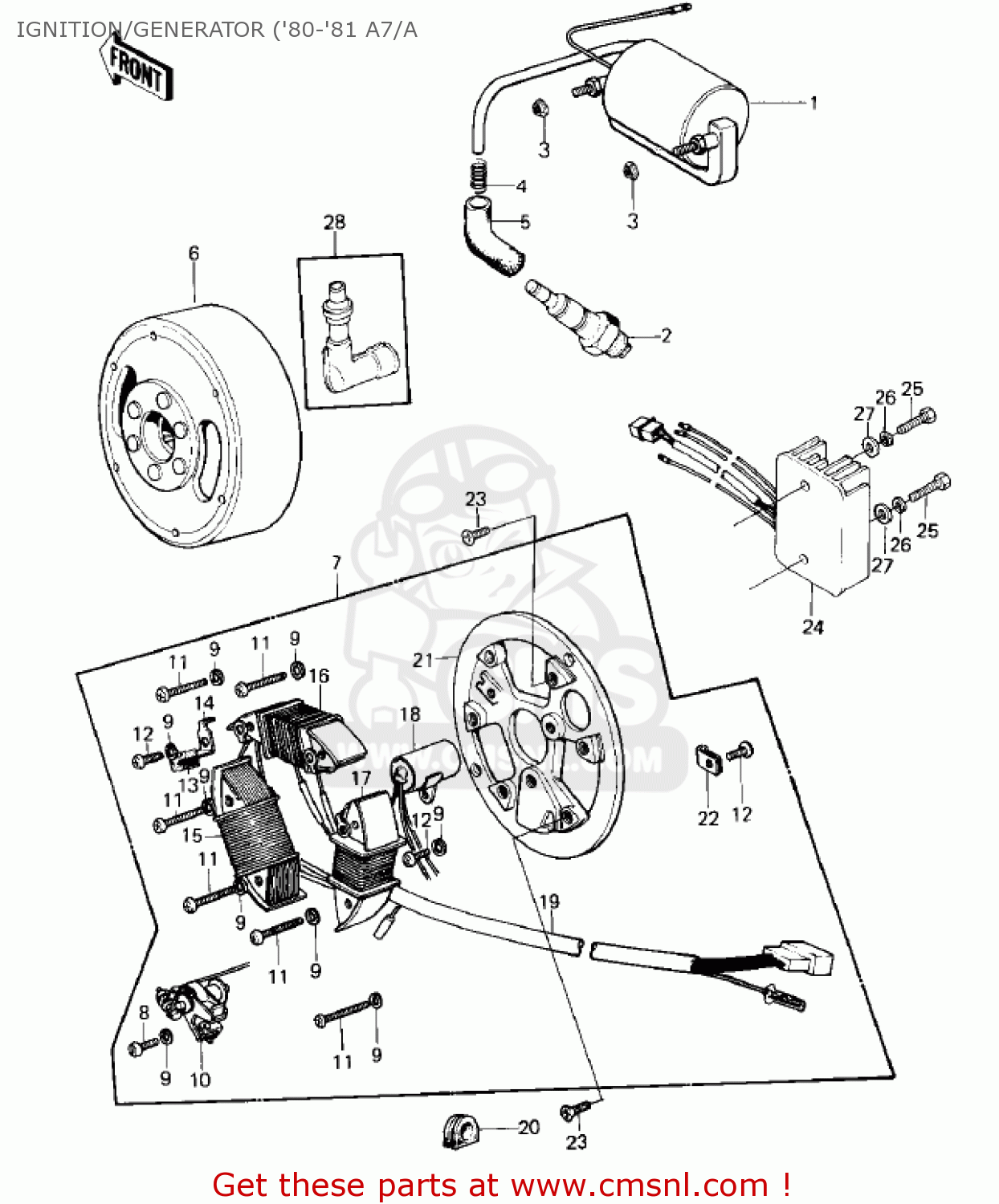

IGNITION/GENERATOR ('80-'81 A7/A

KE125-A7 KE125 1980 USA CANADA

Ignition/generator ('80-'81 a7/a diagram KE125-A7 KE125 1980 USA CANADA

IGNITION/GENERATOR ('80-'81 A7/A KE125-A7 KE125 1980 USA CANADA

IGNITION/GENERATOR ('80-'81 A7/A KE125-A7 KE125 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

211211047
ref: 1

COIL-IGNITION

€ 115.50

2

B8ESA
ref: 2

NGK SPARK-PLUG B8ES

€ 3.00

3

920151078
ref: 3

NUT,6M/M

€ 1.50

4

92101001
ref: 4

SPRING-SPARK PLUG CAP

€ 1.50

5

21130009
ref: 5

CAP-SPARK PLUG

€ 15.00

6

210501008
ref: 6

FLYWHEEL,MAGNETO

€ 275.50

7

210031014
ref: 7

STATOR

€ 203.50

8

220B0412
ref: 8

SCREW-PAN CROS 4X12

€ 0.50

9

461F0400
ref: 9

WASHER-SPRING,4MM

€ 0.50

10

21008006
ref: 10

BREAKER ASSY-CONTACT

€ 33.50

11

220E0430
ref: 11

SCREW-PAN-CROS

€ 2.50

12

220B0406
ref: 12

SCREW-PAN-CROS,4X6

€ 2.50

13

21019005
ref: 13

BRUSH,OIL

€ 3.00

14

21038002
ref: 14

HOLDER,OIL FELT

€ 2.00

15

590311002
ref: 15

COIL-CHARGING,B

€ 68.50

16

590311001
ref: 16

COIL-CHARGING,A

€ 65.00

17

210491004
ref: 17

COIL-EXCITING

€ 73.50

18

21013006
ref: 18

CONDENSER

€ 21.00

19

260011077
ref: 19

MAGNETO WIRING HARNESS

€ 40.00

20

21017002
ref: 20

GROMMET

€ 3.00

21

210481002
ref: 21

PLATE-COIL,MAGNETO

€ 46.50

22

21037002
ref: 22

CLAMP,WIRING HARNESS

€ 2.50

23

221B0614
ref: 23

SCREW-CNTSNK HD,6X14

€ 2.50

24

210661012
ref: 24

REGULATOR-VOLTAGE

€ 148.50

25

112G0625
ref: 25

BOLT-UPSET,6X25

€ 4.00

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

411B0600
ref: 27

WASHER-PLAIN,6MM

€ 0.50

28

21160005
ref: 28

CAP-ASSY-PLUG

€ 29.00
