IGNITION SWITCH/LOCKS/REFLECTORS

KE125-A7 KE125 1980 USA CANADA

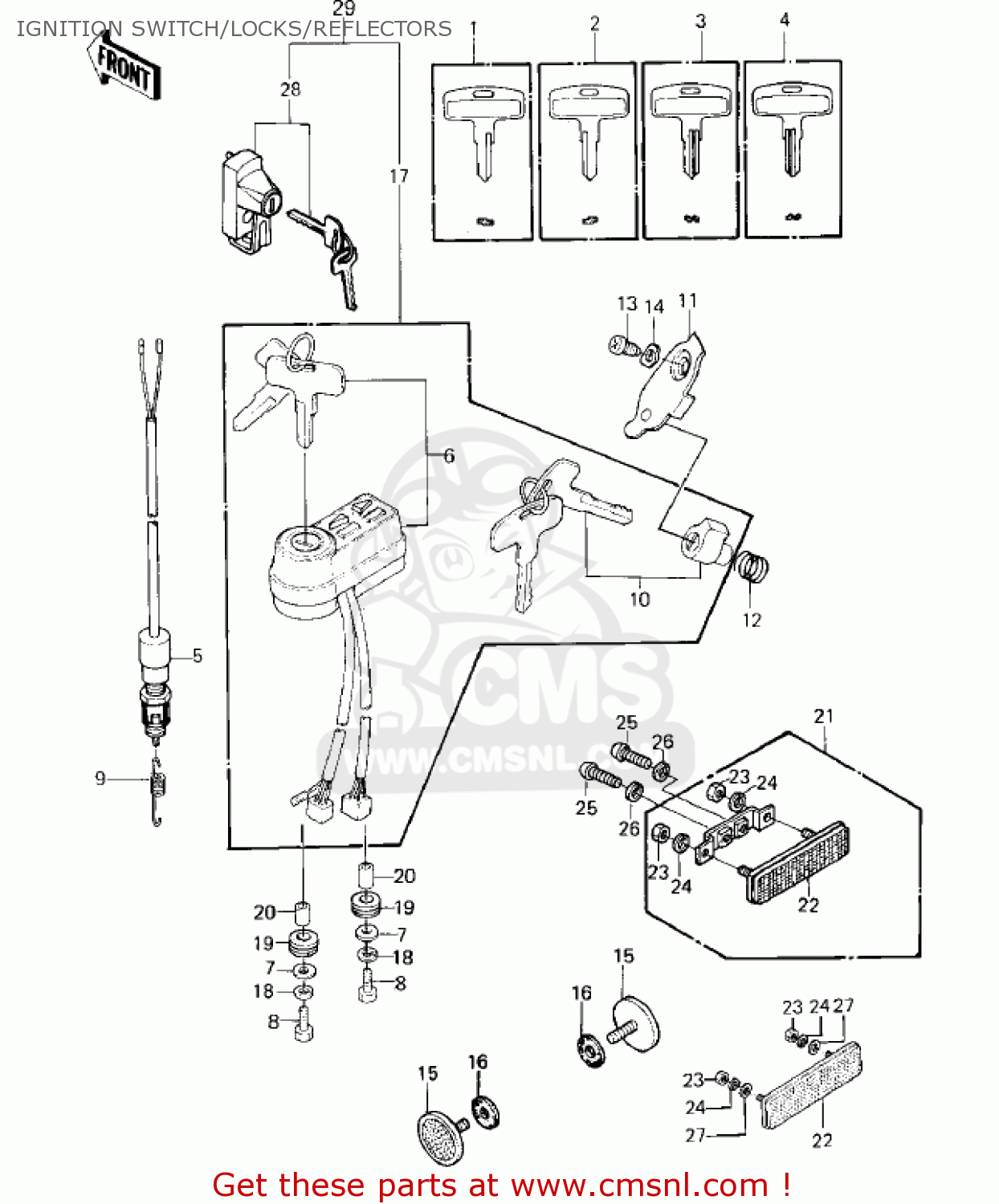

Ignition switch/locks/reflectors diagram KE125-A7 KE125 1980 USA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS KE125-A7 KE125 1980 USA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS KE125-A7 KE125 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

270081024
ref: 1
OPTION

KEY-LOCK,BLANK

€ 14.00

2

270081025
ref: 2
OPTION

KEY-LOCK,BLANK

€ 14.00

3

270081026
ref: 3
OPTION

KEY-LOCK,BLANK

€ 10.50

4

270081027
ref: 4
OPTION

KEY-LOCK,BLANK

€ 10.50

5

27010025
ref: 5

SWITCH,BRAKE LAMP

€ 18.50

6

270051040
ref: 6

IGNITION SWITCH ASSEMBLY

€ 89.50

7

92022125
ref: 7

WASHER,6.5X20X1.6

€ 1.00

8

112B0622
ref: 8

BOLT, 6X22

€ 2.50

9

27011006
ref: 9

SPRING-BRAKE LAMP SW

€ 3.50

10

27016042
ref: 10

LOCK-ASSY,STEERING

€ 36.00

11

110121134
ref: 11

CAP,STEERING LOCK

€ 4.50

12

27032001
ref: 12

SPRING-STEERING LOCK

€ 3.50

13

92008007
ref: 13

SCREW-TAPPING

€ 2.50

14

92097003
ref: 14

WASHER

€ 2.50

15

28012016
ref: 15

REFLECTOR REFLEX

€ 16.00

16

92094011
ref: 16

DAMPER,REFLECTOR

€ 3.00

17

270045072
ref: 17
OPTION

LOCK ASSEMBLY,KE125-A7

€ 53.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

92075209
ref: 19

DAMPER RUBBER

€ 3.00

20

92027241
ref: 20

COLLAR

€ 4.50

21

280011011
ref: 21
KE125-A7

REFLECTOR ASSEMBLY,REFLEX

€ 8.50

22

280121005
ref: 22

REFLECTOR-REFLEX,RR

€ 16.50

23

311B0500
ref: 23

NUT-HEX

€ 0.50

24

461F0500
ref: 24

WASHER-SPRING,5MM

€ 0.50

25

220B0612
ref: 25
KE125-A7

SCREW-PAN HEAD,6X12

€ 1.00

26

461F0600
ref: 26
KE125-A7

WASHER-SPRING,6MM

€ 0.50

27

411B0500
ref: 27
KE125-A8

WASHER-PLAIN,5MM

€ 0.50

28

270165032
ref: 28
KE125-A8

LOCK ASSY,HELMET

€ 38.00

29

270045120
ref: 29
OPTION

SWITCH ASSEMBLY

€ 85.00
