CLUTCH ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

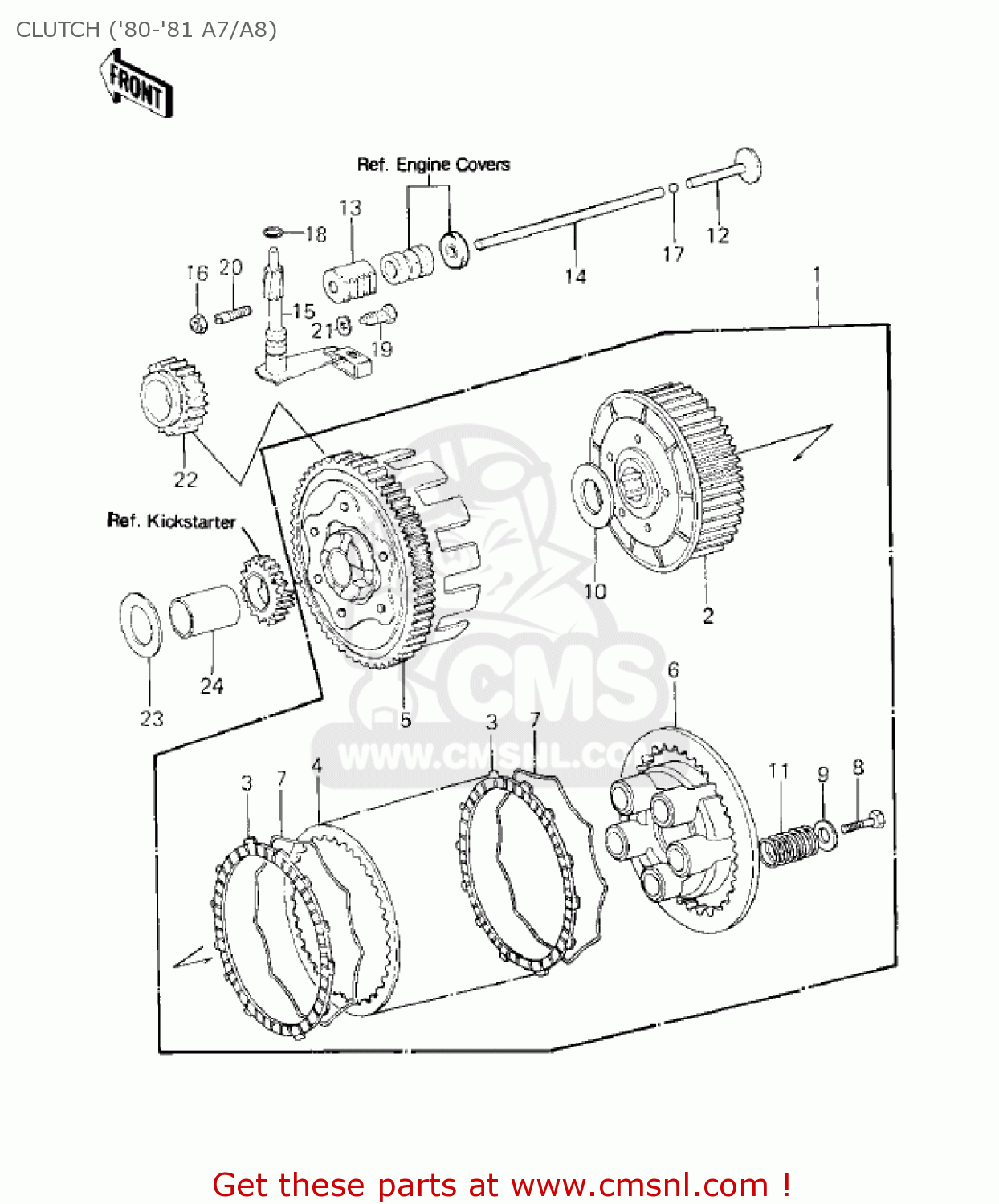

Clutch ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
CLUTCH ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
130811053
ref: 1
KE125-A7
CLUTCH ASSY
€ 187.50
2
130811053
ref: 2
KE125-A8
CLUTCH ASSY
€ 187.50
2
13087038
ref: 2
HUB-CLUTCH
€ 52.00
3
130881015
ref: 3
PLATE-FRICTION (NAS)
€ 11.50
4
13089003
ref: 4
PLATE-CLUTCH,STEEL (NAS)
€ 7.50
5
130951034
ref: 5
KE125-A7
HOUSING-COMP-CLUTCH
€ 271.00
5
130951034
ref: 5
KE125-A8
HOUSING-COMP-CLUTCH
€ 271.00
6
13187004
ref: 6
PLATE-CLUTCH OPERATIN (NAS)
€ 24.50
7
13229002
ref: 7
SPRING,CLUTCH STEEL
€ 7.50
8
92003078
ref: 8
BOLT,5X18
€ 2.00
9
92022167
ref: 9
WASHER-PLAIN,5MM
€ 1.50
10
92022270
ref: 10
WASHER,PLAIN
€ 7.00
11
92081123
ref: 11
SPRING,CLUTCH
€ 4.50
12
13116016
ref: 12
ROD-PUSH,CLUTCH SPRIN
€ 11.50
13
13116026
ref: 13
ROD-PUSH,CLUTCH RELEA
€ 19.50
14
13116027
ref: 14
ROD-PUSH,CLUTCH
€ 10.50
15
13234003
ref: 15
SHAFT-COMP,CLUTCH REL
€ 59.00
16
311B0600
ref: 16
NUT,6MM
€ 0.50
17
600A0700
ref: 17
BALL-STEEL,7/32
€ 2.50
18
670B2010
ref: 18
O RING,10MM
€ 1.00
19
92003130
ref: 19
BOLT,CLUTCH RELEASE
€ 3.50
20
92014015
ref: 20
SCREW,SET,6X26
€ 6.50
21
92031009
ref: 21
WASHER,LOCK
€ 2.00
22
130971040
ref: 22
KE125-A7
GEAR-PRIMARY SPUR,22T
€ 86.00
22
130971040
ref: 22
KE125-A8
GEAR-PRIMARY SPUR,22T
€ 86.00
23
92022270
ref: 23
WASHER,PLAIN
€ 7.00
24
92028138
ref: 24
BUSHING,17X22X33.5
€ 23.50
