HEADLIGHT ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

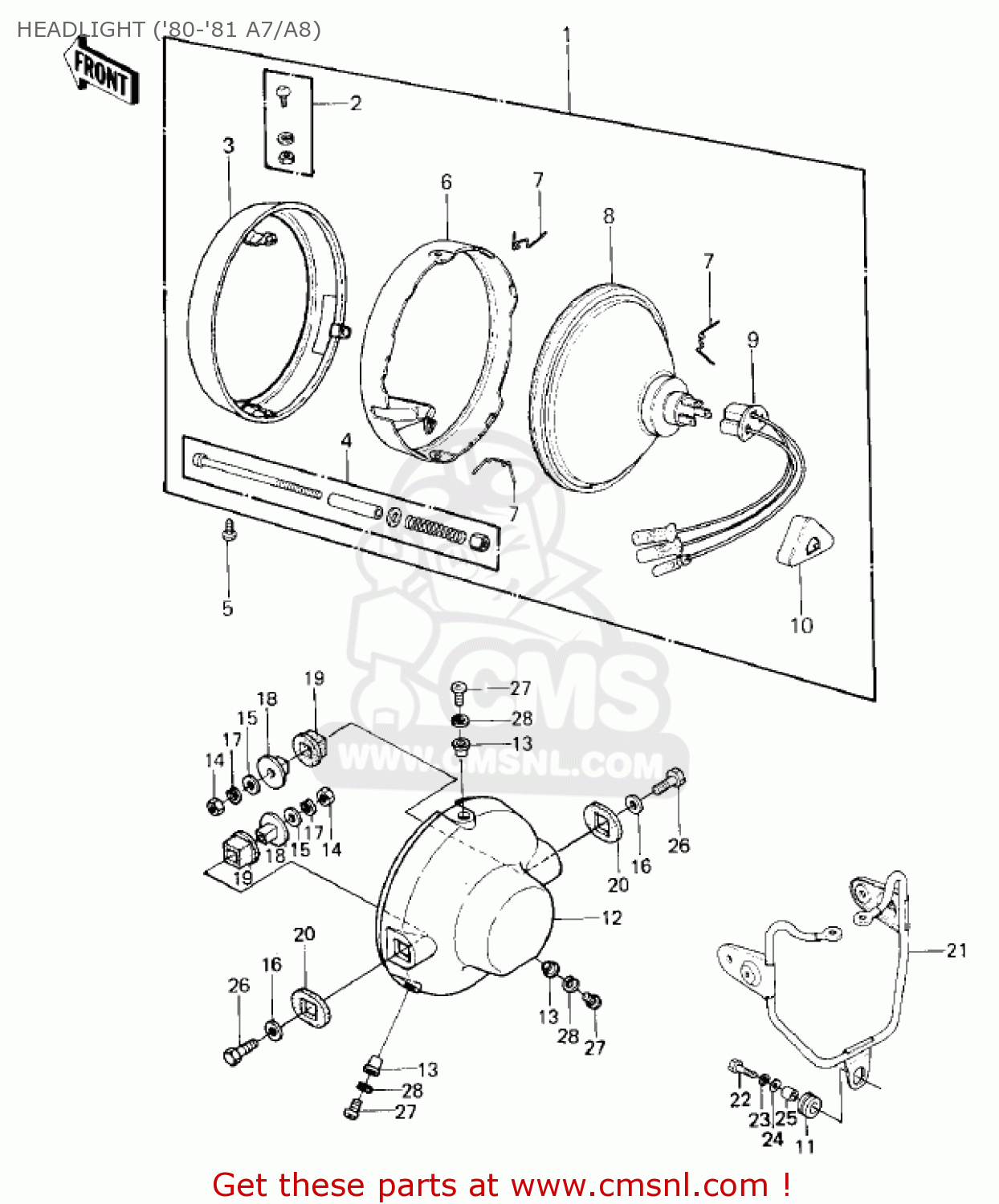

Headlight ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
HEADLIGHT ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
230041030
ref: 1
LAMP-HEAD
€ 221.50
2
23013007
ref: 2
SCREW ASY,LENS UNIT
€ 3.50
3
230061004
ref: 3
RIM-LAMP
€ 56.00
4
230135001
ref: 4
SCREW ASSY,FOCUS AJST
€ 10.50
5
220B0512
ref: 5
SCREW-PAN-CROS
€ 0.50
6
23072002
ref: 6
RETAINER,SEALED BEAM
€ 29.50
7
23009015
ref: 7
SPRING,HEAD LAMP LENS
€ 3.50
8
23007055
ref: 8
LENS-COMP,4020 MARK
€ 60.00
9
23008044
ref: 9
SOCKET-ASSY,HEAD LAMP
€ 15.00
10
23081001
ref: 10
COVER,HD LAMP SOCKET
€ 6.50
11
92075209
ref: 11
DAMPER RUBBER
€ 3.00
12
2300510076Z
ref: 12
BODY-COMP-HEAD LAMP,B
€ 71.50
13
23021010
ref: 13
WASHER
€ 2.50
14
317B0800
ref: 14
NUT,8M/M
€ 0.50
15
411B0800
ref: 15
WASHER-PLAIN,8MM
€ 0.50
16
411D0800
ref: 16
WASHER,PLAIN,8MM
€ 2.00
17
461F0800
ref: 17
WASHER-SPRING,8MM
€ 0.50
18
920271105
ref: 18
COLLAR,L=15.6
€ 4.50
19
920751077
ref: 19
DAMPER,HEAD LAMP
€ 3.00
20
920751078
ref: 20
DAMPER,HEAD LAMP
€ 3.00
21
110341701
ref: 21
HEADLAMP BODY BRACKET
€ 52.50
22
112G0625
ref: 22
BOLT-UPSET,6X25
€ 4.00
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
92022125
ref: 24
WASHER,6.5X20X1.6
€ 1.00
25
92027241
ref: 25
COLLAR
€ 4.50
26
114N0832
ref: 26
BOLT-SMALL,8X32
€ 3.00
27
220B0512
ref: 27
SCREW-PAN-CROS
€ 0.50
28
461F0500
ref: 28
WASHER-SPRING,5MM
€ 0.50
