FOOTRESTS ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

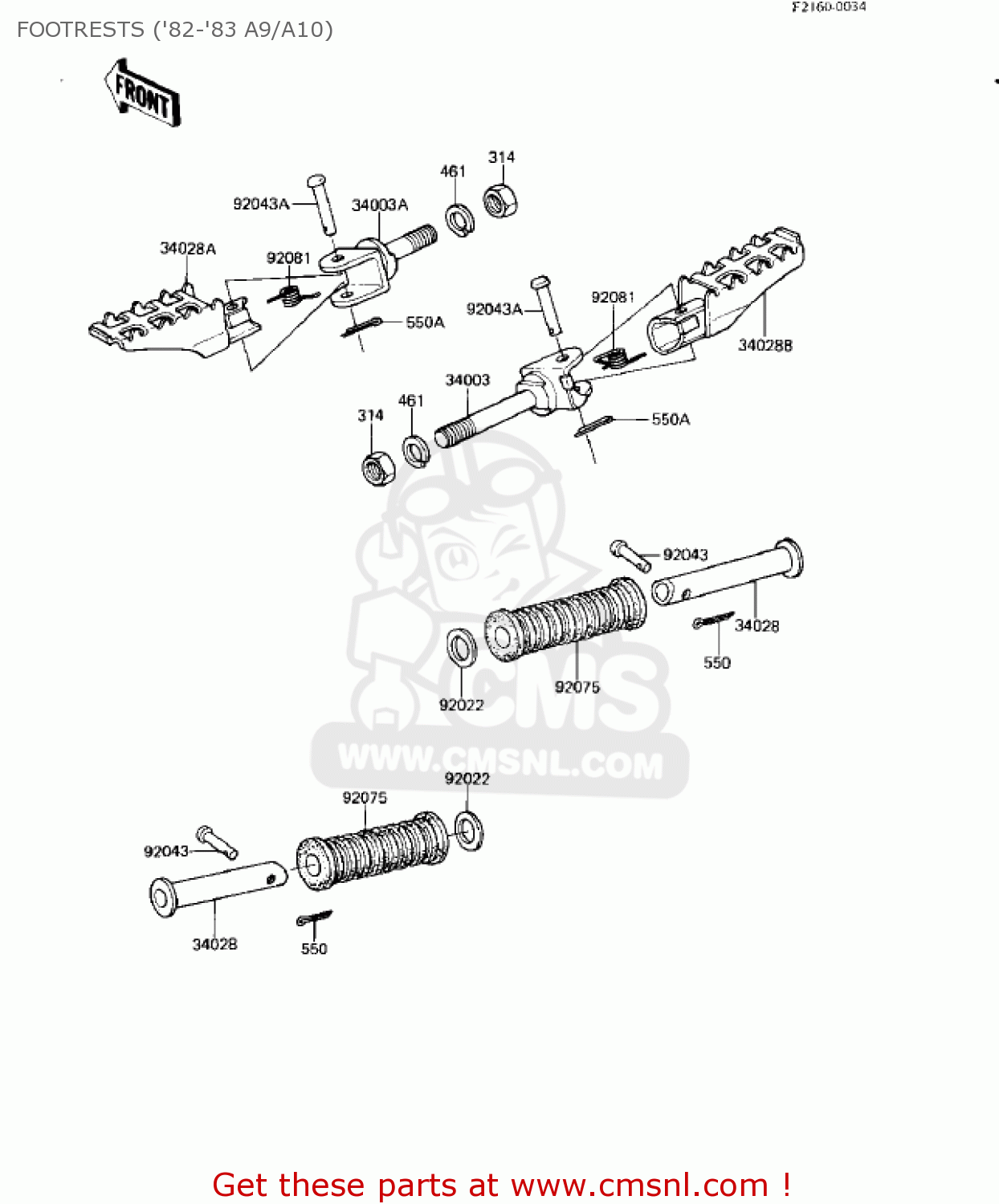

Footrests ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
FOOTRESTS ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
34003
340031111
ref: 34003
HOLDER-STEP,RH
€ 28.50
34003A
340031112
ref: 34003A
HOLDER-STEP,FR,LH
€ 29.50
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
34028A
340281013
ref: 34028A
STEP,FR,LH
€ 38.00
34028B
340281014
ref: 34028B
STEP,FR,RH
€ 36.00
92022
92022199
ref: 92022
WASHER,20X30X2.3
€ 5.00
92043
920431464
ref: 92043
PIN
€ 5.50
92043A
92043080
ref: 92043A
PIN-FOOTREST BAR FIT
€ 3.50
92075
92076024
ref: 92075
DAMPER,STEP
€ 14.50
92081
920811133
ref: 92081
SPRING,FOOTREST STEP
€ 4.00
314
314B1400
ref: 314
NUT,14MM
€ 1.00
461
461F1400
ref: 461
WASHER-SPRING,14MM
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
