CRANKCASE ('82-'83 A9/A10)
KE125-A7 KE125 1980 USA CANADA

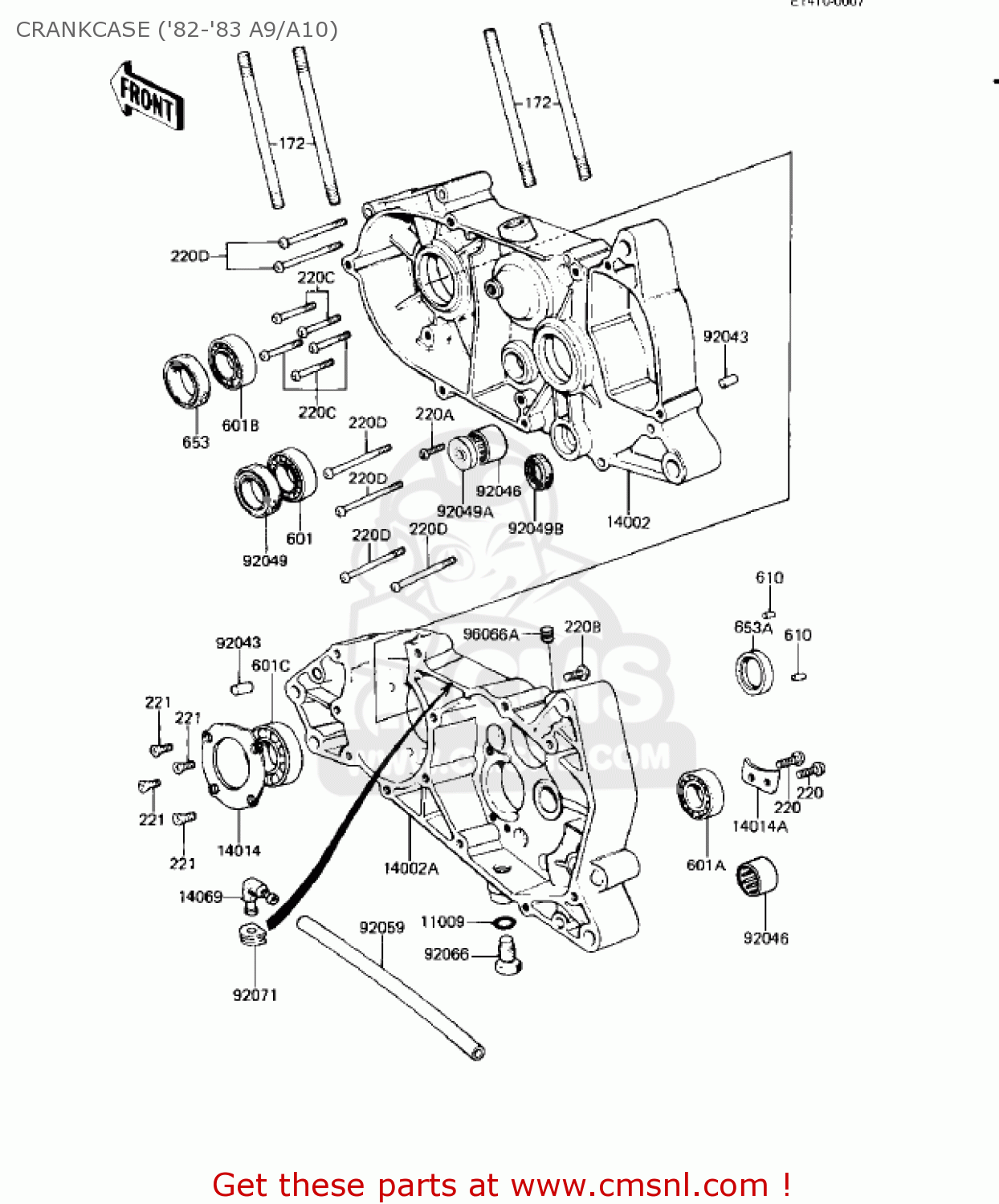

Crankcase ('82-'83 a9/a10) diagram KE125-A7 KE125 1980 USA CANADA
CRANKCASE ('82-'83 A9/A10) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
92065073
ref: 11009
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
14002
140015138
ref: 14002
SET-CRANKCASE,F.BLACK
€ 514.50
14002A
140015138
ref: 14002A
SET-CRANKCASE,F.BLACK
€ 514.50
14014
14014028
ref: 14014
PLATE,CRANK BEARING
€ 4.50
14014A
14014029
ref: 14014A
PLATE,MISSION BEARNG
€ 2.00
14069
140691001
ref: 14069
BREATHER
€ 17.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
€ 0.50
92046
92046037
ref: 92046
BEARING-NEEDLE,7E-HK1
€ 17.00
92049
92050013
ref: 92049
OIL SEAL SC25376
€ 9.50
92049A
92050058
ref: 92049A
OIL SEAL,PUSH ROD
€ 5.50
92049B
920491271
ref: 92049B
SEAL, OIL
€ 7.00
92059
140691001
ref: 92059
BREATHER
€ 17.50
92066
920661240
ref: 92066
PLUG,DRAIN
€ 4.50
92066A
92074035
ref: 92066A
PLUG,15X19
€ 4.50
92071
92071042
ref: 92071
GROMMET
€ 2.50
172
172G0870
ref: 172
STUD,8X70
€ 3.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
220A
220B0620
ref: 220A
SCREW-PAN HEAD,6X20
€ 2.50
220B
220B0625
ref: 220B
SCREW-PAN HEAD,6X25
€ 1.50
220C
220B0640
ref: 220C
SCREW-PAN HEAD,6X40
€ 2.00
220D
220B0660
ref: 220D
SCREW-PAN HEAD,6X60
€ 2.50
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
601
601B6004
ref: 601
BEARING-BALL,#6004C3
€ 10.50
601A
601B6203
ref: 601A
BEARING-BALL,#6203C3
€ 10.50
601B
601B6204
ref: 601B
BEARING-BALL,#6204C3
€ 8.00
601C
601B6304
ref: 601C
BEARING-BALL,#6304C3
€ 31.00
610
610A0512
ref: 610
ROLLER,5X12
€ 3.00
653
920491240
ref: 653
SEAL-OIL
€ 10.50
653A
920491250
ref: 653A
SEAL-OIL
€ 12.00
