MUFFLER ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

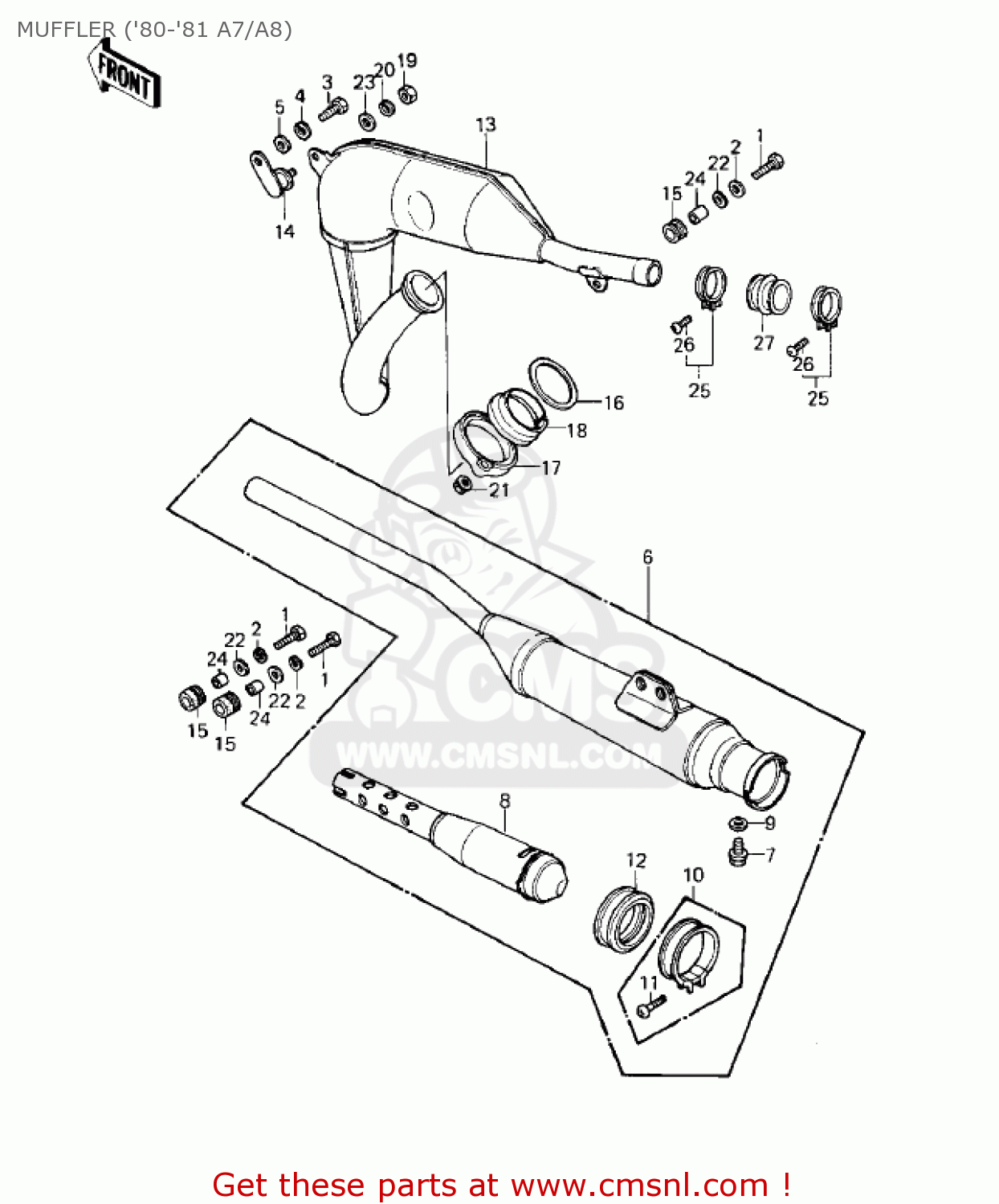

Muffler ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
MUFFLER ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
114G0828
ref: 1
BOLT-SMALL,8X28
€ 2.50
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
115G0816
ref: 3
BOLT-HEX,HEAD 8X16
€ 0.50
4
461F0800
ref: 4
WASHER-SPRING,8MM
€ 0.50
5
410B0800
ref: 5
WASHER-PLAIN-SMALL,8M
€ 0.50
6
180011279
ref: 6
MUFFLER
€ 153.50
7
110B0608
ref: 7
BOLT-HEX HEAD,6X8
€ 0.50
8
490991028
ref: 8
MUFFLER PIPE BAFFLE
€ 56.00
9
92022077
ref: 9
WASHER,6.1X12X1
€ 0.50
10
92037171
ref: 10
CLAMP
€ 9.00
11
220B0535
ref: 11
SCREW-PAN-CROS
€ 2.00
12
920931013
ref: 12
SEAL,MUFFLER
€ 7.50
13
180061135
ref: 13
BODY-MUFFLER
€ 194.00
14
18061060
ref: 14
BRACKET,MUFFLER
€ 16.50
15
18063005
ref: 15
DAMPER,MUFFLER
€ 3.00
16
18067008
ref: 16
GASKET-EXHAUST PIPE (NAS)
€ 10.50
17
18069057
ref: 17
HOLDER-EXHAUST PIPE
€ 25.50
18
18070007
ref: 18
COLLAR,EXHAUST PIPE H
€ 6.50
19
317B0800
ref: 19
NUT,8M/M
€ 0.50
20
461F0800
ref: 20
WASHER-SPRING,8MM
€ 0.50
21
92017013
ref: 21
NUT,LOCK,8MM
€ 5.50
22
920221564
ref: 22
WASHER
€ 2.50
23
920221561
ref: 23
WASHER,8.5X20X1.6
€ 2.50
24
92027102
ref: 24
COLLAR
€ 1.00
25
920371127
ref: 25
CLAMP,CONNECTOR
€ 7.00
26
220B0525
ref: 26
SCREW-PAN-CROS,5X25
€ 2.50
27
920931020
ref: 27
SEAL,MUFFLER CONNECTI
€ 17.50
