TRANSMISSION ('80-'81 A7/A8)
KE125-A7 KE125 1980 USA CANADA

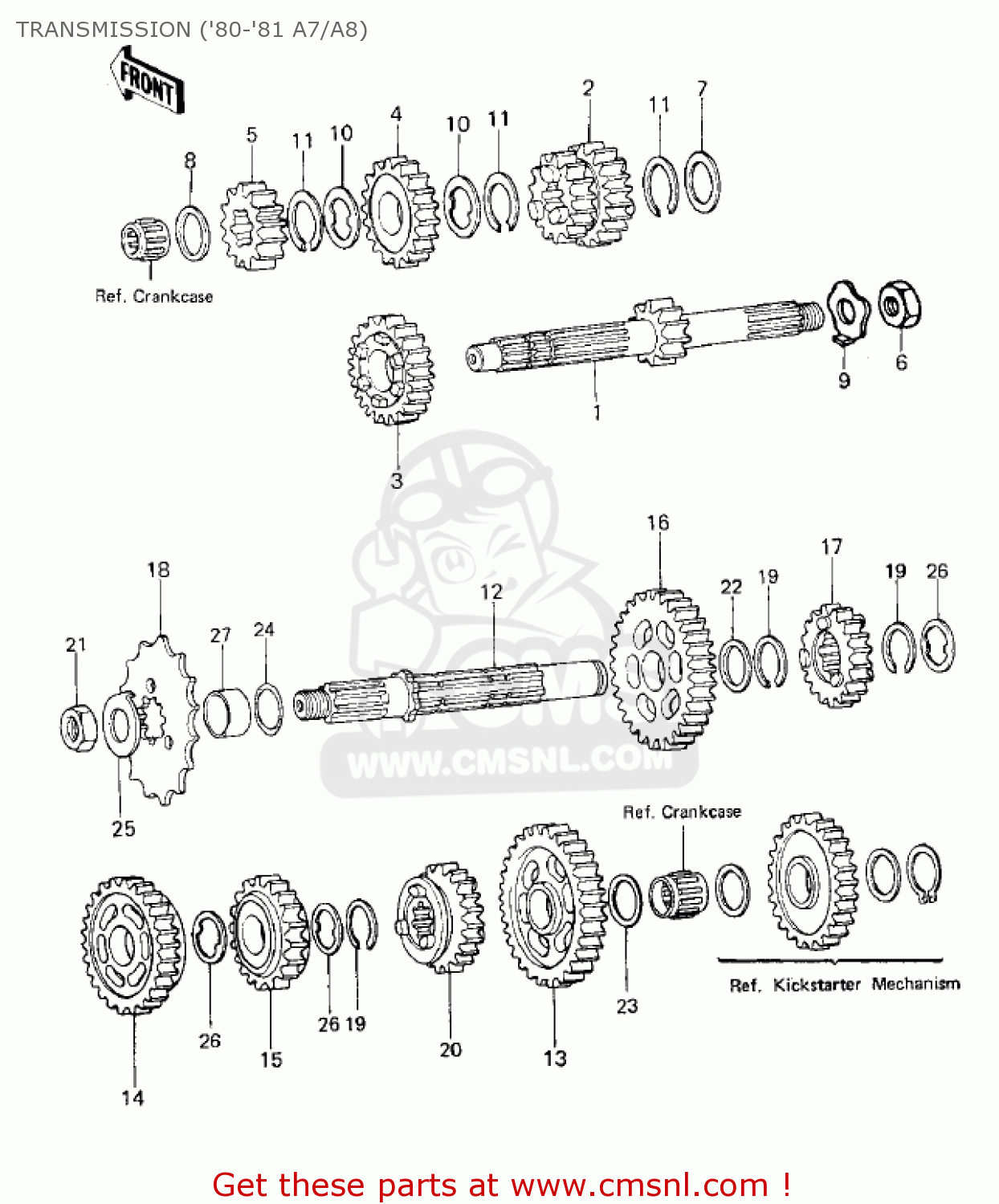

Transmission ('80-'81 a7/a8) diagram KE125-A7 KE125 1980 USA CANADA
TRANSMISSION ('80-'81 A7/A8) KE125-A7 KE125 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13127045
ref: 1
SHAFT,DRIVE,10T
€ 97.00
2
131291010
ref: 2
GEAR,INPUT 3RD&4TH,16
€ 86.50
3
131291018
ref: 3
5TH GEAR, DRIVE SHAFT
€ 50.50
4
131291021
ref: 4
GEAR,INPUT TOP,20T
€ 57.00
5
13130036
ref: 5
2ND GEAR,DRIVE SHAFT
€ 25.00
6
315B1400
ref: 6
NUT,14MM
€ 1.00
7
92022271
ref: 7
WASHER,PLAIN
€ 3.50
8
92022272
ref: 8
WASHER,PLAIN
€ 6.00
9
92024046
ref: 9
WASHER,LOCK,14MM
€ 2.00
10
92024055
ref: 10
WASHER,TOOTHED,18.5X2
€ 2.50
11
92033028
ref: 11
CIRCLIP
€ 6.00
12
13128040
ref: 12
SHAFT-TRANSMISSION OU
€ 108.50
13
13129050
ref: 13
GEAR,OUTPUT LOW,26T
€ 38.00
14
131291011
ref: 14
GEAR,OUTPUT 3RD,20T
€ 26.00
15
131291015
ref: 15
GEAR,OUTPUT 4TH,23T
€ 72.50
16
13131043
ref: 16
2ND GEAR,OUTPUT SHFT
€ 47.00
17
13137043
ref: 17
GEAR,OUTPUT TOP,16T
€ 54.50
18
131441058
ref: 18
SPROCKET-OUTPUT,14T
€ 20.00
18
13144053
ref: 18
SPROCKET-OUTPUT,13T
€ 30.00
18
13144054
ref: 18
SPROCKET-OUTPUT,15T
€ 30.00
19
92033028
ref: 19
CIRCLIP
€ 6.00
20
13248003
ref: 20
5TH GEAR, OUTPUT
€ 42.00
21
315B1400
ref: 21
NUT,14MM
€ 1.00
22
92022271
ref: 22
WASHER,PLAIN
€ 3.50
23
92022273
ref: 23
WASHER,14.3X24X1
€ 6.00
24
92055022
ref: 24
'O' RING
€ 4.00
25
92024052
ref: 25
WASHER,CLAW,14.3X32X1
€ 3.50
26
92024055
ref: 26
WASHER,TOOTHED,18.5X2
€ 2.50
27
920271077
ref: 27
COLLAR,20X25X12.5
€ 14.00
