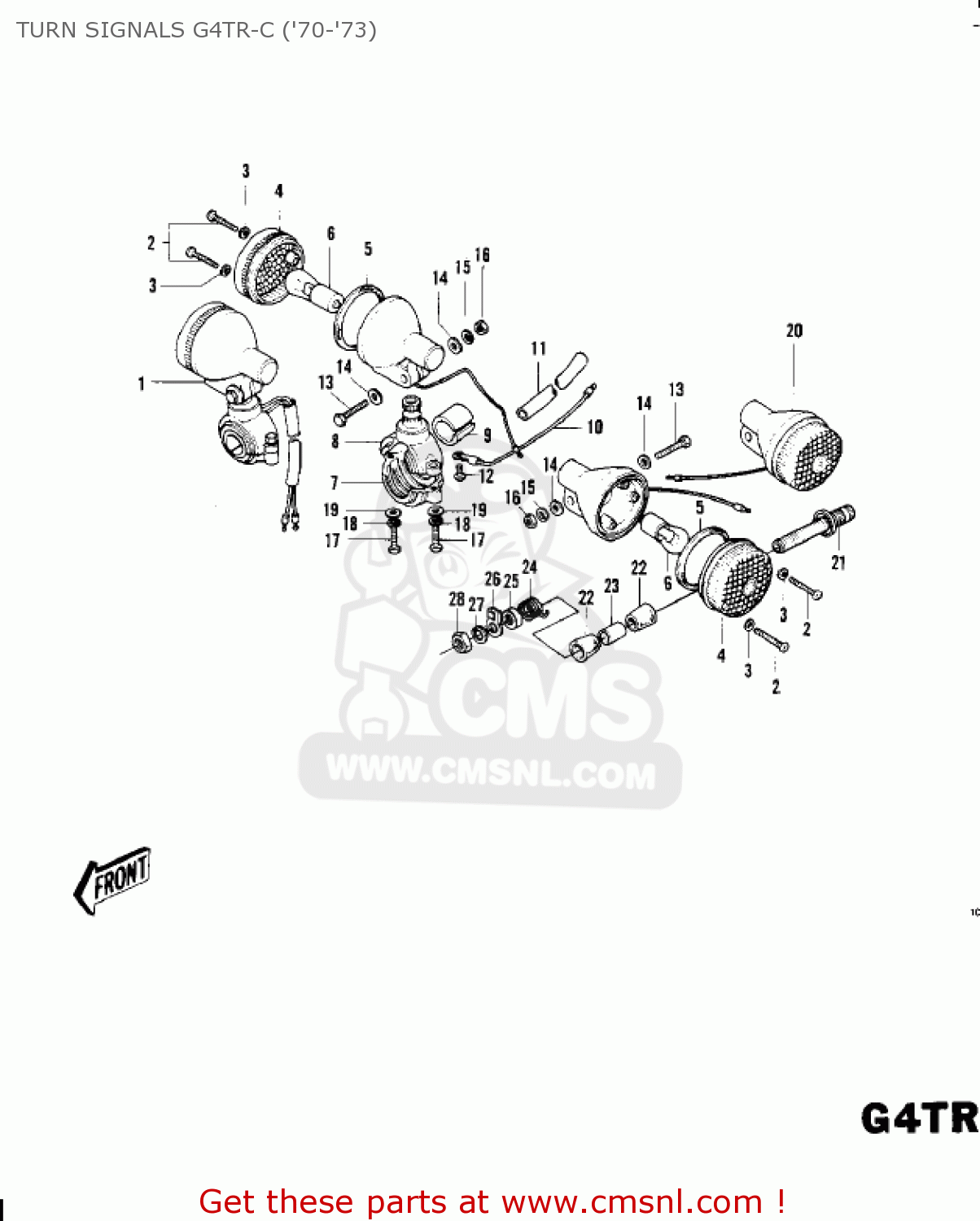

TURN SIGNALS G4TR-C ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

Turn signals g4tr-c ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

TURN SIGNALS G4TR-C ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

TURN SIGNALS G4TR-C ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

23037005
ref: 1

LAMP ASY-FR TURN SIG

€ 53.50

2

220E0420A
ref: 2

SCREW-PAN HEAD,4X20

€ 2.50

3

23058002
ref: 3

WASHER,PLAIN,4MM

€ 2.00

4

230481001
ref: 4

LENS-SIGNAL LAMP,045-

€ 10.50

5

23050003
ref: 5

GASKET,SIGNAL LAMP (NAS)

€ 3.50

6

92069056
ref: 6

BULB,6V 21CP

€ 4.50

7

230511013
ref: 7

BRACKET-SIGNAL LAMP,F

€ 11.50

8

230511004
ref: 8

BRACKET-SIGNAL LAMP,F

€ 23.00

9

23066003
ref: 9

DAMPER

€ 3.50

10

26011061
ref: 10

WIRE-LEAD,SIGNAL LAMP

€ 2.50

11

26009004
ref: 11

COVER-WIRING HARNESS

€ 1.00

12

220B0305A
ref: 12

SCREW-PAN HEAD,3X5

€ 1.00

13

112G0630
ref: 13

BOLT-UPSET

€ 1.00

14

410B0600
ref: 14

WASHER-PLAIN-SMALL,6M

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

311B0600
ref: 16

NUT,6MM

€ 0.50

17

110N0516
ref: 17

BOLT,5X16

€ 2.00

18

461F0500
ref: 18

WASHER-SPRING,5MM

€ 0.50

19

410D0500
ref: 19

WASHER-PLAIN,5MM

€ 1.50

20

23040033
ref: 20

LAMP-SIGNAL

€ 59.00

21

23051037
ref: 21

BKT-RR SIGNAL LAMP

€ 30.00

22

92075148
ref: 22

DAMPER RUBBER

€ 2.00

23

92027168
ref: 23

COLLAR

€ 2.50

24

92081111
ref: 24

SPRING

€ 2.00

25

92022235
ref: 25

WASHER-PLAIN

€ 3.00

26

92037087
ref: 26

CLAMP-RR SIGNAL LAMP

€ 2.50

27

461F1200
ref: 27

WASHER-SPRING,12MM

€ 0.50

28

315B1200
ref: 28

NUT,12MM

€ 0.50
