GEAR CHANGE MECHANISM ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

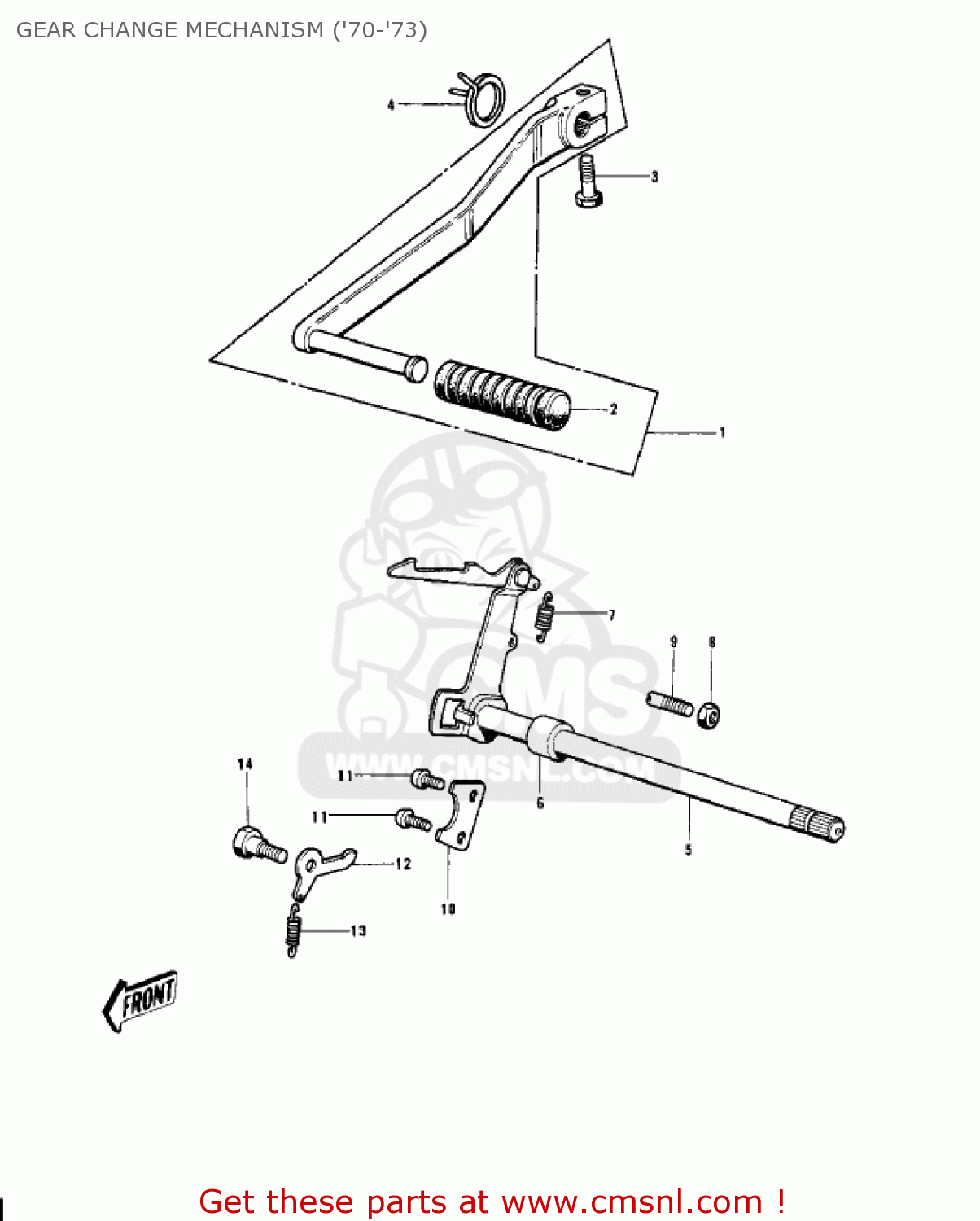

Gear change mechanism ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

13242004
ref: 1

LEVER-ASSY-CHANGE

€ 23.50

13157004
ref: 2

RUBBER-CHANGE PEDAL

€ 4.00

112G0620
ref: 3

BOLT 6X20

€ 1.00

920811129
ref: 4

SPRING,TENTION

€ 6.50

131611014
ref: 5

LEVER-COMP-CHANGE SHA

€ 58.00

92027121
ref: 6

COLLAR

€ 5.50

921441720
ref: 7

SPRING,CHANGE LEVER

€ 3.00

312B0800
ref: 8

NUT,8MM

€ 0.50

920011401
ref: 9

BOLT,RETURN SPRING

€ 3.00

920011401
ref: 9

BOLT,RETURN SPRING

€ 3.00

13169002
ref: 10

PLATE,CHANGE DRUM POS

€ 3.00

220B0614
ref: 11

SCREW-PAN HEAD,6X14

€ 2.00

13168005
ref: 12

LEVER,CHNG PDL PSTON

€ 4.00

92083012
ref: 13

SPRING,CHNG DRUM LEV

€ 3.00

921501450
ref: 14

BOLT,CHANGE DRUM LEVE

€ 2.50
