TAILLIGHT G4TR-B ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

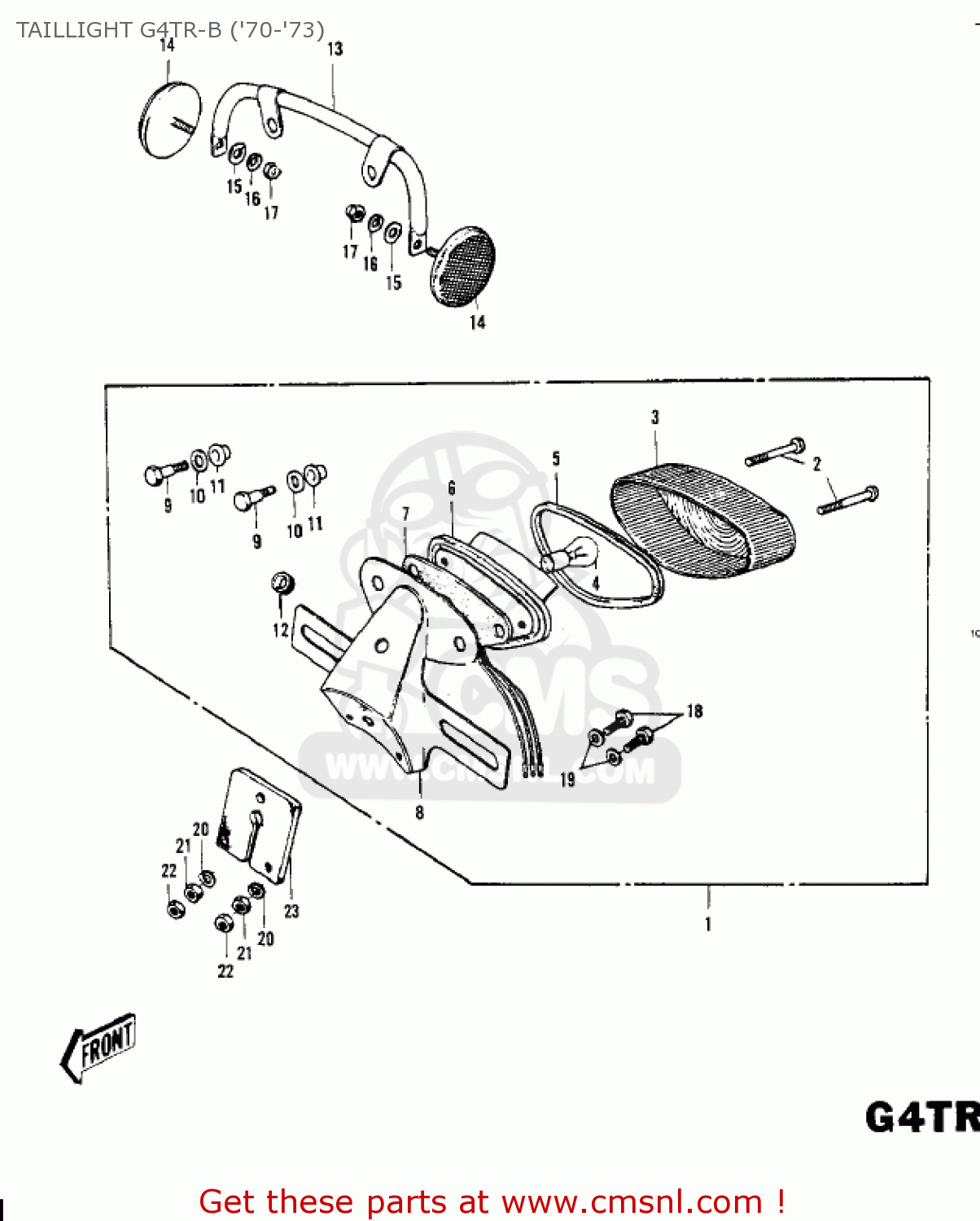

Taillight g4tr-b ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

TAILLIGHT G4TR-B ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH
TAILLIGHT G4TR-B ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH
TAILLIGHT G4TR-B ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH
prices are in EUR
ref
part #
description
quantity
1
2302401921
ref: 1
LAMP ASSY-TAIL,BLACK
€ 99.00
2
220R0455
ref: 2
SCREW-PAN-CROS
220R0455
€ 3.50
3
23026022
ref: 3
LENS,TAIL LAMP
23026022
€ 47.50
4
92069023
ref: 4
BULB 6V 3/21CP
€ 4.00
5
23028016
ref: 5
GASKET-TAIL LAMP LENS (NAS)
23028016
€ 7.00
6
23027029
ref: 6
CASE-TAIL LAMP
23027029
€ 24.50
7
23028015
ref: 7
GASKET-TAIL LAMP CASE (NAS)
23028015
€ 6.50
8
2303601421
ref: 8
BKT-LICENSE PLT,BLACK
€ 25.50
9
92001111
ref: 9
BOLT
92001111
€ 6.50
10
920221561
ref: 10
WASHER,8.5X20X1.6
920221561
€ 2.50
11
92075091
ref: 11
DAMPER RUBBER
92075091
€ 1.50
12
92071019
ref: 12
GROMMET,10MM
92071019
€ 2.50
13
28013002
ref: 13
BRACKET-REFLECTOR
28013002
€ 8.50
14
28012008
ref: 14
REFLECTOR-REFLEX,REAR
28012008
€ 8.50
15
411B0500
ref: 15
WASHER-PLAIN,5MM
411B0500
€ 0.50
16
461F0500
ref: 16
WASHER-SPRING,5MM
461F0500
€ 0.50
17
322N0500
ref: 17
NUT-CAP,5MM
322N0500
€ 2.00
18
112G0630
ref: 18
BOLT-UPSET
112G0630
€ 1.00
19
92022125
ref: 19
WASHER,6.5X20X1.6
92022125
€ 1.00
20
461F0600
ref: 20
WASHER-SPRING,6MM
461F0600
€ 0.50
21
311B0600
ref: 21
NUT,6MM
311B0600
€ 0.50
22
312B0600
ref: 22
NUT,6MM
312B0600
€ 0.50
23
35039005
ref: 23
DAMPER,TAIL LAMP
35039005
€ 6.50
