FOOTRESTS/STAND/BRAKE PEDAL G4TR

G4TR TRAILBOSS 1970 USA CANADA / MPH

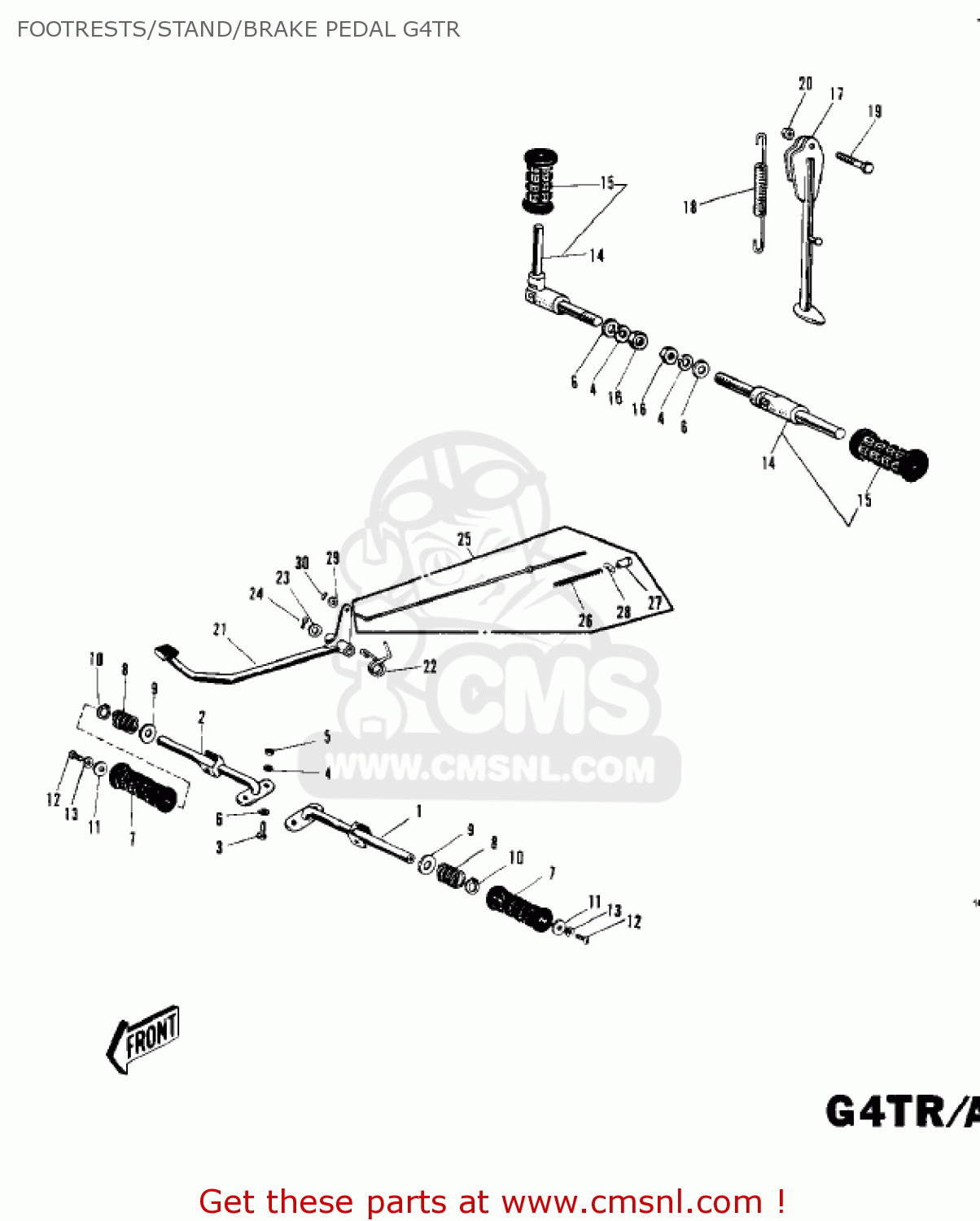

Footrests/stand/brake pedal g4tr diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

FOOTRESTS/STAND/BRAKE PEDAL G4TR G4TR TRAILBOSS 1970 USA CANADA / MPH

FOOTRESTS/STAND/BRAKE PEDAL G4TR G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

34003018
ref: 1

FOOTREST BAR,LH

€ 35.00

2

34003019
ref: 2

FOOTREST BAR,RH

€ 27.50

3

112B1020
ref: 3

BOLT-UPSET,10X20

€ 3.00

4

461F1000
ref: 4

WASHER-SPRING,10MM

€ 0.50

5

315B1000
ref: 5

NUT,10MM

€ 0.50

6

410B1000
ref: 6

WASHER-PLAIN-SMALL,10

€ 0.50

7

92076006
ref: 7

DAMPER,STEP

€ 10.00

8

34006002
ref: 8

SPRING-FOOTREST PEG

€ 3.00

9

92022049
ref: 9

WASHER-FOLDING PEG

€ 2.00

10

480J1600
ref: 10

CIRCLIP-TYPE-C,16MM

€ 2.50

11

92022024
ref: 11

WASHER,7X16X1.2

€ 2.50

12

220B0620
ref: 12

SCREW-PAN HEAD,6X20

€ 2.50

13

461F0600
ref: 13

WASHER-SPRING,6MM

€ 0.50

14

34030001
ref: 14

BAR SET,RR,FOOTREST

€ 7.00

15

92076008
ref: 15

RUBBER-REAR FOOTREST

€ 5.50

16

314B1000
ref: 16

NUT,10MM

€ 0.50

17

34024035
ref: 17

SIDE STAND

€ 75.00

18

34025001
ref: 18

SPRING,SIDE STAND

€ 9.50

19

113G1025
ref: 19

BOLT-SMALL-FINE,10X25

€ 2.50

20

315B1000
ref: 20

NUT,10MM

€ 0.50

21

43001045
ref: 21

BRAKE PEDAL

€ 56.50

22

43005007
ref: 22

SPRING-BRAKE PEDAL

€ 4.50

23

92022085
ref: 23

WASHER,15.3X24X1.2

€ 2.50

24

550D3030
ref: 24

PIN-COTTER,3.0X30

€ 1.50

25

430105003
ref: 25

BRAKE ROD ASSY

€ 15.00

26

43012001
ref: 26

SPRING,BRAKE ROD

€ 3.00

27

92015042
ref: 27

NUT-BRAKE ROD ADJUST

€ 4.00

27

92015042
ref: 27

NUT-BRAKE ROD ADJUST

€ 4.00

28

92043039
ref: 28

PIN,BRAKE ROD

€ 4.50

29

410B0600
ref: 29

WASHER-PLAIN-SMALL,6M

€ 0.50

30

550D2015
ref: 30

PIN-COTTER,2.0X15

€ 1.00
