OIL TANK/CHAIN COVER ('74-'75)

G4TR TRAILBOSS 1970 USA CANADA / MPH

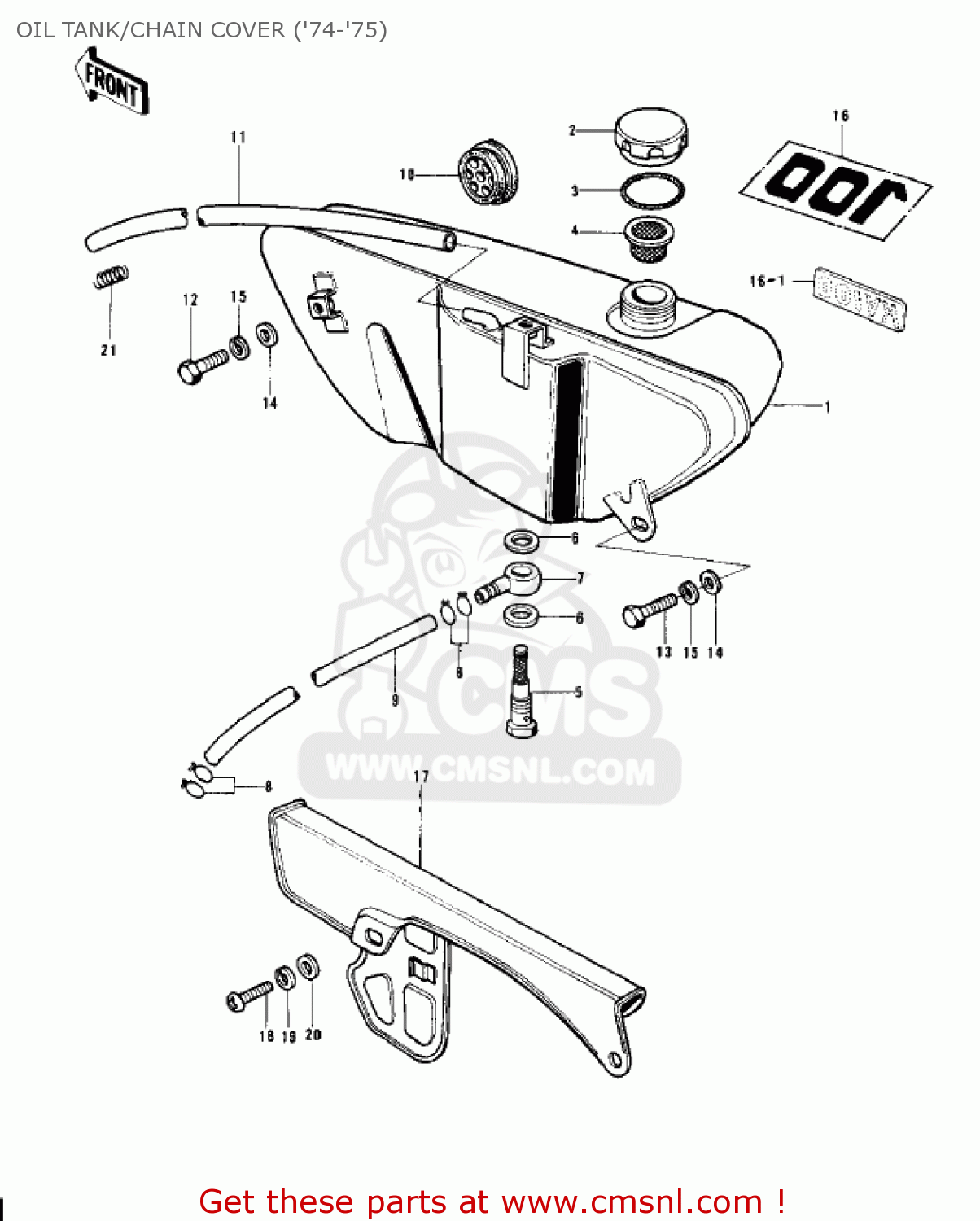

Oil tank/chain cover ('74-'75) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

OIL TANK/CHAIN COVER ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

OIL TANK/CHAIN COVER ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

520010391R
ref: 1
G4TR-D

OIL TANK,CANDYTONE SUPER RED

€ 244.50

1

520010393E
ref: 1
G4TR-E

OIL TANK,VIVID YELLOW

€ 244.50

1

520010453R
ref: 1
KV100-A7

OIL TANK,CANDY SUPER RED

€ 197.00

2

52003018
ref: 2

CAP-TANK,OIL

€ 7.00

3

92065018
ref: 3
G4TR-D

GASKET,OIL TANK CAP (NAS)

€ 3.00

3

92065086
ref: 3
G4TR-E, KV100-A7

GASKET,OIL TANK CAP (NAS)

€ 3.00

4

52004001
ref: 4
G4TR-D

GASKET-OIL TANK CAP B (NAS)

€ 8.00

5

92060001
ref: 5

BOLT-OIL TANK BANJO

€ 8.50

6

110091146
ref: 6

GASKET,10.2X15X1.5 (NAS)

€ 2.00

7

92061003
ref: 7

FITTING,BANJO

€ 6.50

8

92037010
ref: 8

CLAMP-FUEL PIPE

€ 2.50

9

92059072
ref: 9

TUBE,4.5X9X545

€ 22.00

10

52015001
ref: 10

GAUGE,OIL LEVEL

€ 8.00

11

700Q05540
ref: 11
G4TR-D/E

TUBE-VINYL,5X540

€ 0.50

11

700Q05600
ref: 11
KV100-A7

TUBE-VINYL,5X600

€ 1.50

12

112G0618
ref: 12

BOLT-UPSET

€ 0.50

13

112B0614
ref: 13

BOLT-UPSET 6X14

€ 2.50

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

56018127
ref: 16
G4TR-D

EMBLEM-OIL TANK

€ 15.00

16

56018182
ref: 16
G4TR-E

OIL TANK EMBLEM

€ 20.00

16-1

560181109
ref: 16-1
KV100-A7

OIL TANK MARK

€ 8.50

17

3601404821
ref: 17

CHAIN CASE,FRONT,FLAT BLACK

€ 111.50

18

220B0612
ref: 18

SCREW-PAN HEAD,6X12

€ 1.00

19

461F0600
ref: 19

WASHER-SPRING,6MM

€ 0.50

20

411B0600
ref: 20

WASHER-PLAIN,6MM

€ 0.50

21

92037141
ref: 21
G4TR-E, KV100-A7

CLAMP,OIL TANK BREATH

€ 3.50
