HEADLIGHT ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

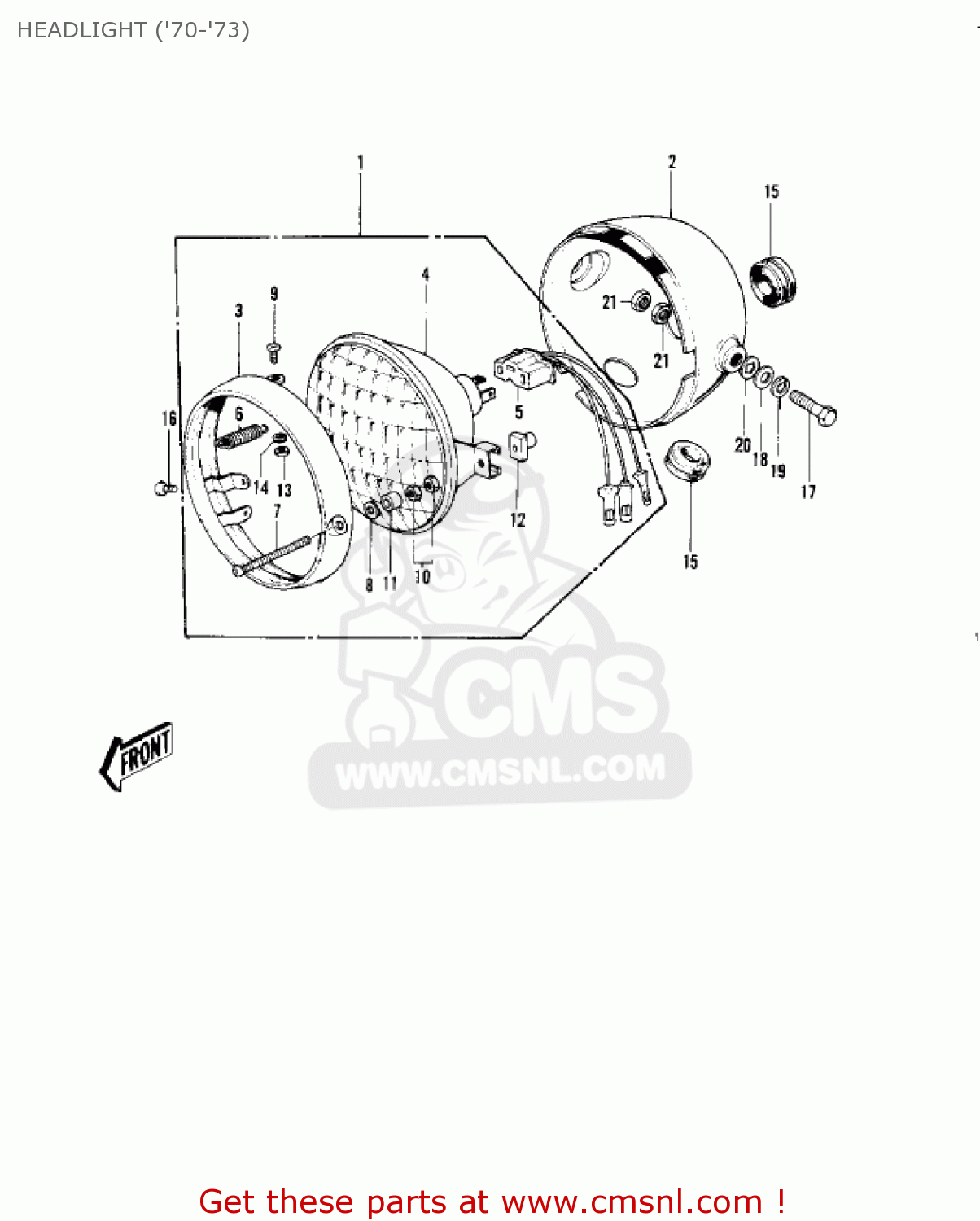

Headlight ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

HEADLIGHT ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

HEADLIGHT ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

23003009
ref: 1

LAMP UNIT-HEAD

€ 103.50

2

2300502121
ref: 2

BODY-HEAD LAMP,BLACK

€ 39.00

3

23006020
ref: 3

RIM-HEAD LAMP

€ 43.00

4

23007023
ref: 4

SEALED BEAM UNIT

€ 205.00

5

23008044
ref: 5

SOCKET-ASSY,HEAD LAMP

€ 15.00

6

23014008
ref: 6

SPRING-LENS FITTING

€ 1.00

7

23019013
ref: 7

SCREW-ADJUST

€ 1.00

8

23021007
ref: 8

WASHER-ADJUST

€ 1.00

9

23019014
ref: 9

SCREW-FITTING

€ 0.50

10

23020013
ref: 10

NUT-ADJUST

€ 1.50

11

23058001
ref: 11

WASHER-FITTING

€ 1.00

12

23020012
ref: 12

NUT,ADJUSTING

€ 2.50

13

311B0400
ref: 13

NUT-HEX,4MM

€ 0.50

14

461F0400
ref: 14

WASHER-SPRING,4MM

€ 0.50

15

23023007
ref: 15

GROMMET

€ 2.00

16

222E0508A
ref: 16

SCREW-OVL CNTSNK,5X8

€ 2.00

17

113N1020
ref: 17

BOLT-SMALL-FINE,10X20

€ 3.50

18

411B1000
ref: 18

WASHER-PLAIN,10MM

€ 0.50

19

461F1000
ref: 19

WASHER-SPRING,10MM

€ 0.50

20

463H1000
ref: 20

WASHER-LOCK,10MM

€ 0.50

21

92016027
ref: 21

NUT,10MM

€ 2.00
