AIR CLEANER ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

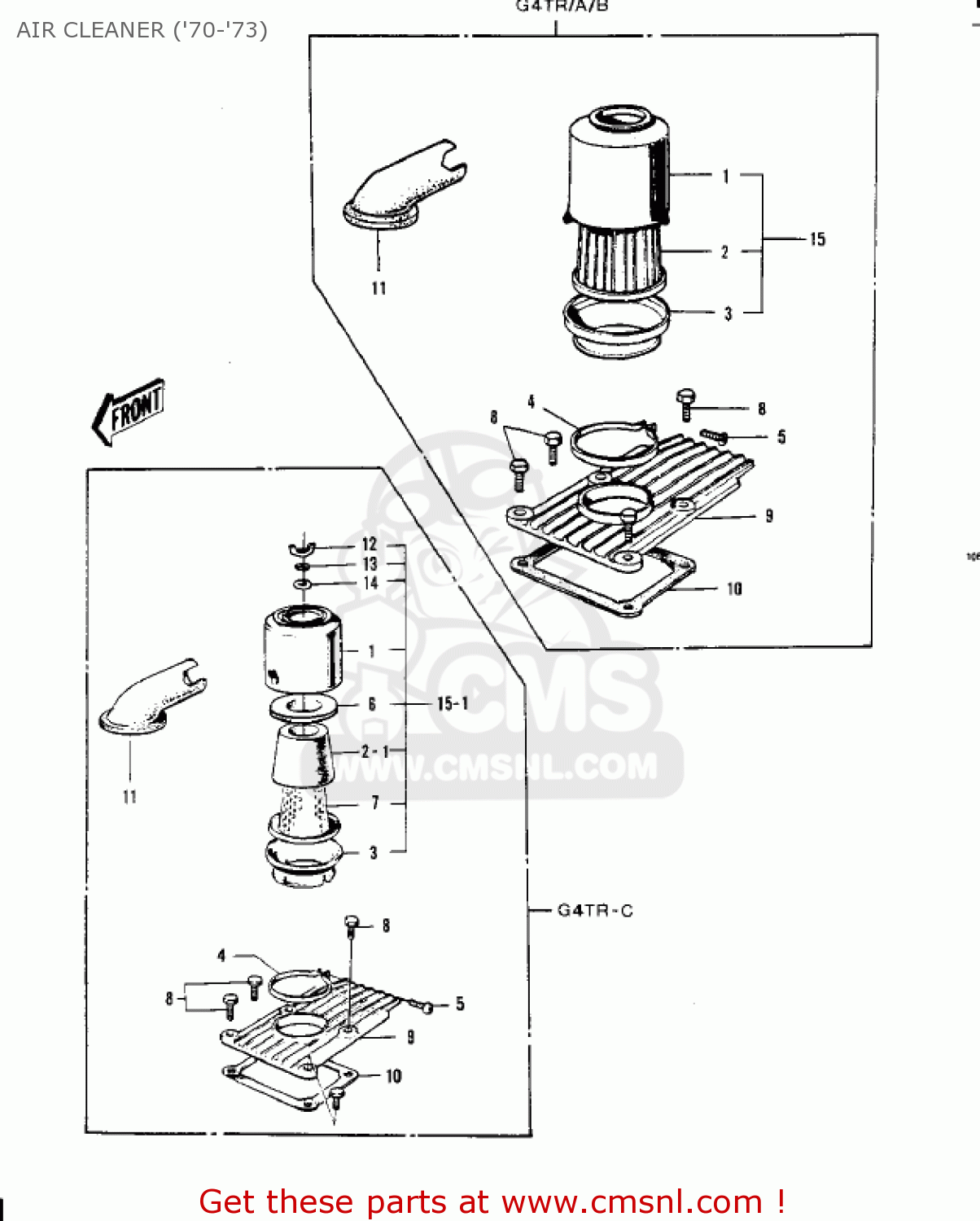

Air cleaner ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

AIR CLEANER ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

AIR CLEANER ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

1101101079
ref: 1
G4TR/A/B

AIR CLEANER BODY,CHROME

€ 108.50

1

1101101079
ref: 1
G4TR-C

AIR CLEANER BODY,CHROME

€ 108.50

2

11013027
ref: 2
G4TR/A/B

ELEMENT-AIR FILTER

€ 15.00

2-1

11013037
ref: 2-1
G4TR-C

AIR CLEANER ELEMENT

€ 22.00

3

11012013
ref: 3

CAP,AIR FILTER

€ 16.00

4

92037018
ref: 4

CLAMP-AIR CLEANER

€ 3.50

5

220B0625
ref: 5

SCREW-PAN HEAD,6X25

€ 1.50

6

11012031
ref: 6
G4TR-C

AIR CLEANER CAP

€ 38.00

7

11014008
ref: 7
G4TR-C

AIR CLEANER HOLDER

€ 66.00

8

112G0620
ref: 8

BOLT 6X20

€ 1.00

9

1101501921
ref: 9

INLET PIPE,F.BLACK

€ 15.00

10

11017004
ref: 10

GASKET-INLET PIPE (NAS)

€ 1.50

11

14073003
ref: 11

AIR DUCT

€ 30.00

12

92015030
ref: 12
G4TR-C

NUT-WING,6MM

€ 1.50

13

461F0600
ref: 13
G4TR-C

WASHER-SPRING,6MM

€ 0.50

14

411B0600
ref: 14
G4TR-C

WASHER-PLAIN,6MM

€ 0.50

15

11010037
ref: 15
G4TR/A/B/C

AIR CLEANER ASSEMBLY

€ 77.50

15-1

1101005979
ref: 15-1
G4TR-C

AIR CLEANER ASSY,CR

€ 55.50
