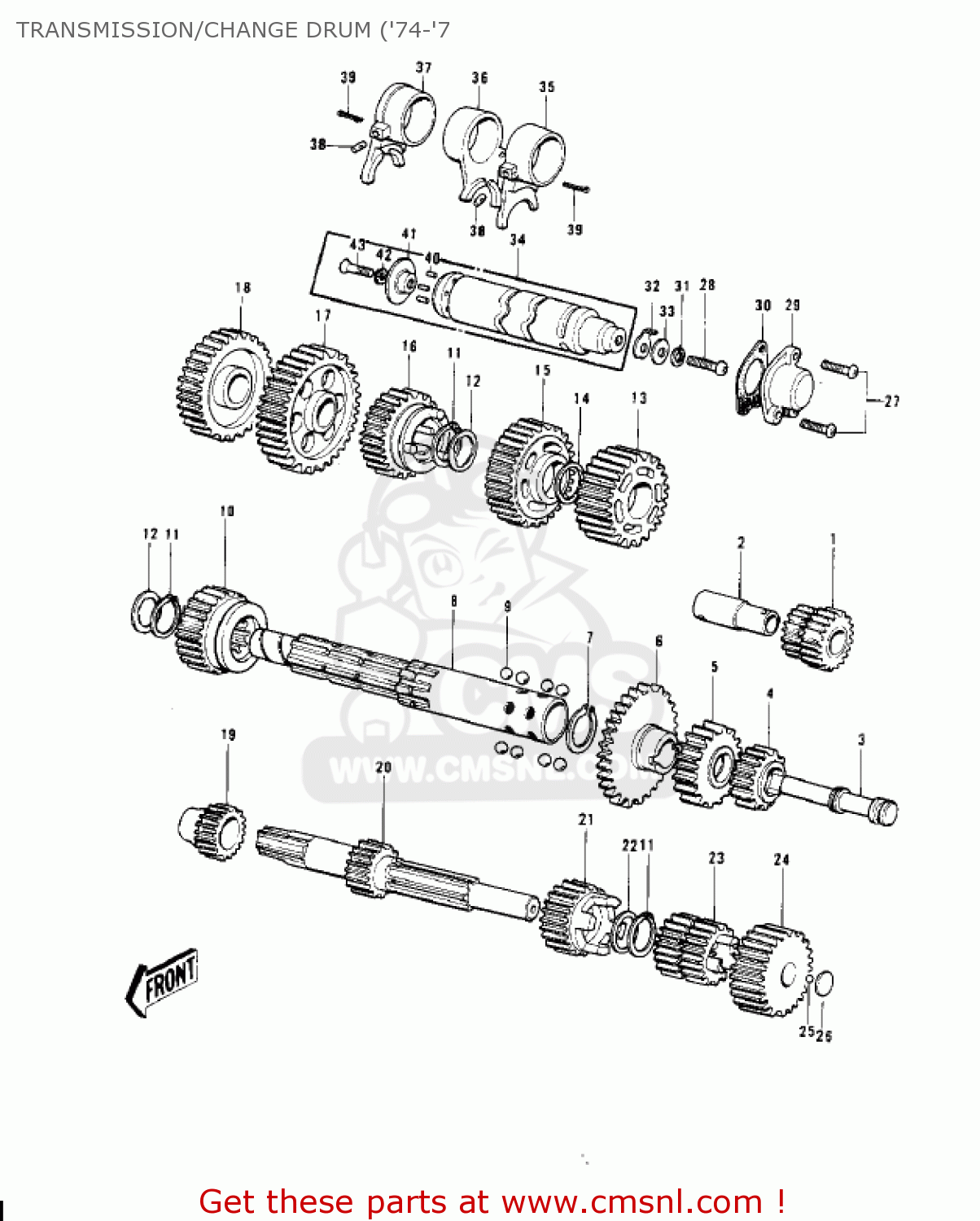

TRANSMISSION/CHANGE DRUM ('74-'7

ref

part #

description

quantity

1

13177005
ref: 1
G4TR-D

COUNTER GEAR

€ 129.50

1

13177007
ref: 1
G4TR-E KV100-A7

COUNTER SHAFT GEAR

€ 119.00

2

13180001
ref: 2

COUNTER SHAFT

€ 77.50

3

490471005
ref: 3

SHIFT ROD

€ 40.50

4

13177001
ref: 4
G4TR-D

GEAR,LOW

€ 90.50

4

13177006
ref: 4
G4TR-E, KV100-A7

GEAR,LOW

€ 119.00

5

13177004
ref: 5
G4TR-E, KV100-A7

GEAR,HIGH

€ 189.00

6

13144038
ref: 6

ENGINE SPROCKET,15T

€ 225.00

7

480J2400
ref: 7

CIRCLIP-TYPE-C,24MM

€ 3.50

8

13128035
ref: 8

SHAFT-TRANSMISSION OU

€ 109.00

9

600A1000
ref: 9

BALL-STEEL,5/16

€ 0.50

10

13137012
ref: 10

TOP GEAR-OUTPUT SHAFT

€ 28.50

11

92033014
ref: 11

RING-SNAP,16MM

€ 3.50

12

92024030
ref: 12

WASHER,TOOTHED,18.5X2

€ 4.00

13

13133005
ref: 13

GEAR,OUTPUT 3RD,26T

€ 46.50

14

92022146
ref: 14

WASHER,THRUST,18.5X23

€ 4.50

15

13131008
ref: 15

GEAR,OUTPUT 2ND,30T

€ 40.50

16

131291708
ref: 16

GEAR,OUTPUT 4TH,24T

€ 70.00

17

13129010
ref: 17

GEAR,OUTPUT LOW,35T

€ 66.50

18

13073004
ref: 18

GEAR-SPUR,KICKSTARTER

€ 55.50

19

13075004
ref: 19

GEAR-SPUR,KICKSTARTER

€ 40.50

20

13127032
ref: 20

SHAFT,DRIVE

€ 76.00

21

131291053
ref: 21

GEAR,INPUT 4TH,16T

€ 23.50

22

92022118
ref: 22

WASHER,18.5X23X1.2

€ 3.00

23

131291052
ref: 23

GEAR,INPUT 2ND&3RD,17

€ 55.00

24

131291927
ref: 24

GEAR, INPUT TOP 24T

€ 25.00

25

600A0700
ref: 25

BALL-STEEL,7/32

€ 2.50

26

92022115
ref: 26

WASHER,THRUST

€ 2.50

27

220B0616
ref: 27

SCREW-PAN HEAD,6X16

€ 2.50

28

220B0614
ref: 28

SCREW-PAN HEAD,6X14

€ 2.00

29

131511001
ref: 29
G4TR-D/E

SWITCH-COMP,NEUTRAL

€ 9.50

29

131511002
ref: 29
KV100-A7

SWITCH-COMP,NEUTRAL

€ 9.00

30

13146002
ref: 30

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

31

461F0600
ref: 31

WASHER-SPRING,6MM

€ 0.50

32

210071003
ref: 32

ROTOR,TOP & NEUTRAL

€ 4.50

33

410B0600
ref: 33

WASHER-PLAIN-SMALL,6M

€ 0.50

34

13239005
ref: 34

DRUM ASSY-GEAR CHANGE

€ 165.00

35

13140009
ref: 35

FORK-SELECTOR,3RD

€ 46.50

36

13140017
ref: 36

FORK-SELECTOR,4TH-TOP

€ 120.00

37

13140010
ref: 37

FORK-SHIFT,LOW&2ND

€ 81.50

38

92043005
ref: 38

PIN,DOWEL,8X15

€ 4.50

39

550D3020
ref: 39

PIN-COTTER,3.0X20

€ 2.00

40

92042014
ref: 40

PIN-GEAR CHANGE DRUM

€ 0.50

41

13142008
ref: 41

PLATE-CHANGE DRUM PIN

€ 4.00

42

464H0600
ref: 42

WASHER-LOCK,6MM

€ 0.50

43

220B0612
ref: 43

SCREW-PAN HEAD,6X12

€ 1.00

all assemblies
