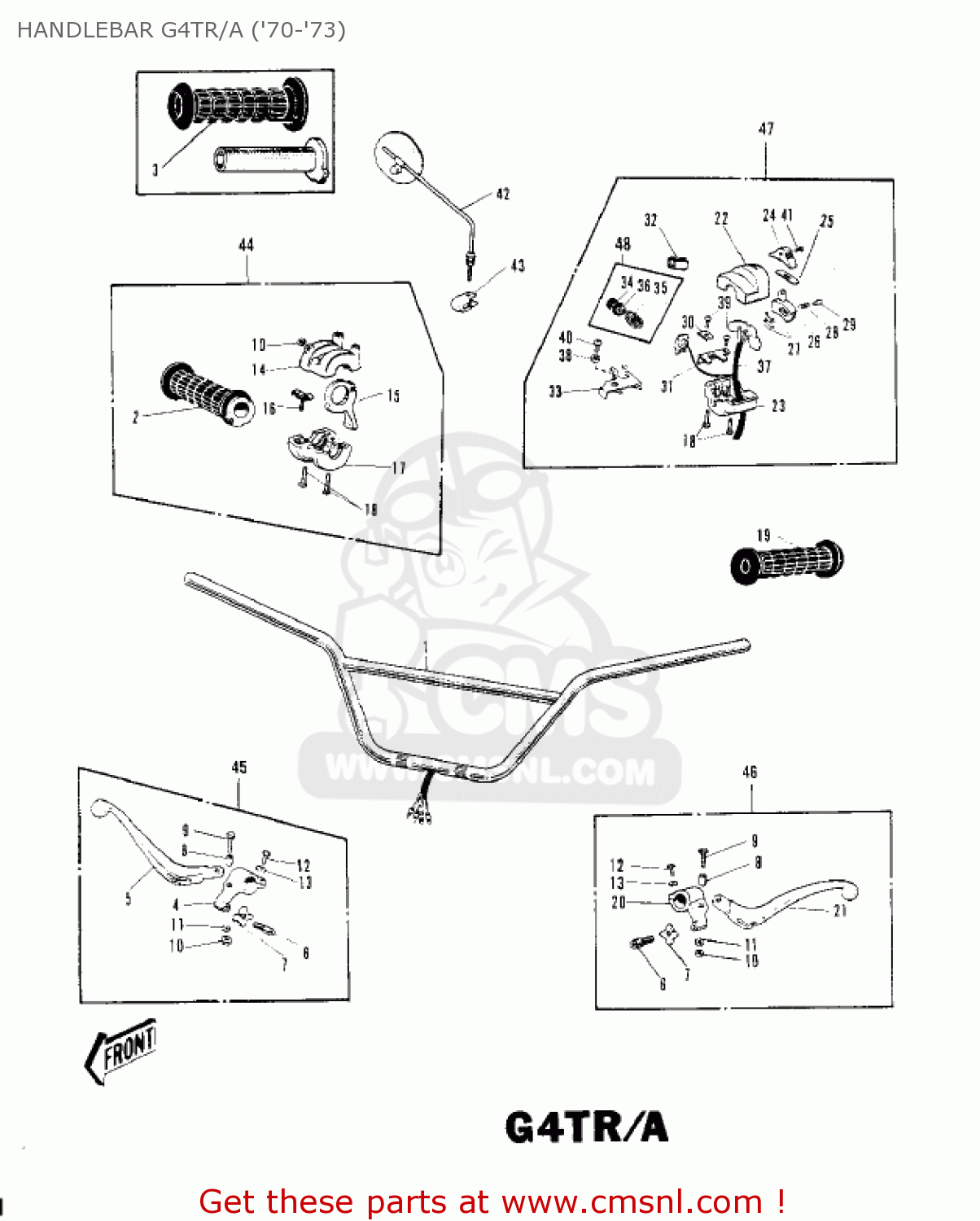

HANDLEBAR G4TR/A ('70-'73)

ref

part #

description

quantity

1

46004004
ref: 1

HANDLEBAR

€ 236.50

2

46019013
ref: 2

GRIP ASSY,THROTTLE

€ 15.00

3

46061012
ref: 3

GRIP,RUBBER,RH

€ 18.50

4

46060006
ref: 4

HOLDER-FR BRAKE LEVER

€ 26.00

5

46058004
ref: 5

LEVER-GRIP,FRONT BRAK

€ 24.00

6

46055009
ref: 6

SCREW,CABLE ASJUST

€ 13.00

7

46056001
ref: 7

NUT-ADJUST SCREW LOCK

€ 2.50

8

46059011
ref: 8

COLLAR,LEVER

€ 3.50

9

92007020
ref: 9

BOLT-HEX HEAD,5X20

€ 2.50

10

312B0500
ref: 10

NUT-HEX,5MM

€ 0.50

11

464H0500
ref: 11

WASHER-LOCK,5MM

€ 0.50

12

110N0622
ref: 12

BOLT,6X22

€ 2.00

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

46041005
ref: 14

CASE-R.H UPPER

€ 59.50

15

46096006
ref: 15

LEVER-STARTER

€ 29.00

16

46024002
ref: 16

SPRING-THROTTLE GRIP

€ 0.50

17

46023005
ref: 17

CASE-R.H LOWER

€ 13.00

18

220B0522
ref: 18

SCREW-PAN-CROS

€ 0.50

19

46075017
ref: 19

GRIP,LH

€ 15.50

20

46094010
ref: 20

HOLDER,CLUTCH LEVER

€ 31.50

21

46092015
ref: 21

LEVER-GRIP,CLUTCH

€ 11.50

22

46086013
ref: 22

CASE-L.H SWITCH UPPER

€ 9.50

23

46077015
ref: 23

CASE-L.H SWITCH LOWER

€ 9.50

24

46044011
ref: 24

KNOB-L.H SWITCH

€ 6.00

25

46031003
ref: 25

SPRING-L.H SW KNOB

€ 1.50

26

46089003
ref: 26

SWITCH-L.H

€ 2.50

27

46080002
ref: 27

PLATE-L.H SW CONTACT

€ 1.50

28

46031004
ref: 28

SPRING-L.H SWITCH

€ 1.50

29

46079002
ref: 29

CONTACT-L.H SWITCH

€ 1.50

30

46085013
ref: 30

HOLDER-L.H SW UPPER,A

€ 1.50

31

46085014
ref: 31

HOLDER-L.H SW LOWER,B

€ 1.00

32

46081001
ref: 32

UPPER CASE CAP,LH

€ 1.50

33

46085015
ref: 33

HOLDER-L.H SW LOWER

€ 1.00

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

270101009
ref: 35

SWITCH ASSY,HORN BUTN

€ 5.50

36

270101009
ref: 36

SWITCH ASSY,HORN BUTN

€ 5.50

37

46082016
ref: 37

WIRING HARNESS,COMPLETE

€ 28.50

38

92095010
ref: 38

WASHER

€ 2.50

39

220B0305A
ref: 39

SCREW-PAN HEAD,3X5

€ 1.00

40

220B0308
ref: 40

SCREW-PAN-CROS

€ 0.50

41

221B0308A
ref: 41

SCREW-CNTSNK HD,3X8

€ 2.50

42

56001005
ref: 42

REAR VIEW MIRROR

€ 54.00

43

56006001
ref: 43

PLATE,MIRROR

€ 8.50

44

46018019
ref: 44

CASE ASSY-R.H

€ 67.50

45

46021009
ref: 45

FRONT BRAKE LEVER ASSEMBLY

€ 81.50

46

46076013
ref: 46

CLUTCH LEVER ASSEMBLY

€ 54.50

47

46091003
ref: 47

CASE ASSEMBLY,LH

€ 87.50

48

270101009
ref: 48

SWITCH ASSY,HORN BUTN

€ 5.50

all assemblies
