FRONT HUB/BRAKE ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

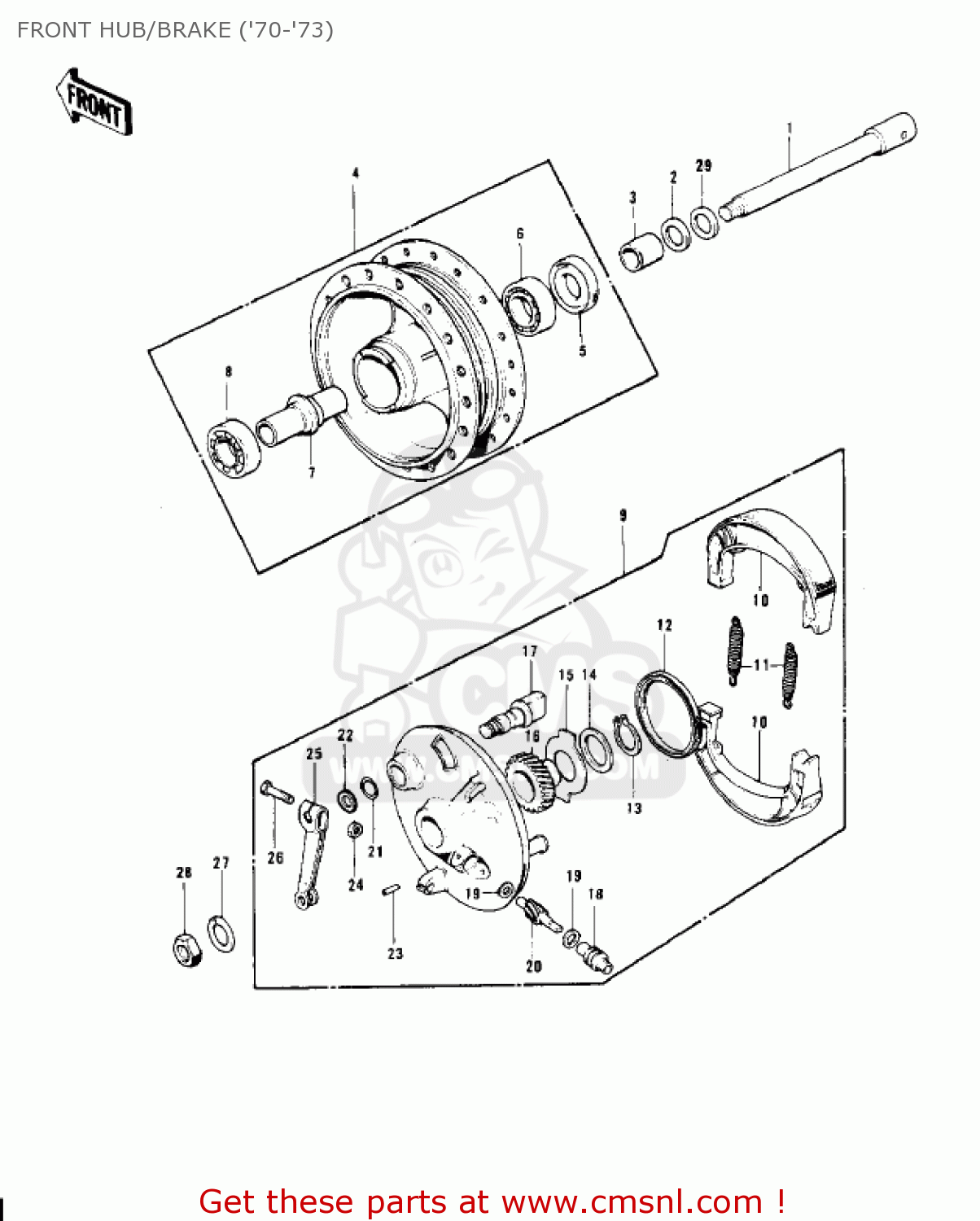

Front hub/brake ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

FRONT HUB/BRAKE ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

FRONT HUB/BRAKE ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

41068039
ref: 1

AXLE-FRONT

€ 20.00

2

41042002
ref: 2

DUST SHIELD-FRNT DRUM

€ 2.50

3

41069002
ref: 3

COLLAR-FRONT HUB R.H

€ 4.00

4

410341040
ref: 4

DRUM-ASSY,FR,BUFF FIN

€ 203.50

5

92050003
ref: 5

OIL SEAL-FRONT DRUM

€ 4.00

6

601B6200
ref: 6

BEARING-BALL,#6200C3

€ 11.50

7

41039002
ref: 7

COLLAR,L=51

€ 6.00

8

601B6300Z
ref: 8

BEARING-BALL,#6300ZC3

€ 18.50

9

4103507180
ref: 9

PANEL ASY,FR BRK,BUFF

€ 210.00

10

410481085
ref: 10

SHOE-BRAKE (NAS)

€ 13.00

11

920811766
ref: 11

SPRING,BRAKE SHOE

€ 5.50

12

92050002
ref: 12

OIL SEAL-BRAKE PANEL

€ 9.00

13

480J1500
ref: 13

CIRCLIP-TYPE-C,15MM

€ 1.00

14

41065002
ref: 14

WASHER-SPEED GR THRST

€ 2.00

15

41064002
ref: 15

RECIEVER-SPEED GEAR

€ 1.50

16

41059006
ref: 16

SPEEDOMETER GEAR

€ 45.50

17

41050018
ref: 17

CAM-BRAKE

€ 18.00

18

41062001
ref: 18

BUSH-SPEEDMETER CABLE

€ 7.00

19

41063001
ref: 19

WASHER-THRST SPD PINI

€ 3.00

20

41060004
ref: 20

PINION,SPEEDOMETER

€ 20.50

21

92055004
ref: 21

RING-O,BRAKE CAM

€ 3.00

22

41052001
ref: 22

WASHER-BRAKE CAM SHT

€ 1.00

23

41082001
ref: 23

PIN-SPRING

€ 2.50

24

41072007
ref: 24

NUT,6MM

€ 2.50

25

41053005
ref: 25

LEVER-BRAKE CAM

€ 11.50

26

112G0630
ref: 26

BOLT-UPSET

€ 1.00

27

461F1000
ref: 27

WASHER-SPRING,10MM

€ 0.50

28

42045005
ref: 28

NUT,10MM

€ 5.00

29

411B1000
ref: 29

WASHER-PLAIN,10MM

€ 0.50
