CARBURETOR G4TR-D ('74-'75)

G4TR TRAILBOSS 1970 USA CANADA / MPH

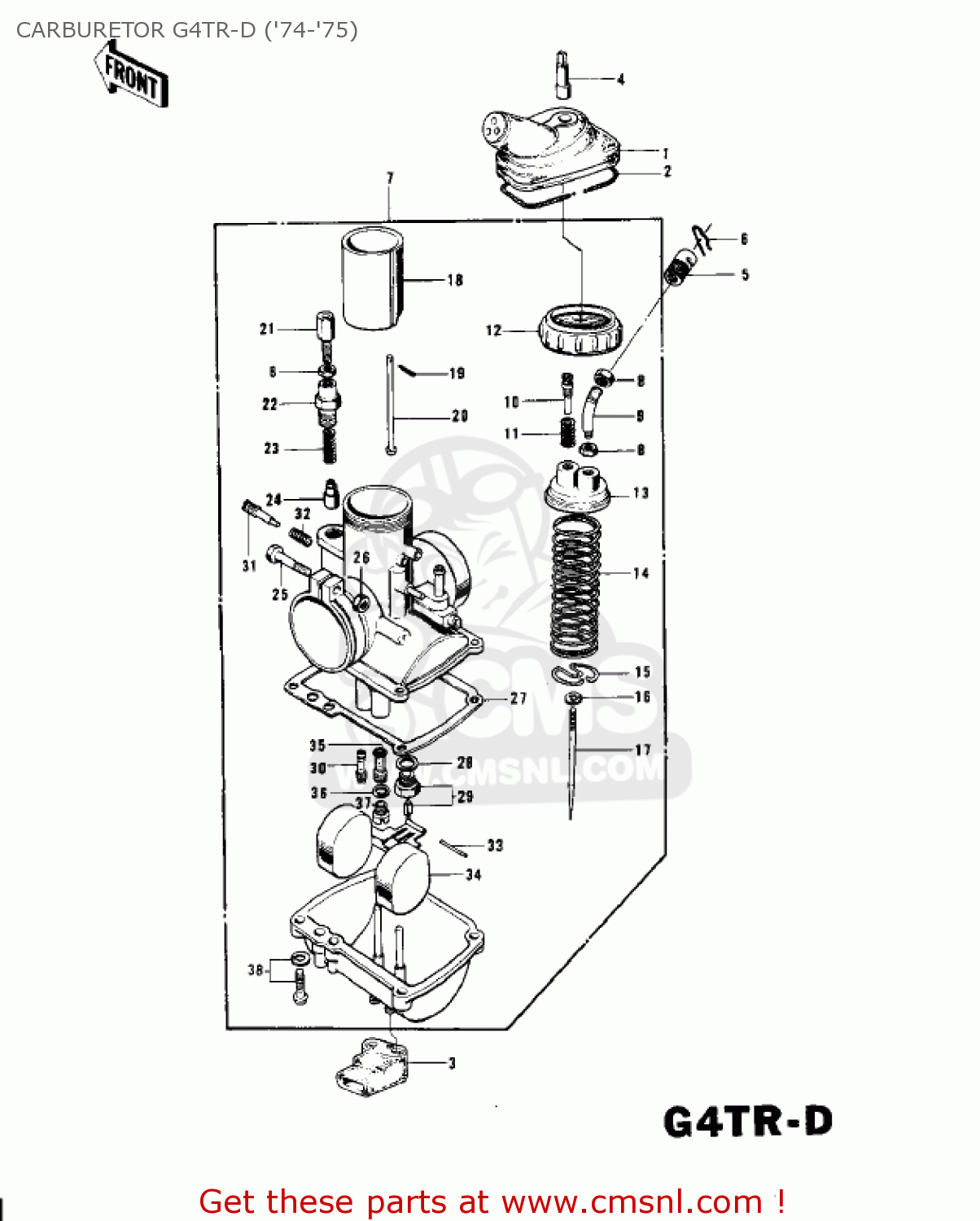

Carburetor g4tr-d ('74-'75) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

CARBURETOR G4TR-D ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH
CARBURETOR G4TR-D ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH
CARBURETOR G4TR-D ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH
prices are in EUR
ref
part #
description
quantity
1
14038033
ref: 1
BOOT,CARBURETOR
14038033
€ 12.00
2
92081047
ref: 2
SPRING,COIL
92081047
€ 7.50
3
16136007
ref: 3
GROMMET,OVERFLOW PIPE
16136007
€ 5.50
4
16147001
ref: 4
PLUG,12X40
16147001
€ 3.00
5
16002007
ref: 5
ADJUSTER-CABLE,THROTT
16002007
€ 7.50
6
92036018
ref: 6
CIRCLIP
92036018
€ 2.50
7
16001196
ref: 7
CARBURETOR ASSEMBLY
€ 298.50
8
16003004
ref: 8
NUT-CABLE ADJUST LOCK
16003004
€ 4.50
9
16077001
ref: 9
GUIDE,CABLE
16077001
€ 6.50
10
16021002
ref: 10
SCREW-THROTTLE STOP
16021002
€ 12.00
11
16022005
ref: 11
SPRING-THR STOP SCREW
16022005
€ 5.50
12
16004010
ref: 12
CAP-CHAMBER,MIXING
16004010
€ 13.50
13
16005005
ref: 13
TOP-CHAMBER,MIXING
16005005
€ 12.50
14
16006013
ref: 14
SPRING-THROTTLE VALVE
16006013
€ 10.00
15
16007020
ref: 15
SEAT-SPRING,THROTTLE
16007020
€ 7.00
16
16008010
ref: 16
CLAMP,E-TYPE
16008010
€ 5.00
17
16009059
ref: 17
NEEDLE-JET,4EJ7
16009059
€ 26.50
18
16025057
ref: 18
VALVE-THROTTLE,CA2.0
16025057
€ 80.50
19
550D1210
ref: 19
PIN-COTTER,1.2X10
550D1210
€ 1.50
20
16024012
ref: 20
ROD,THROTTLE VALVE ST
16024012
€ 5.50
21
16002002
ref: 21
ADJUSTER-CABLE,STARTE
16002002
€ 8.00
22
16012004
ref: 22
CAP-STARTER PLUNGER
16012004
€ 7.50
23
16013003
ref: 23
SPRING-STARTER PLUNG
16013003
€ 4.00
24
16016002
ref: 24
PLUNGER,STARTER
16016002
€ 20.00
25
16010004
ref: 25
SCREW-CLAMP
16010004
€ 3.50
26
311B0600
ref: 26
NUT,6MM
311B0600
€ 0.50
27
16019021
ref: 27
GASKET,FLOAT CHAMBER (NAS)
16019021
€ 13.00
28
16029002
ref: 28
WASHER-VALVE SEAT
16029002
€ 2.50
29
16030001
ref: 29
VALVE-FLOAT,#2.0
16030001
€ 40.50
30
92064020
ref: 30
JET-PILOT,#17.5
92064020
€ 13.50
31
16014002
ref: 31
SCREW-PILOT AIR
16014002
€ 11.00
32
16022007
ref: 32
SPRING-THR STOP SCREW
16022007
€ 5.50
33
16032003
ref: 33
FLOAT PIN
16032003
€ 4.00
34
16031015
ref: 34
FLOAT
16031015
€ 40.50
35
16017081
ref: 35
JET,NEEDLE,#O-4
€ 69.50
36
16034001
ref: 36
WASHER-MAIN JET
16034001
€ 2.50
37
92063109
ref: 37
STD
JET-MAIN,#75R
92063109
€ 10.50
37
920631012
ref: 37
OPTION
JET-MAIN,#70R
920631012
€ 8.00
37
92063108
ref: 37
OPTION
JET-MAIN,#72.5R
€ 9.00
37
920631032
ref: 37
OPTION
JET-MAIN,#A77.5R
920631032
€ 10.00
37
920631030
ref: 37
OPTION
JET-MAIN,#A80R
920631030
€ 11.00
38
16033012
ref: 38
SCREW-FLOAT CHAMBER
16033012
€ 1.00
