REAR HUB/BRAKE/CHAIN ('74-'75)

G4TR TRAILBOSS 1970 USA CANADA / MPH

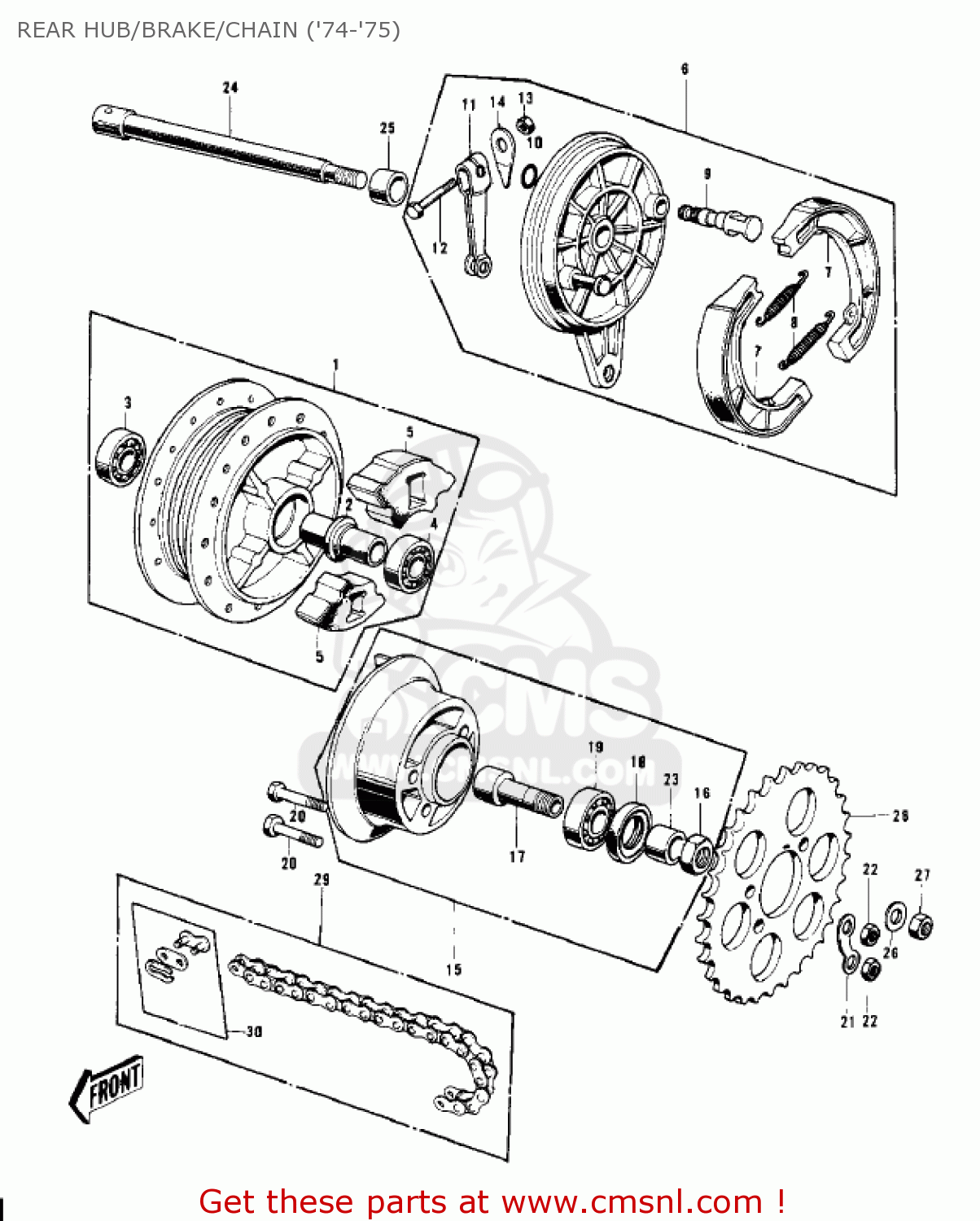

Rear hub/brake/chain ('74-'75) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

REAR HUB/BRAKE/CHAIN ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

REAR HUB/BRAKE/CHAIN ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

4200503180
ref: 1

DRUM ASY,RR BR,BUFF

€ 263.50

2

42010005
ref: 2

COLLAR,L=58

€ 8.50

3

601B6201
ref: 3

BEARING-BALL,#6201C3

€ 7.00

4

601B6301Z
ref: 4

BEARING-BALL,#6301ZC3

€ 15.00

5

42014016
ref: 5

DAMPER,RR HUB SHOCK

€ 12.50

6

4200604180
ref: 6
G4TR-D/E

REAR BRAKE PANEL ASSEMBLY,BUFF

€ 317.00

6

4200606580
ref: 6
KV100-A7

REAR BRAKE PANEL ASSEMBLY,BUFF

€ 248.00

7

410481085
ref: 7

SHOE-BRAKE (NAS)

€ 13.00

8

920811766
ref: 8

SPRING,BRAKE SHOE

€ 5.50

9

41050018
ref: 9
G4TR-D

CAM-BRAKE

€ 18.00

9

42026018
ref: 9
G4TR-E, KV100-A7

CAM-BRAKE

€ 19.50

10

92055004
ref: 10

RING-O,BRAKE CAM

€ 3.00

11

42029029
ref: 11

REAR BRAKE PANEL LEVER

€ 45.50

12

112G0630
ref: 12

BOLT-UPSET

€ 1.00

13

41072007
ref: 13

NUT,6MM

€ 2.50

14

41085003
ref: 14

INDICATOR,BRAKE SHOE

€ 9.00

15

42033011
ref: 15

COUPLING-ASSY,RR HUB

€ 87.50

16

42045004
ref: 16

NUT,16MM

€ 4.00

17

42036002
ref: 17

SLEEVE,RR HUB COUPLIN

€ 30.00

18

92052003
ref: 18

OIL SEAL-COUPLING

€ 8.50

19

601B6203
ref: 19

BEARING-BALL,#6203C3

€ 10.50

20

92001082
ref: 20

BOLT-REAR SPROCKET

€ 2.00

21

92088011
ref: 21

WASHER,LOCK

€ 3.00

22

315B1000
ref: 22

NUT,10MM

€ 0.50

23

42037003
ref: 23

COLLAR,17X25X12.5

€ 7.50

24

410681109
ref: 24

AXLE,12X215

€ 26.00

25

42032002
ref: 25

COLLAR,12.2X22X30.5

€ 9.00

26

410B1200
ref: 26
G4TR-D/E

WASHER-PLAIN-SMALL,12

€ 0.50

26

411B1200
ref: 26
KV100-A7

WASHER-PLAIN,12MM

€ 0.50

27

42045005
ref: 27

NUT,10MM

€ 5.00

28

42041076
ref: 28
STD

REAR SPROCKET 42T

€ 28.00

28

420411095
ref: 28

SPROCKET-HUB,40T

€ 28.50

29

920571085
ref: 29

CHAIN,DRIVE,EK428-G

€ 32.50

30

920581014
ref: 30

JOINT-CHAIN,EK428-G

€ 3.50
