SWING ARM/SHOCK ABSORBERS ('74-'

G4TR TRAILBOSS 1970 USA CANADA / MPH

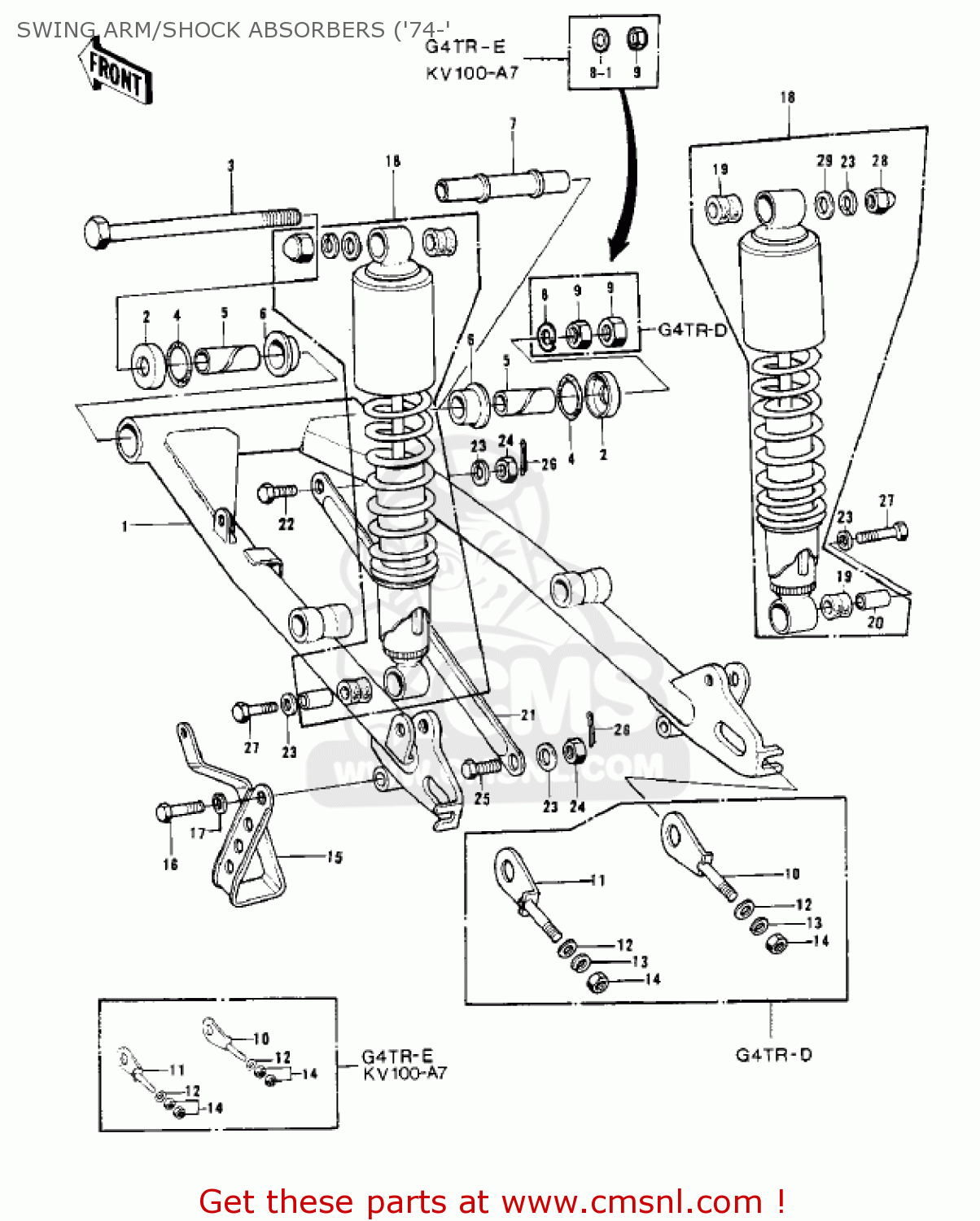

Swing arm/shock absorbers ('74-' diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

SWING ARM/SHOCK ABSORBERS ('74-' G4TR TRAILBOSS 1970 USA CANADA / MPH

SWING ARM/SHOCK ABSORBERS ('74-' G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

33001060
ref: 1

SWING ARM

€ 233.50

2

33035005
ref: 2

CAP,SWING ARM

€ 5.50

3

33032029
ref: 3
G4TR-D

SHAFT-SWING ARM

€ 18.50

3

33032029
ref: 3
G4TR-E KV100-A7

SHAFT-SWING ARM

€ 18.50

4

671B2530
ref: 4

O RING,30MM

€ 3.00

5

33034016
ref: 5

SLEEVE,12.1X22X39

€ 14.50

6

33033009
ref: 6

BUSHING,SWING ARM

€ 57.00

7

33036002
ref: 7

COLLAR,SWING ARM

€ 8.00

8

461F1200
ref: 8
G4TR-D

WASHER-SPRING,12MM

€ 0.50

8-1

410B1200
ref: 8-1
G4TR-E, KV100-A7

WASHER-PLAIN-SMALL,12

€ 0.50

9

315B1200
ref: 9
G4TR-D

NUT,12MM

€ 0.50

9

92019009
ref: 9
G4TR-E, KV100-A7

NUT,LOCK,12MM

€ 5.00

10

33040039
ref: 10

CHAIN ADJUSTER,RH

€ 17.50

11

33040040
ref: 11

CHAIN ADJUSTER,LH

€ 17.50

12

410B0800
ref: 12

WASHER-PLAIN-SMALL,8M

€ 0.50

13

461F0800
ref: 13
G4TR-D

WASHER-SPRING,8MM

€ 0.50

14

312B0800
ref: 14
G4TR-D

NUT,8MM

€ 0.50

14

312B0800
ref: 14
G4TR-E, KV100-A7

NUT,8MM

€ 0.50

15

55020013
ref: 15

CHAIN GUARD

€ 26.50

16

115G0820
ref: 16

BOLT,8X20

€ 2.00

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

18

45014073
ref: 18

SHOCK ABSORBER,REAR

€ 138.00

19

920751020
ref: 19

DAMPER,SHOCKABSORBER

€ 3.00

20

45016003
ref: 20

COLLAR,SHOCKABSORBER

€ 12.50

21

43007018
ref: 21

TORQUE LINK,REAR BRK

€ 8.50

22

92003017
ref: 22

BOLT-TRQ LINK 10X25

€ 3.50

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

314B1000
ref: 24

NUT,10MM

€ 0.50

25

92003003
ref: 25

BOLT-HEX HEAD,10X32

€ 4.00

26

550D2015
ref: 26

PIN-COTTER,2.0X15

€ 1.00

27

113N1035
ref: 27

BOLT-HEX HEAD,10X35

€ 6.00

28

92020003
ref: 28

NUT-SHOCK ABSORBER

€ 4.00

29

92022044
ref: 29

WASHER,10.5X26X2.3

€ 2.50
