OIL TANK/CHAIN COVER ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

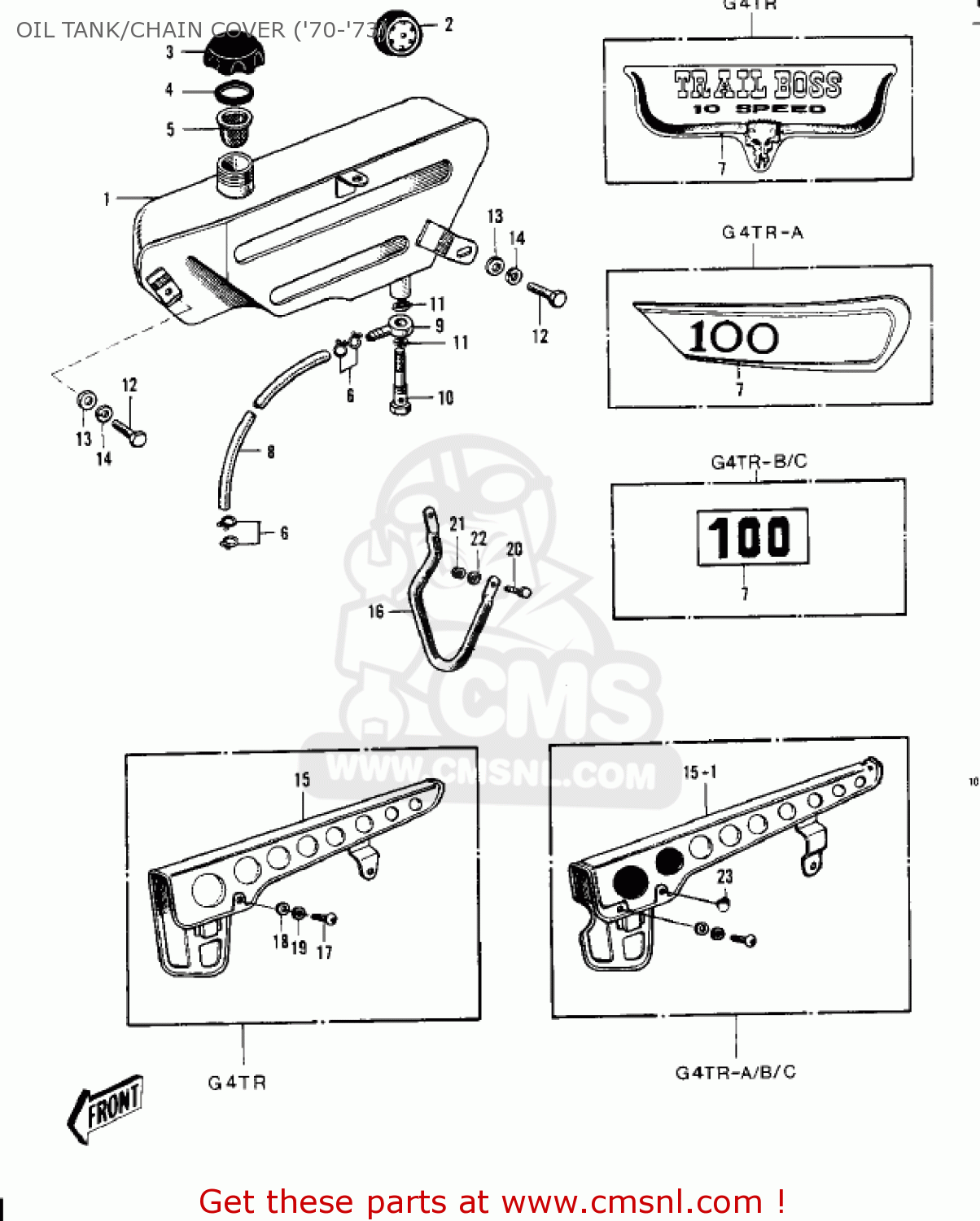

Oil tank/chain cover ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

OIL TANK/CHAIN COVER ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

OIL TANK/CHAIN COVER ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

5200101924
ref: 1
G4TR/A

OIL TANK,CANDYTONE RED

€ 233.50

1

5200101967
ref: 1
G4TR-B

OIL TANK,PEARL CANDYTONE ORANGE

€ 207.00

1

5200101921
ref: 1
G4TR-C

OIL TANK,FLAT BLACK

€ 207.00

2

52015001
ref: 2

GAUGE,OIL LEVEL

€ 8.00

3

52003001
ref: 3

CAP-OIL TANK

€ 6.50

4

92065018
ref: 4

GASKET,OIL TANK CAP (NAS)

€ 3.00

5

52004001
ref: 5

GASKET-OIL TANK CAP B (NAS)

€ 8.00

6

92037010
ref: 6

CLAMP-FUEL PIPE

€ 2.50

7

56018027
ref: 7
G4TR

OIL TANK EMBLEM

€ 25.00

7

5601806814
ref: 7
G4TR-A

EMBLEM,SILVER

€ 28.50

7

56018111
ref: 7
G4TR-B

OIL TANK EMBLEM

€ 20.00

7

56018127
ref: 7
G4TR-C

EMBLEM-OIL TANK

€ 15.00

8

92059002
ref: 8

PIPE-OIL TANK

€ 22.00

9

92061003
ref: 9

FITTING,BANJO

€ 6.50

10

92060001
ref: 10

BOLT-OIL TANK BANJO

€ 8.50

11

110091146
ref: 11

GASKET,10.2X15X1.5 (NAS)

€ 2.00

12

112G0612
ref: 12

BOLT-UPSET

€ 2.50

13

411B0600
ref: 13

WASHER-PLAIN,6MM

€ 0.50

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

36014031
ref: 15
G4TR

CHAIN CASE

€ 71.00

15-1

3601403721
ref: 15-1
G4TR-A/B/C

CHAIN CASE,FLAT BLACK

€ 71.00

16

55020003
ref: 16

CHAIN GUARD

€ 51.00

17

220B0614
ref: 17

SCREW-PAN HEAD,6X14

€ 2.00

18

411B0600
ref: 18

WASHER-PLAIN,6MM

€ 0.50

19

461F0600
ref: 19

WASHER-SPRING,6MM

€ 0.50

20

115G0820
ref: 20

BOLT,8X20

€ 2.00

21

312B0800
ref: 21

NUT,8MM

€ 0.50

22

461F0800
ref: 22

WASHER-SPRING,8MM

€ 0.50

23

92074018
ref: 23
G4TR-A/B/C

PLUG,RUBBER

€ 6.50
