SEAT/CARRIER ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

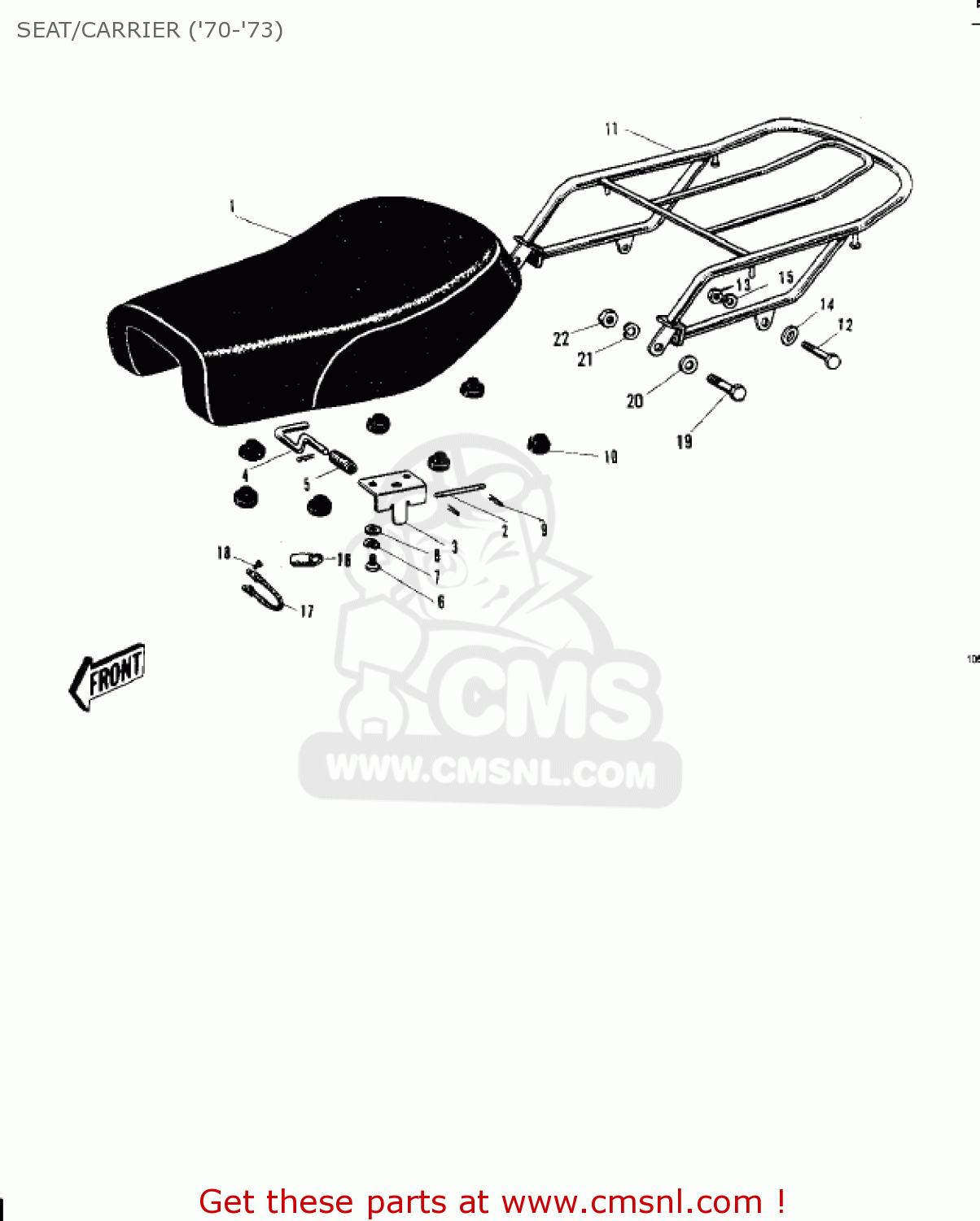

Seat/carrier ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

SEAT/CARRIER ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

SEAT/CARRIER ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

53002013
ref: 1
G4TR

SEAT DUAL

€ 262.50

1

53002032
ref: 1
G4TR-A/B

SEAT ASSEMBLY,DUAL

€ 267.50

1

53002040
ref: 1
G4TR-C

SEAT ASSEMBLY,DUAL

€ 333.00

2

32111004
ref: 2

SEAT PIN

€ 6.50

3

53009014
ref: 3

HINGE

€ 12.00

4

53008007
ref: 4

SEAT HOOK

€ 11.00

5

53012004
ref: 5

SPRING

€ 1.50

6

112G0612
ref: 6

BOLT-UPSET

€ 2.50

7

461F0800
ref: 7

WASHER-SPRING,8MM

€ 0.50

8

411B0800
ref: 8

WASHER-PLAIN,8MM

€ 0.50

9

92041003
ref: 9

COTTER

€ 0.50

10

92075023
ref: 10

DAMPER RUBB-DUAL SEAT

€ 3.00

11

53029037
ref: 11

LUGGAGE CARRIER

€ 125.00

12

114G0836
ref: 12

BOLT-SMALL,8X36

€ 3.00

13

311B0800
ref: 13

NUT,8MM

€ 0.50

14

410B0800
ref: 14

WASHER-PLAIN-SMALL,8M

€ 0.50

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

92027106
ref: 16

SEAT HOOK COLLAR

€ 1.50

17

92072038
ref: 17

BAND-SEAT STOPPER

€ 4.50

18

112G0610
ref: 18

BOLT,6X10

€ 0.50

19

920011252
ref: 19

BOLT,HEX HEAD,10X35

€ 3.50

20

410B1000
ref: 20

WASHER-PLAIN-SMALL,10

€ 0.50

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

311B1000
ref: 22

NUT,10MM

€ 0.50
