AIR CLEANER/MUFFLER ('74-'75)

G4TR TRAILBOSS 1970 USA CANADA / MPH

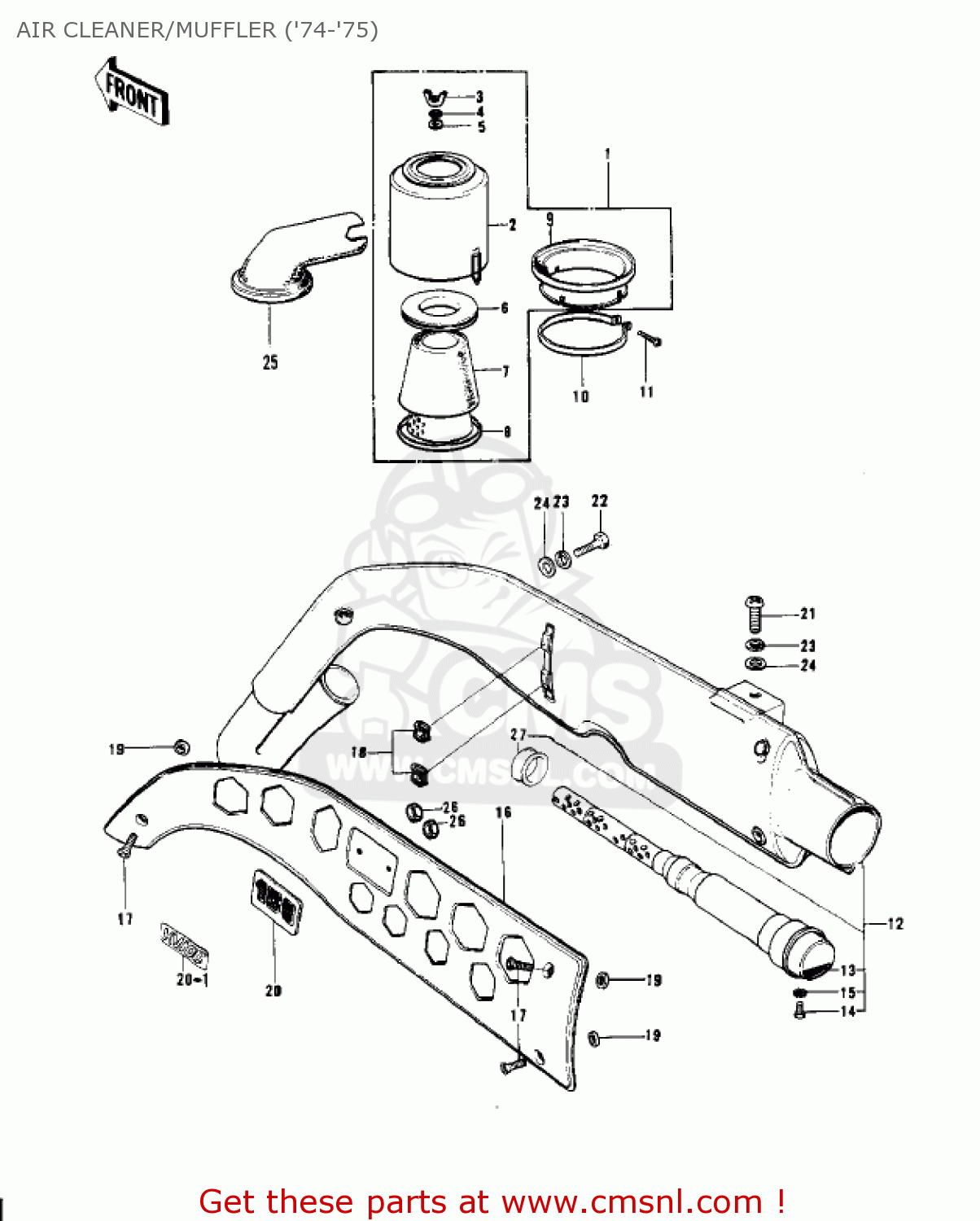

Air cleaner/muffler ('74-'75) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

AIR CLEANER/MUFFLER ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

AIR CLEANER/MUFFLER ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

1101005979
ref: 1

AIR CLEANER ASSY,CR

€ 55.50

2

1101101079
ref: 2

AIR CLEANER BODY,CHROME

€ 108.50

3

92015030
ref: 3

NUT-WING,6MM

€ 1.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

411B0600
ref: 5

WASHER-PLAIN,6MM

€ 0.50

6

11012031
ref: 6

AIR CLEANER CAP

€ 38.00

7

11013037
ref: 7

AIR CLEANER ELEMENT

€ 22.00

8

11014008
ref: 8

AIR CLEANER HOLDER

€ 66.00

9

11012013
ref: 9

CAP,AIR FILTER

€ 16.00

10

92037018
ref: 10

CLAMP-AIR CLEANER

€ 3.50

11

220B0625
ref: 11

SCREW-PAN HEAD,6X25

€ 1.50

12

1800110421
ref: 12

MUFFLER ASSEMBLY,FLAT BLACK

€ 545.50

13

18033078
ref: 13

BAFFLE TUBE

€ 169.50

14

112G0610
ref: 14

BOLT,6X10

€ 0.50

15

464H0600
ref: 15

WASHER-LOCK,6MM

€ 0.50

16

18057046
ref: 16
G4TR-D/E

MUFFLER COVER

€ 117.00

16

18057046
ref: 16
KV100-A7

MUFFLER COVER

€ 117.00

17

221E0610
ref: 17

SCREW-CNTSNK HD,6X10

€ 2.50

18

18065007
ref: 18

INSULATOR,HEAT

€ 3.00

19

18065001
ref: 19

INSULATOR

€ 1.50

20

56018161
ref: 20
G4TR-D/E

MUFFLER COVER EMBLEM

€ 36.50

20-1

560181109
ref: 20-1
KV100-A7

OIL TANK MARK

€ 8.50

21

220B0816
ref: 21

SCREW-PAN HEAD,8X16

€ 2.50

22

115G0816
ref: 22
G4TR-D/E

BOLT-HEX,HEAD 8X16

€ 0.50

22

115G0818
ref: 22
KV100-A7

BOLT SMALL-UPSET

€ 2.50

23

461F0800
ref: 23
G4TR-D/E

WASHER-SPRING,8MM

€ 0.50

23

461F0800
ref: 23
KV100-A7

WASHER-SPRING,8MM

€ 0.50

24

411B0800
ref: 24
G4TR-D/E

WASHER-PLAIN,8MM

€ 0.50

24

410B0800
ref: 24
KV100-A7

WASHER-PLAIN-SMALL,8M

€ 0.50

25

14073003
ref: 25

AIR DUCT

€ 30.00

26

92018004
ref: 26

NUT,SPEED,5MM

€ 2.50

27

92092011
ref: 27

BUSHING,RUBBER

€ 18.50
