ENGINE COVERS ('74-'75)

G4TR TRAILBOSS 1970 USA CANADA / MPH

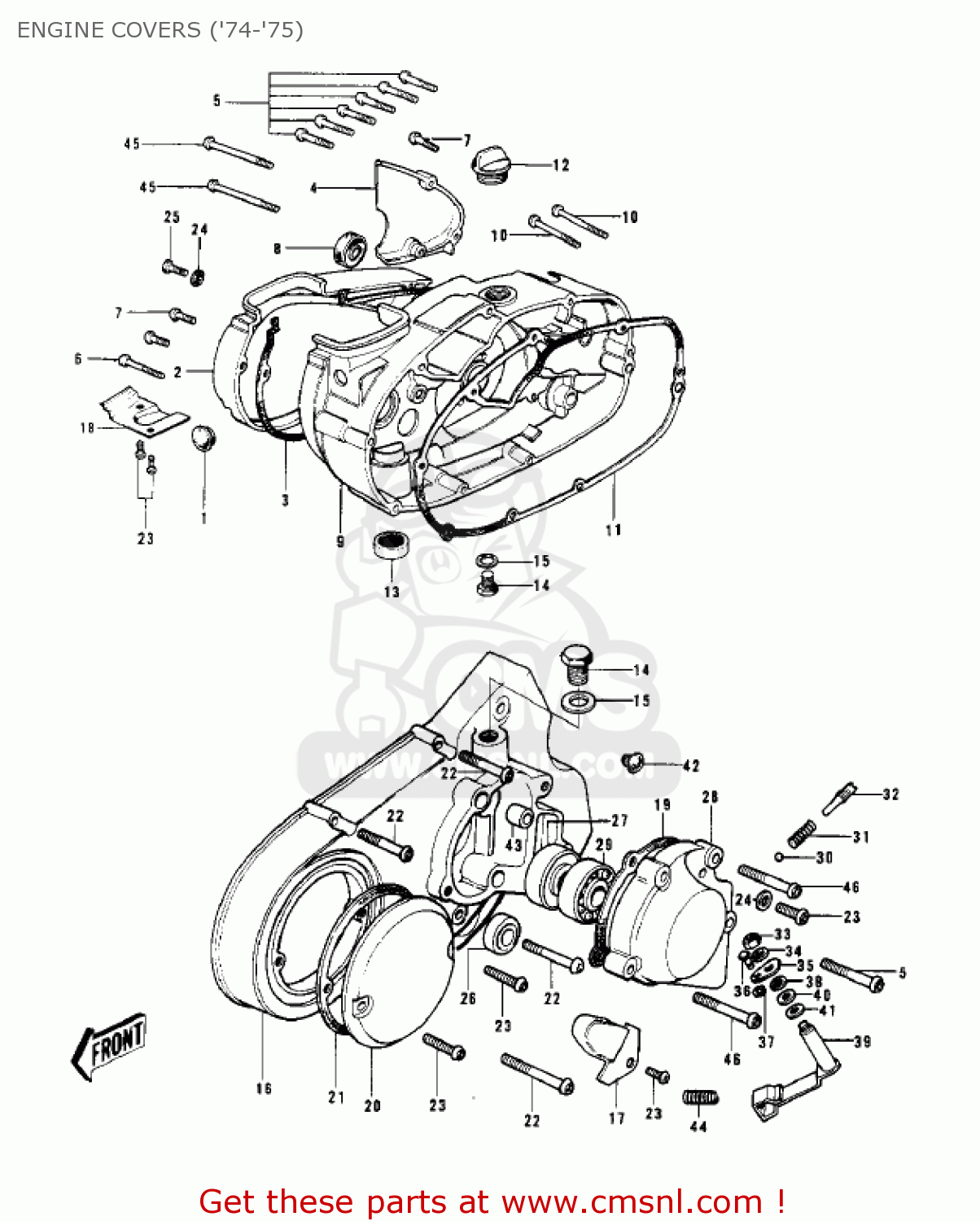

Engine covers ('74-'75) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

ENGINE COVERS ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH
ENGINE COVERS ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH
ENGINE COVERS ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH
prices are in EUR
ref
part #
description
quantity
1
14039001
ref: 1
CAP,RUBBER
14039001
€ 3.00
2
140301005
ref: 2
COVER,CARB,BARREL
€ 59.50
3
110601201
ref: 3
GASKET,CARBURETOR COV (NAS)
110601201
€ 20.00
4
1403005080
ref: 4
COVER,OIL PUMP,BUF
1403005080
€ 20.50
5
220B0630
ref: 5
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
6
220B0635
ref: 6
SCREW-PAN HEAD,6X35
220B0635
€ 1.00
7
220B0620
ref: 7
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
8
653B142507
ref: 8
OIL SEAL,TB14257
653B142507
€ 14.50
9
140321017
ref: 9
COVER,R.H ENGINE
140321017
€ 103.00
10
220B0645
ref: 10
SCREW-PAN HEAD,6X45
220B0645
€ 2.50
11
110601198
ref: 11
GASKET,CLUTCH COVER (NAS)
110601198
€ 17.00
12
16115018
ref: 12
PLUG,OIL FILLER
16115018
€ 7.00
13
16116006
ref: 13
PLUG,25X12
16116006
€ 10.50
14
92067001
ref: 14
PLUG-OIL DRAIN
92067001
€ 3.00
15
92065058
ref: 15
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
16
1403106380
ref: 16
ENGINE COVER,LH,BUFF
1403106380
€ 163.00
17
14036004
ref: 17
ENGINE COVER CAP,LH
€ 18.50
18
140251137
ref: 18
COVER,DRAIN PLUG
€ 7.00
19
14051002
ref: 19
ENGINE COVER CAP GASKET,LH (MCA)
14051002
€ 17.00
20
1402700779
ref: 20
COVER-BRK POINT,CR
1402700779
€ 16.00
21
14050002
ref: 21
GASKET-BREAKER COVER (MCA)
14050002
€ 9.50
22
220B0665
ref: 22
SCREW-PAN HEAD,6X65
220B0665
€ 2.50
23
220B0612
ref: 23
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
24
92022077
ref: 24
WASHER,6.1X12X1
92022077
€ 0.50
25
92001121
ref: 25
BOLT,HEX HEAD,6X14
92001121
€ 2.50
26
920491249
ref: 26
SEAL-OIL
920491249
€ 6.50
27
92050012
ref: 27
OIL SEAL,SC38556
92050012
€ 36.00
28
140751001
ref: 28
INCLUDES REF NO'S 29
ENGINE COVER CAP ASSEMBLY,BUFF
€ 87.00
28
140751001
ref: 28
ENGINE COVER CAP ASSEMBLY,BUFF
€ 87.00
29
601B6005
ref: 29
BEARING-BALL,#6005C3
601B6005
€ 11.50
30
600A0800
ref: 30
BALL-STEEL,1/4
600A0800
€ 0.50
31
92081075
ref: 31
SPRING
92081075
€ 11.00
32
92066015
ref: 32
ENGINE COVER CAP PLUG,LH
92066015
€ 11.00
33
312B0600
ref: 33
NUT,6MM
312B0600
€ 0.50
34
461F0600
ref: 34
WASHER-SPRING,6MM
461F0600
€ 0.50
35
13204002A
ref: 35
LEVER,A
13204002A
€ 30.00
36
13197001
ref: 36
RETAINER SHIFT ROD
13197001
€ 23.50
37
482K4000
ref: 37
CIRCLIP-TYPE-E,4MM
482K4000
€ 0.50
38
13211001
ref: 38
WASHER,WAVE
13211001
€ 8.00
39
13234002
ref: 39
SHIFT LEVER SHAFT ASSEMBLY
13234002
€ 64.50
40
92054015
ref: 40
OIL SEAL,VC8144
92054015
€ 4.50
41
410B0800
ref: 41
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
42
92074019
ref: 42
PLUG-RUBBER
92074019
€ 2.50
43
920431037
ref: 43
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
44
92081099
ref: 44
CHANGE CABLE SPRING
92081099
€ 8.00
45
220B0675
ref: 45
SCREW,PAN HEAD,6X75
220B0675
€ 3.00
46
220B0640
ref: 46
SCREW-PAN HEAD,6X40
220B0640
€ 2.00
