TAILLIGHT G4TR/A ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

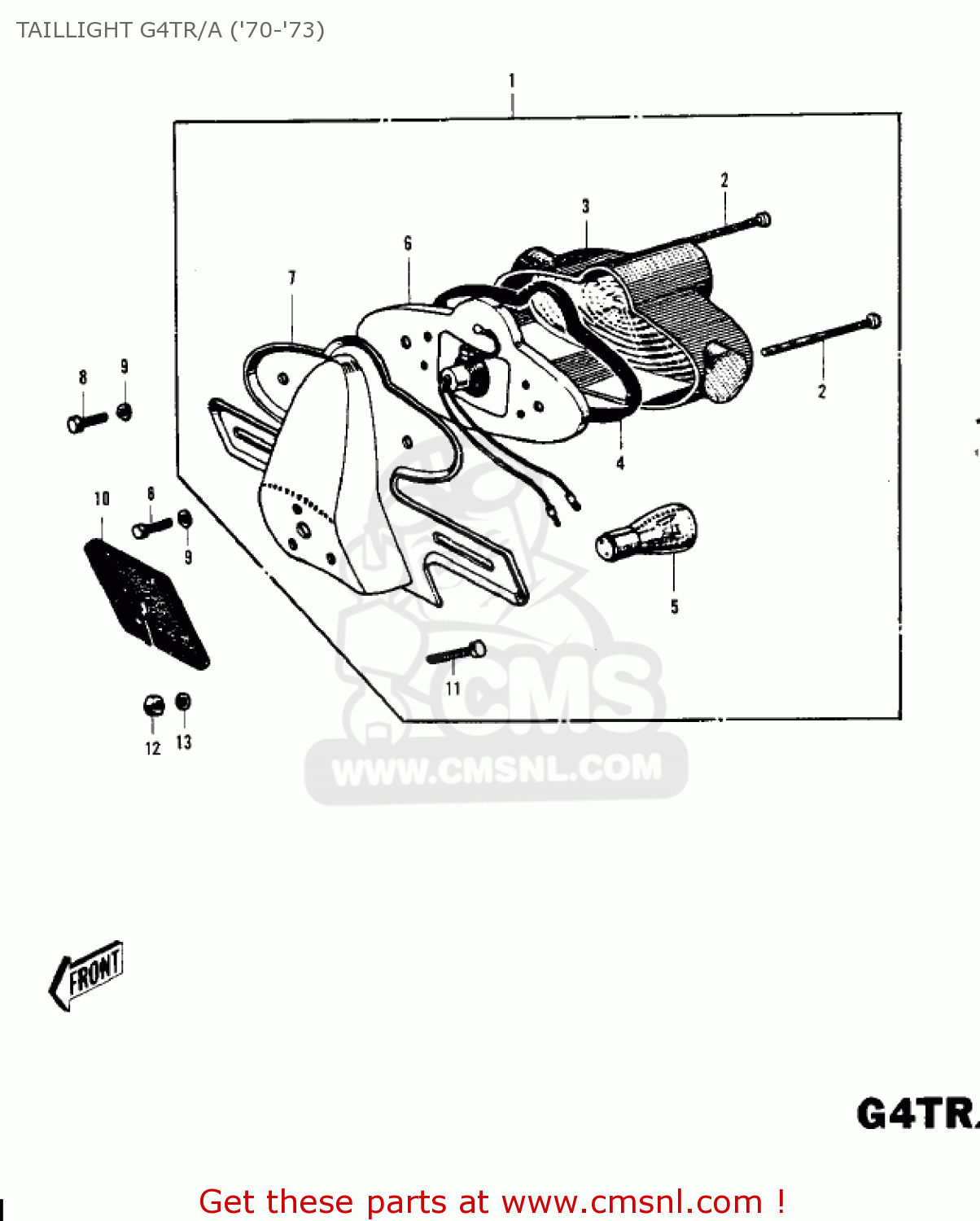

Taillight g4tr/a ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

2302401921
ref: 1
NO LONGER AVAILABLE

LAMP ASSY-TAIL,BLACK

€ 99.00

220E0450
ref: 2

SCREW-PAN HEAD,4X50

€ 3.00

23026010
ref: 3

LENS,TAIL LAMP

€ 64.50

23028008
ref: 4

GASKET-TAIL LAMP (NAS)

€ 4.00

92069023
ref: 5

BULB 6V 3/21CP

€ 4.00

23027009
ref: 6

SOCKET-TAIL LAMP

€ 18.00

2303600710
ref: 7

BKT-LICENSE PLT,BLACK

€ 33.00

23036002
ref: 7

BKT-LICENSE PLT

€ 25.50

110B0510
ref: 8

BOLT-HEX HEAD,5X10

€ 0.50

461F0500
ref: 9

WASHER-SPRING,5MM

€ 0.50

35039005
ref: 10

DAMPER,TAIL LAMP

€ 6.50

112G0630
ref: 11

BOLT-UPSET

€ 1.00

312B0600
ref: 12

NUT,6MM

€ 0.50

92022125
ref: 13

WASHER,6.5X20X1.6

€ 1.00
