CRANKCASE ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

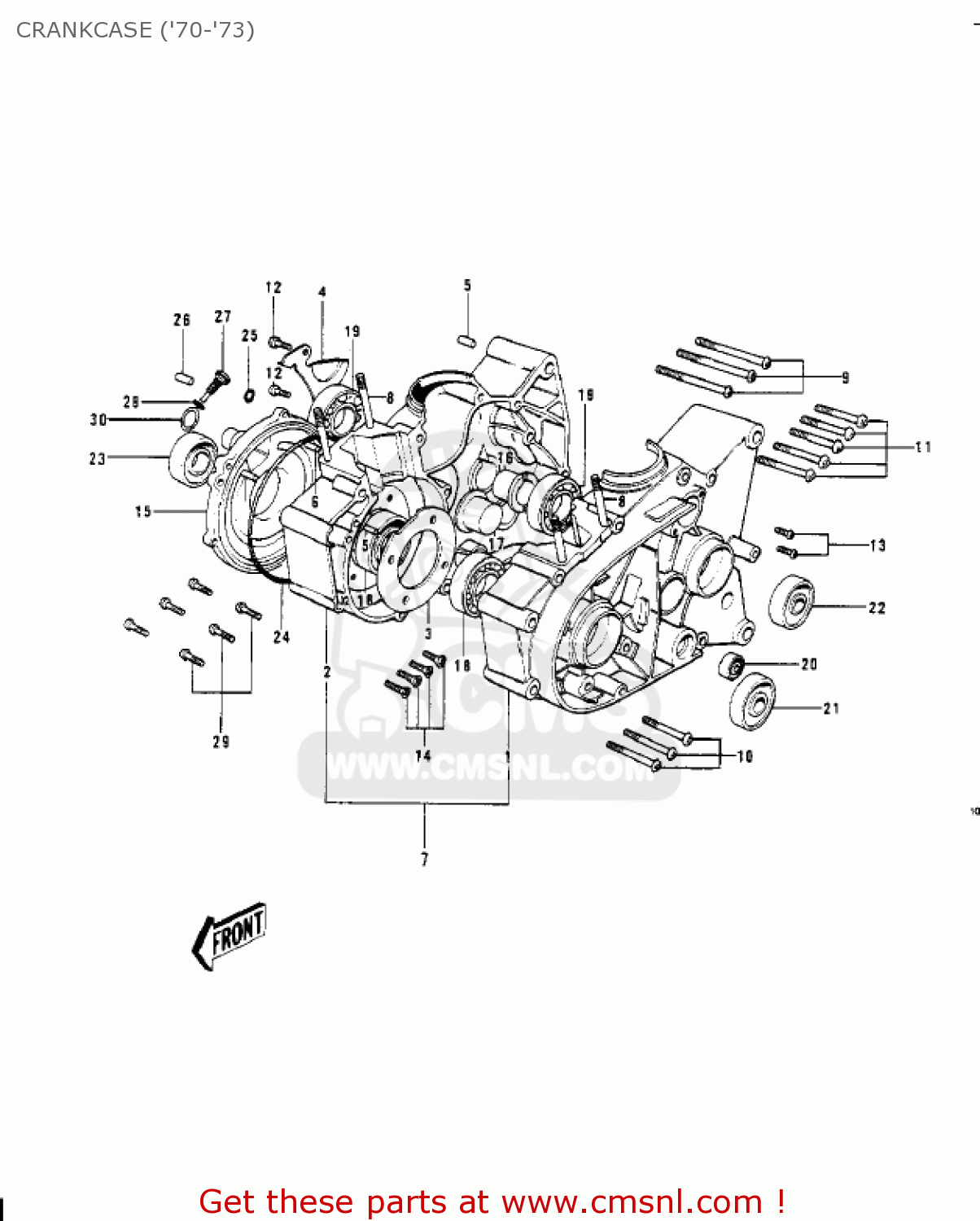

Crankcase ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

CRANKCASE ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

CRANKCASE ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

14002084
ref: 1

CRANKCASE,LH

€ 305.50

2

14003039
ref: 2

CRANKCASE,RH

€ 375.50

3

14014017
ref: 3

PLATE-POSITION

€ 3.50

4

14014008
ref: 4

PLATE-POSITION

€ 4.00

5

551A0816
ref: 5

PIN-DOWEL,8X16

€ 0.50

6

610A0512
ref: 6

ROLLER,5X12

€ 3.00

7

14001044
ref: 7

CRANKCASE SET

€ 615.00

8

172G08115
ref: 8

STUD,8X115

€ 8.00

9

220B0665
ref: 9

SCREW-PAN HEAD,6X65

€ 2.50

10

220B0660
ref: 10

SCREW-PAN HEAD,6X60

€ 2.50

11

220B0640
ref: 11

SCREW-PAN HEAD,6X40

€ 2.00

12

220B0625
ref: 12

SCREW-PAN HEAD,6X25

€ 1.50

13

220B0612
ref: 13

SCREW-PAN HEAD,6X12

€ 1.00

14

221B0616
ref: 14

SCREW-CNTSNK HD,6X16

€ 0.50

15

14019032
ref: 15

COVER,ROTARY DISC VAL

€ 70.50

16

92028069
ref: 16

BUSH-OUTPUT SHAFT

€ 25.00

17

92028025
ref: 17

BUSHING,L=23.5

€ 28.00

18

601B6204
ref: 18

BEARING-BALL,#6204C3

€ 8.00

19

601B6005
ref: 19

BEARING-BALL,#6005C3

€ 11.50

20

92049004
ref: 20

OIL SEAL SB12205

€ 6.00

21

920491240
ref: 21

SEAL-OIL

€ 10.50

22

92050032
ref: 22

OIL SEAL,SC32435.5

€ 38.00

23

920491250
ref: 23

SEAL-OIL

€ 12.00

24

92055010
ref: 24

RING-O,100MM

€ 6.00

25

92055029
ref: 25

RING-O,7.8X3.5

€ 2.50

26

92042017
ref: 26

PIN,DOWEL,8X16

€ 4.00

27

92062004
ref: 27

NOZZLE-OIL INJECTION

€ 7.00

28

92055011
ref: 28

'O' RING 5MM

€ 4.00

29

220B0620
ref: 29

SCREW-PAN HEAD,6X20

€ 2.50

30

670B3026
ref: 30

O RING,26MM

€ 3.00
