REAR HUB/BRAKE/CHAIN ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

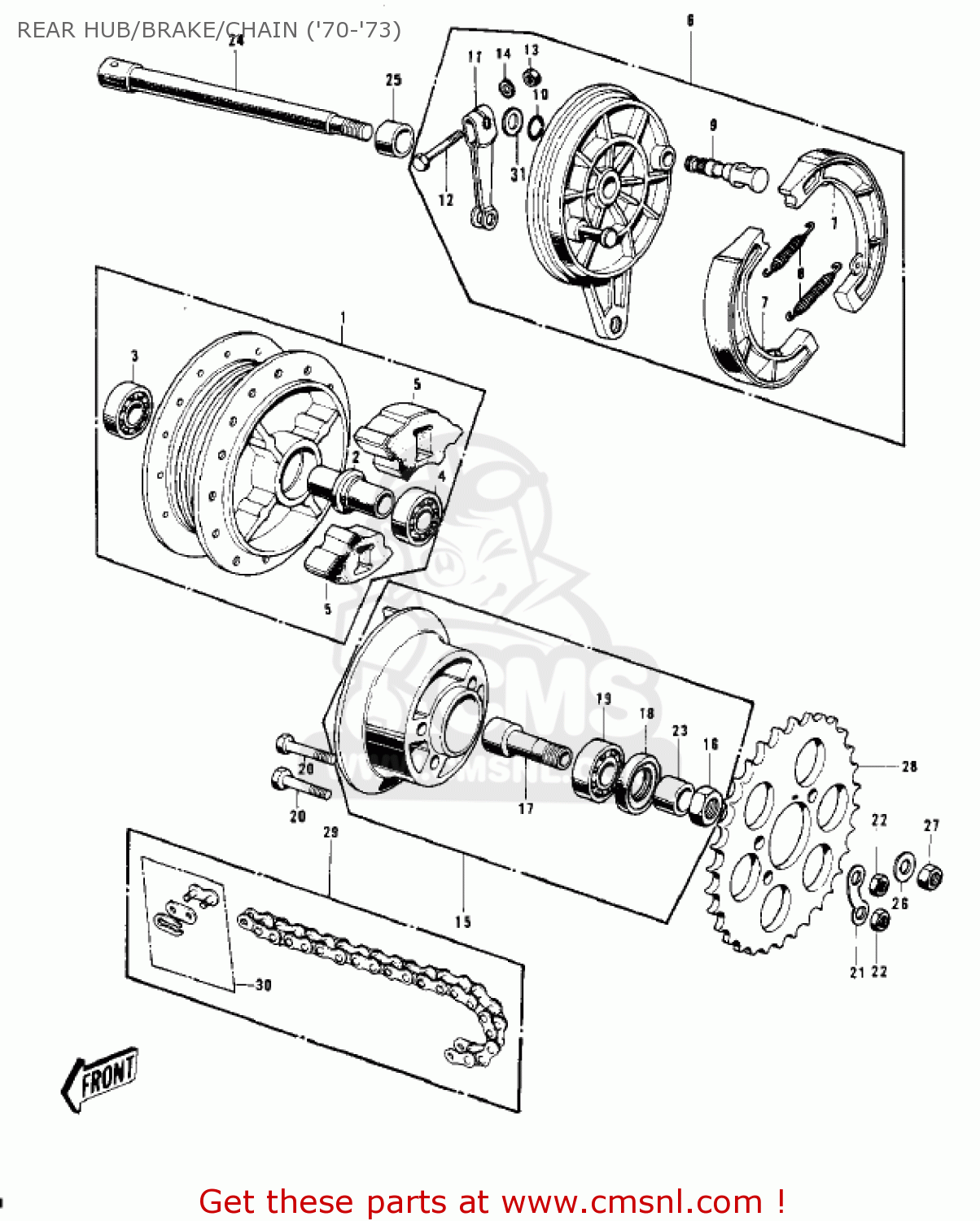

Rear hub/brake/chain ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

REAR HUB/BRAKE/CHAIN ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

REAR HUB/BRAKE/CHAIN ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

4200503180
ref: 1

DRUM ASY,RR BR,BUFF

€ 263.50

2

42010005
ref: 2

COLLAR,L=58

€ 8.50

3

601B6301Z
ref: 3

BEARING-BALL,#6301ZC3

€ 15.00

4

601B6201
ref: 4

BEARING-BALL,#6201C3

€ 7.00

5

42014016
ref: 5

DAMPER,RR HUB SHOCK

€ 12.50

6

42006014
ref: 6
G4TR/A/B

PANEL ASSY-REAR BRAKE

€ 47.50

6

4200602721
ref: 6
G4TR-C

REAR BRAKE PANEL ASSEMBLY,FLAT BLACK

€ 162.50

7

410481085
ref: 7

SHOE-BRAKE (NAS)

€ 13.00

8

920811766
ref: 8

SPRING,BRAKE SHOE

€ 5.50

9

41050018
ref: 9

CAM-BRAKE

€ 18.00

10

92055004
ref: 10

RING-O,BRAKE CAM

€ 3.00

11

41053002
ref: 11
G4TR/A/B

LEVER-BRAKE CAM

€ 11.50

11

42029022
ref: 11
G4TR-C

REAR BRAKE CAM LEVER

€ 31.50

12

112G0630
ref: 12

BOLT-UPSET

€ 1.00

13

311B0600
ref: 13

NUT,6MM

€ 0.50

14

410B0600
ref: 14

WASHER-PLAIN-SMALL,6M

€ 0.50

15

42033011
ref: 15

COUPLING-ASSY,RR HUB

€ 87.50

16

42045004
ref: 16

NUT,16MM

€ 4.00

17

42036002
ref: 17

SLEEVE,RR HUB COUPLIN

€ 30.00

18

92052003
ref: 18

OIL SEAL-COUPLING

€ 8.50

19

601B6203
ref: 19

BEARING-BALL,#6203C3

€ 10.50

20

92001082
ref: 20

BOLT-REAR SPROCKET

€ 2.00

21

92088011
ref: 21

WASHER,LOCK

€ 3.00

22

315B1000
ref: 22

NUT,10MM

€ 0.50

23

42037003
ref: 23

COLLAR,17X25X12.5

€ 7.50

24

410681109
ref: 24

AXLE,12X215

€ 26.00

25

42032002
ref: 25

COLLAR,12.2X22X30.5

€ 9.00

26

410B1200
ref: 26

WASHER-PLAIN-SMALL,12

€ 0.50

27

42045005
ref: 27

NUT,10MM

€ 5.00

28

42041076
ref: 28
STD

REAR SPROCKET 42T

€ 28.00

28

420411095
ref: 28

SPROCKET-HUB,40T

€ 28.50

29

92057042
ref: 29

CHAIN ASSEMBLY DRIVE,110L

€ 0.00

30

920581015
ref: 30

JOINT-CHAIN,EK428SH

€ 3.50

31

41052001
ref: 31

WASHER-BRAKE CAM SHT

€ 1.00
