HEADLIGHT G4TR-D/E ('74-'75)

G4TR TRAILBOSS 1970 USA CANADA / MPH

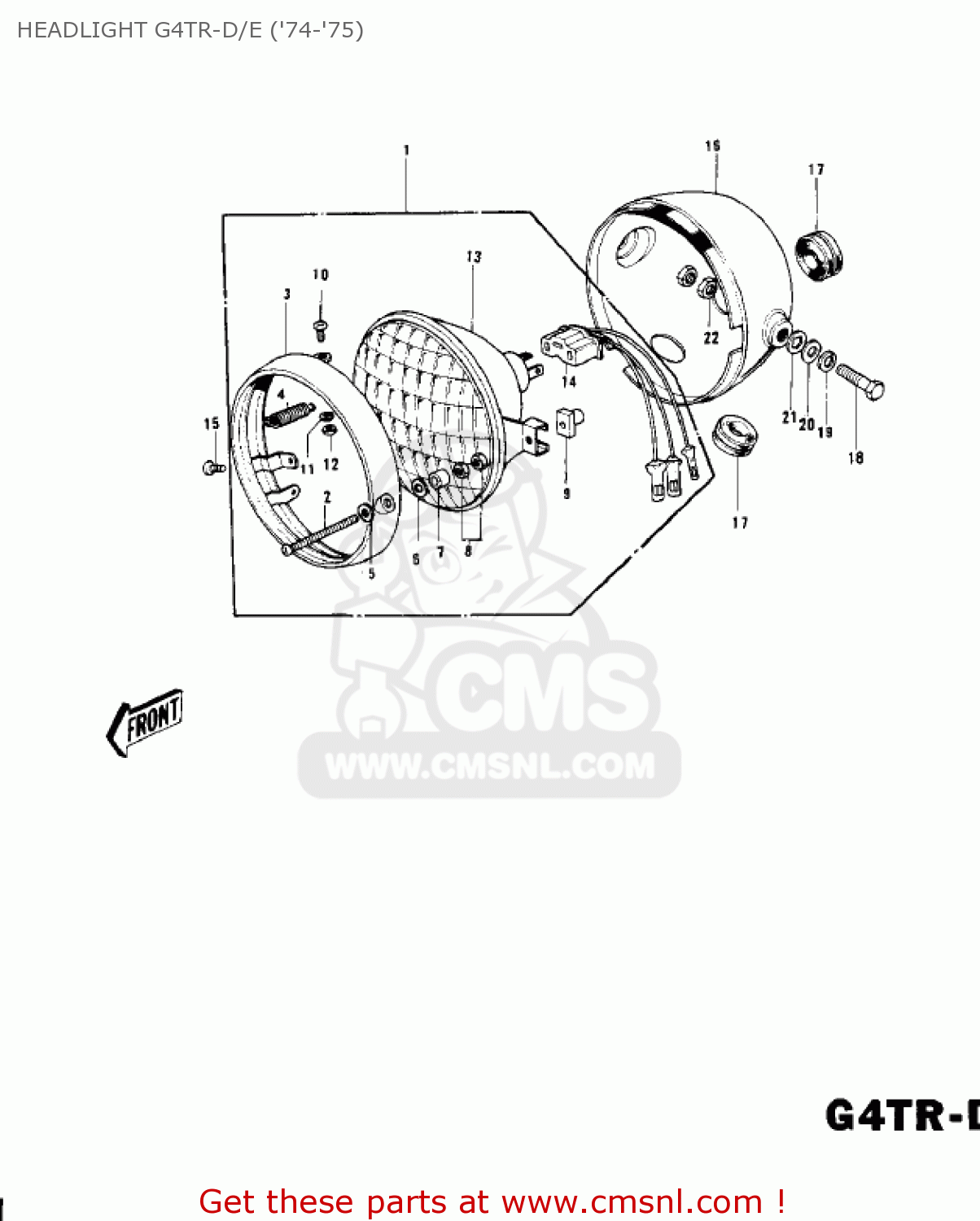

Headlight g4tr-d/e ('74-'75) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

HEADLIGHT G4TR-D/E ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

HEADLIGHT G4TR-D/E ('74-'75) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

23003009
ref: 1

LAMP UNIT-HEAD

€ 103.50

2

23019013
ref: 2

SCREW-ADJUST

€ 1.00

3

23006020
ref: 3

RIM-HEAD LAMP

€ 43.00

4

23014008
ref: 4

SPRING-LENS FITTING

€ 1.00

5

23021008
ref: 5

WASHER,FOCUS ADJUSTIN

€ 2.00

6

23021007
ref: 6

WASHER-ADJUST

€ 1.00

7

23058001
ref: 7

WASHER-FITTING

€ 1.00

8

23020013
ref: 8

NUT-ADJUST

€ 1.50

9

23020012
ref: 9

NUT,ADJUSTING

€ 2.50

10

23019014
ref: 10

SCREW-FITTING

€ 0.50

11

461F0400
ref: 11

WASHER-SPRING,4MM

€ 0.50

12

311B0400
ref: 12

NUT-HEX,4MM

€ 0.50

13

23007023
ref: 13

SEALED BEAM UNIT

€ 205.00

14

23008044
ref: 14

SOCKET-ASSY,HEAD LAMP

€ 15.00

15

222E0508A
ref: 15

SCREW-OVL CNTSNK,5X8

€ 2.00

16

2300505121
ref: 16

HEADLAMP BODY,FLAT BLACK

€ 64.50

17

23023011
ref: 17

GROMMET

€ 4.50

18

92007045
ref: 18

BOLT, HEX HEAD, 10X25

€ 6.00

19

461F1000
ref: 19

WASHER-SPRING,10MM

€ 0.50

20

411B1000
ref: 20

WASHER-PLAIN,10MM

€ 0.50

21

463H1000
ref: 21

WASHER-LOCK,10MM

€ 0.50

22

92016027
ref: 22

NUT,10MM

€ 2.00
