CARBURETOR ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

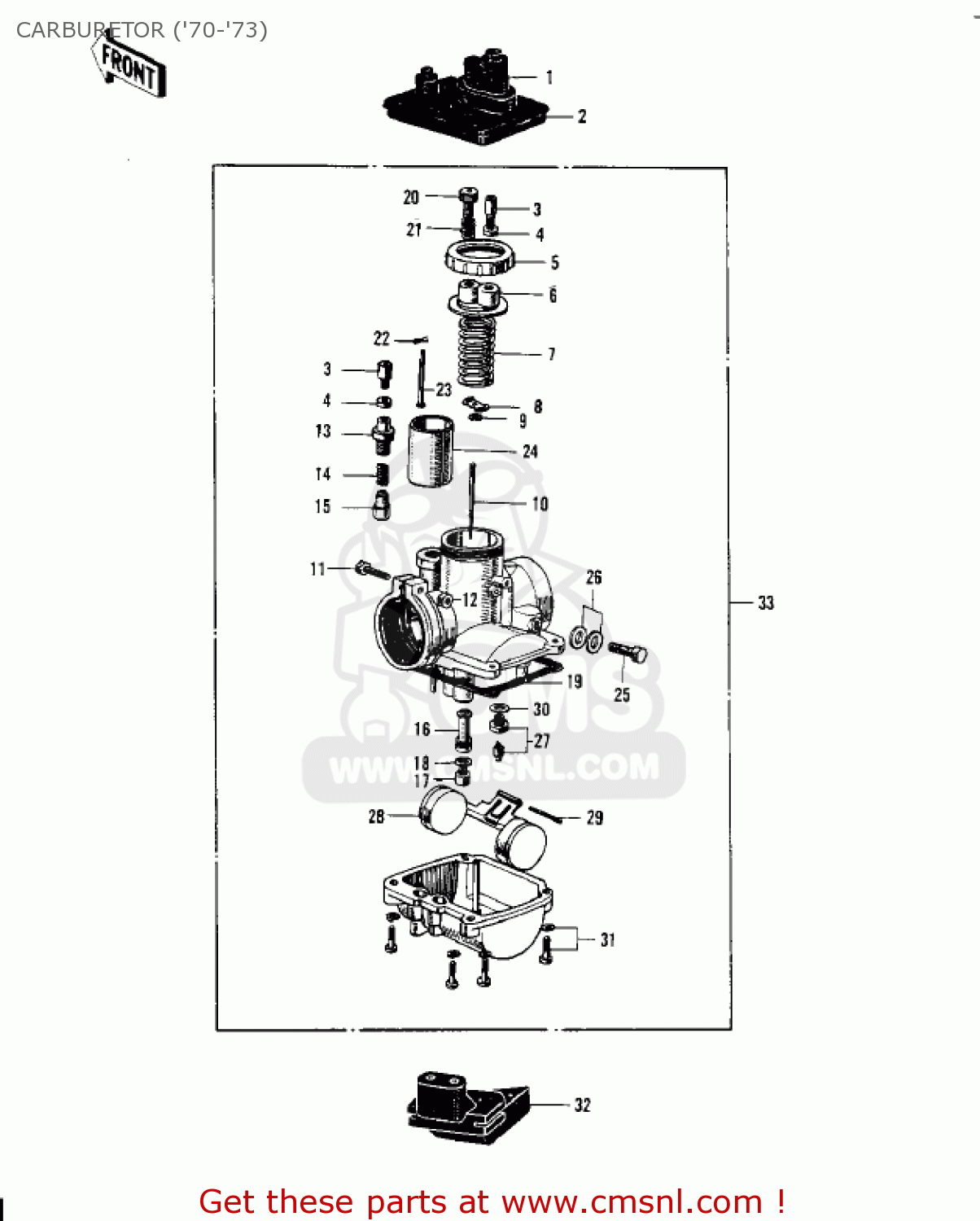

Carburetor ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

CARBURETOR ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH
CARBURETOR ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH
CARBURETOR ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH
prices are in EUR
ref
part #
description
quantity
1
14038006
ref: 1
G4TR/A
BOOT,CARBURETOR CAP
14038006
€ 5.50
2
14038007
ref: 2
G4TR/A
CAP-CARBURETOR
14038007
€ 4.50
3
16002017
ref: 3
ADJUSTER-CABLE
16002017
€ 8.00
4
16003004
ref: 4
NUT-CABLE ADJUST LOCK
16003004
€ 4.50
5
16004010
ref: 5
CAP-CHAMBER,MIXING
16004010
€ 13.50
6
16005005
ref: 6
TOP-CHAMBER,MIXING
16005005
€ 12.50
7
16006013
ref: 7
SPRING-THROTTLE VALVE
16006013
€ 10.00
8
16007002
ref: 8
SEAT-SPRING,THROTTLE
16007002
€ 8.50
9
16008010
ref: 9
CLAMP,E-TYPE
16008010
€ 5.00
10
16009026
ref: 10
JET,NEEDLE,#5J-7
16009026
€ 64.00
11
16010004
ref: 11
SCREW-CLAMP
16010004
€ 3.50
12
311B0600
ref: 12
NUT,6MM
311B0600
€ 0.50
13
16012004
ref: 13
CAP-STARTER PLUNGER
16012004
€ 7.50
14
16013003
ref: 14
SPRING-STARTER PLUNG
16013003
€ 4.00
15
16016002
ref: 15
PLUNGER,STARTER
16016002
€ 20.00
16
16017040
ref: 16
G4TR/A/B
JET,NEEDLE,#E-6
16017040
€ 30.00
16
16017065
ref: 16
G4TR-C
JET,NEEDLE,#E-6
16017065
€ 30.00
17
92063082
ref: 17
STD G4TR/A/B
MAIN JET,#180A
92063082
€ 6.00
17
92063073
ref: 17
STD G4TR-C
JET-MAIN,#107.5R
92063073
€ 9.50
17
92063018
ref: 17
MAIN JET,#160A
92063018
€ 9.50
17
92063081
ref: 17
G4TR/A/B
MAIN JET,#170A
92063081
€ 10.00
17
92063083
ref: 17
G4TR/A/B
JET,MAIN,#190M
92063083
€ 15.50
17
92063084
ref: 17
JET,MAIN,#200M
92063084
€ 15.50
17
920631028
ref: 17
JET-MAIN,#A102.5R
920631028
€ 10.00
17
920631042
ref: 17
G4TR-C
JET-MAIN,#A105R
920631042
€ 10.50
17
920631038
ref: 17
G4TR-C
JET-MAIN,#A110
920631038
€ 10.50
17
92063075
ref: 17
MAIN JET,#112.5R
92063075
€ 10.00
18
16034001
ref: 18
WASHER-MAIN JET
16034001
€ 2.50
19
16019012
ref: 19
GASKET-FLOAT CHAMBER (NAS)
16019012
€ 13.00
20
16021002
ref: 20
SCREW-THROTTLE STOP
16021002
€ 12.00
21
16022005
ref: 21
SPRING-THR STOP SCREW
16022005
€ 5.50
22
550D1210
ref: 22
PIN-COTTER,1.2X10
550D1210
€ 1.50
23
16024012
ref: 23
ROD,THROTTLE VALVE ST
16024012
€ 5.50
24
16025054
ref: 24
G4TR/A/B
VALVE-THROTTLE,CA2.5
16025054
€ 67.00
24
16025054
ref: 24
G4TR-C
VALVE-THROTTLE,CA2.5
16025054
€ 67.00
25
92001014
ref: 25
BOLT-BANJO
92001014
€ 11.50
26
751P0800
ref: 26
GASKET,8MM
751P0800
€ 1.00
27
16030001
ref: 27
VALVE-FLOAT,#2.0
16030001
€ 40.50
28
16031015
ref: 28
FLOAT
16031015
€ 40.50
29
16032003
ref: 29
FLOAT PIN
16032003
€ 4.00
30
16029002
ref: 30
WASHER-VALVE SEAT
16029002
€ 2.50
31
16033012
ref: 31
SCREW-FLOAT CHAMBER
16033012
€ 1.00
32
16136001
ref: 32
GROMMET-OVERFLOW PIPE
16136001
€ 2.00
33
16001160
ref: 33
G4TR/A/B
CARBURETOR ASSEMBLY
€ 298.50
33
16001160
ref: 33
G4TR-C
CARBURETOR ASSEMBLY
€ 298.50
