IGNITION/GENERATOR ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

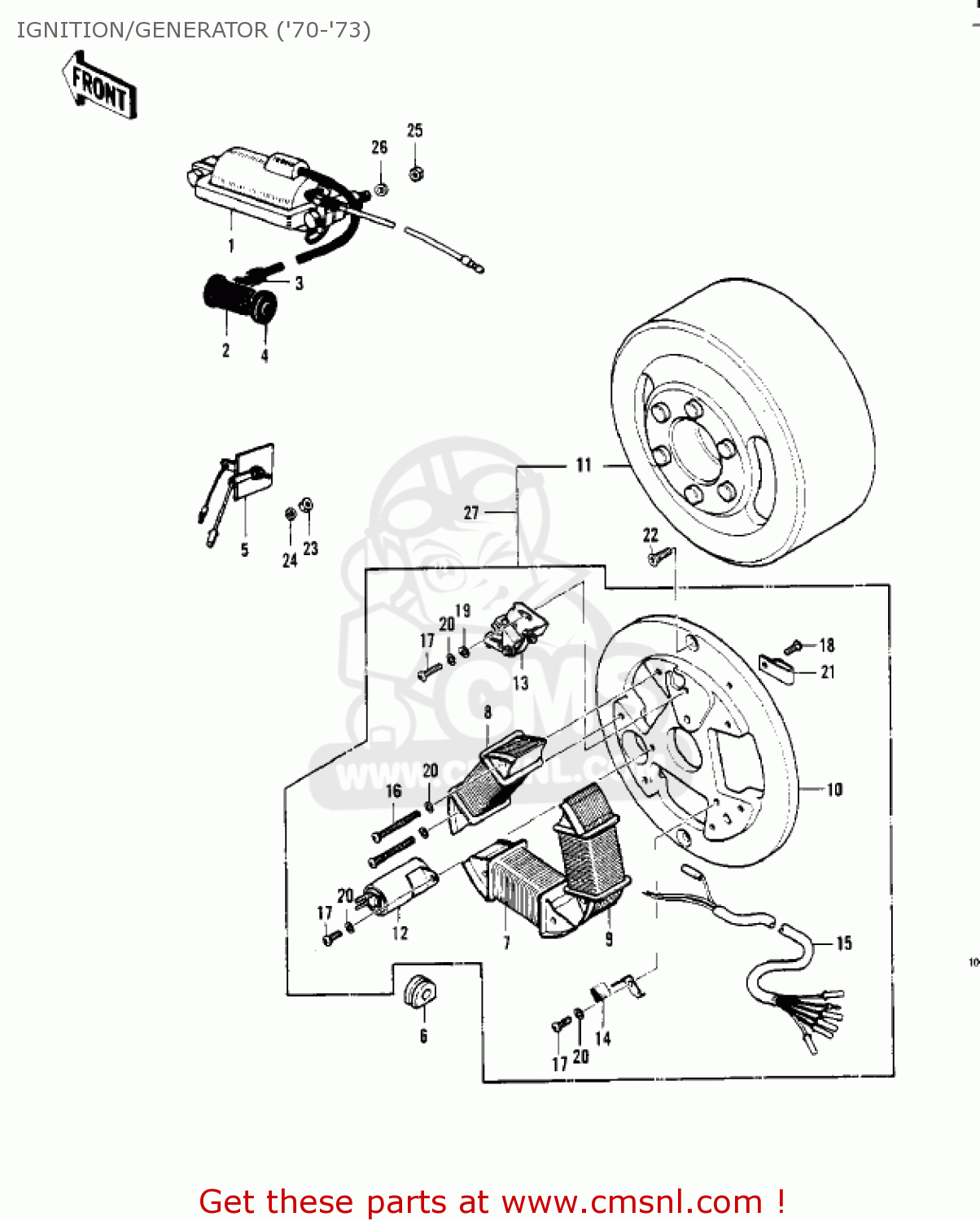

Ignition/generator ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

IGNITION/GENERATOR ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

IGNITION/GENERATOR ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

211211047
ref: 1

COIL-IGNITION

€ 115.50

2

21130016
ref: 2

CAP-SPARK PLUG

€ 16.50

2

21130016
ref: 2

CAP-SPARK PLUG

€ 16.50

3

21131004
ref: 3

GROMMET,PLUG CAP

€ 7.00

4

21132005
ref: 4

GROMMET,SPARK PLUG CP

€ 2.50

5

210615001
ref: 5

RECTIFIER

€ 29.00

6

21017002
ref: 6

GROMMET

€ 3.00

7

21047010
ref: 7
USE FOR 21002-018/02

COIL-LIGHTING

€ 54.00

8

21047011
ref: 8
USE FOR 21002-018/02

COIL,LIGHTING,B

€ 41.50

9

21049006
ref: 9
USE FOR 21002-018/02

COIL-EXCITING

€ 94.00

10

210481002
ref: 10

PLATE-COIL,MAGNETO

€ 46.50

11

210021055
ref: 11
NO LONGER AVAILABLE

MAGNETO

€ 481.00

12

21013006
ref: 12

CONDENSER

€ 21.00

13

21008006
ref: 13

BREAKER ASSY-CONTACT

€ 33.50

14

21019005
ref: 14

BRUSH,OIL

€ 3.00

15

21029014
ref: 15
USE FOR 21002-018/02

MAGENTO WIRING HARNESS

€ 35.00

16

220E0430
ref: 16

SCREW-PAN-CROS

€ 2.50

17

220B0406
ref: 17

SCREW-PAN-CROS,4X6

€ 2.50

18

220B0412
ref: 18

SCREW-PAN CROS 4X12

€ 0.50

19

410B0400
ref: 19

WASHER-PLAIN-SMALL,4M

€ 0.50

20

461F0400
ref: 20

WASHER-SPRING,4MM

€ 0.50

21

21037002
ref: 21

CLAMP,WIRING HARNESS

€ 2.50

22

221B0614
ref: 22

SCREW-CNTSNK HD,6X14

€ 2.50

23

311B0500
ref: 23

NUT-HEX

€ 0.50

24

461F0500
ref: 24

WASHER-SPRING,5MM

€ 0.50

25

311B0600
ref: 25

NUT,6MM

€ 0.50

26

461F0600
ref: 26

WASHER-SPRING,6MM

€ 0.50

27

21002018
ref: 27

MAGNETO FLYWHEEL

€ 253.00

27

21002027
ref: 27
NO LONGER AVAILABLE

MAGNETO ASSEMBLY

€ 256.00

27

210021055
ref: 27
NO LONGER AVAILABLE

MAGNETO

€ 481.00

27

210021055
ref: 27

MAGNETO

€ 481.00
